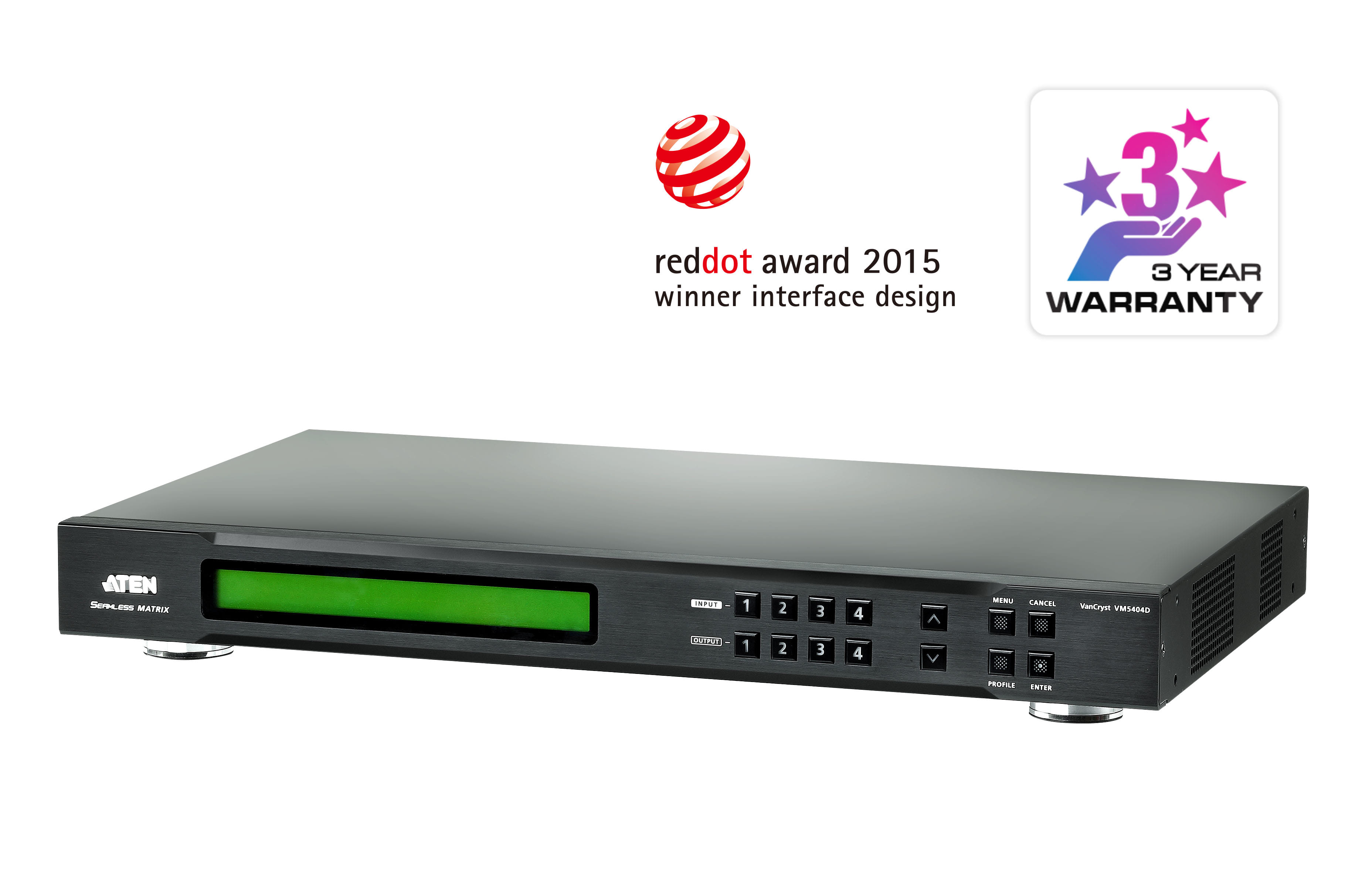

Aten 4x4 DVI Matrix Switch with Scaler
Item No:
700538
MPN:
VM5404D-AT-U
$9,999.00
Payment options
Shipping Information
- Unavailable for shipping
- This product is not currently available for purchase
Store Availability
- Unavailable at Bankstown Store
- Unavailable at Castle Hill Store
- Unavailable at Northmead Store
ATEN VM5404D AT U, Scaling matrix switcher, 6.75 Gbit/s, 225 MHz, 1920 x 1200 pixels, Black, Metal
While HDMI compliant devices are becoming more popular, the majority of traffic control centers and other large scale, centralized control rooms still rely on DVI display devices.
In order to avoid signal instability, quality deterioration and other factors associated with interface converters, ATEN created the VM5404D: A seamless matrix switch for DVI signals that offers an easy and affordable way to route any of 4 DVI video sources to any of 4 DVI displays.
The VM5404D includes seamless switching that employs an FPGA matrix architecture to ensure continuous video streaming, real time control and stable signal transmission. With a built in high performance scaler, the VM5404D easily converts various input resolutions into a array of output resolutions, giving viewers the best image quality across all displays. The switch also integrates video wall functionality with an easy to use web GUI that lets you create 8 connection profiles for convenient layout customization.
The VM5404D is the ideal solution for any control center streaming multiple sources to multiple displays.
In order to avoid signal instability, quality deterioration and other factors associated with interface converters, ATEN created the VM5404D: A seamless matrix switch for DVI signals that offers an easy and affordable way to route any of 4 DVI video sources to any of 4 DVI displays.
The VM5404D includes seamless switching that employs an FPGA matrix architecture to ensure continuous video streaming, real time control and stable signal transmission. With a built in high performance scaler, the VM5404D easily converts various input resolutions into a array of output resolutions, giving viewers the best image quality across all displays. The switch also integrates video wall functionality with an easy to use web GUI that lets you create 8 connection profiles for convenient layout customization.
The VM5404D is the ideal solution for any control center streaming multiple sources to multiple displays.
| Features | |
| Product type The sub-category of the product. | Scaling matrix switcher |
| Data transfer rate Rate at which data can be transferred. Usually expressed in units per second. May vary with network configurations. | 6.75 Gbit/s |
| Maximum pixel clock | 225 MHz |
| Maximum resolution The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. | 1920 x 1200 pixels |
| HDCP High-bandwidth Digital Content Protection (HDCP) is a form of digital copy protection to prevent copying of digital audio and video content as it travels across connections. |
 |
| HDCP version | 1.4 |
| Firmware upgradeable |
|
| EDID management |
|
| Design | |
| Housing colour The colour of the housing, which is the rigid casing that encloses and protects a piece of moving or delicate equipment. | Black |
| Housing material What the casing of the product is made of. | Metal |
| Rack mounting The type of mounting that can position devices in a shelving system (rack). |
|
| Rack capacity The spase that device fill in rack. | 1U |
| Control type The way in which the device is controlled. | Buttons |
| Remote control included Component of an electronics device, most commonly a television set, DVD player and home theater systems originally used for operating the device wirelessly from a short line-of-sight distance. |
|
| Display | |
| Built-in display A display which is part of the product, so you do not need to attach another display. |
|
| Display type Type of display (screen) e.g. LCD. | LCD |
| Ports & interfaces | |
| DVI-D ports quantity This is the amount of DVI-I interfaces. Digital Visual Interface (DVI) is a video display interface developed by the Digital Display Working Group (DDWG). The digital interface is used to connect a video source to a display device, such as a computer monitor. DVI-D means DVI digital, which means it can only support digital, but not analog. | 8 |
| DVI-D input ports | 4 |
| DVI-D output ports | 4 |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 1 |
| RS-232 ports The number of sockets (ports) for RS-232. An RS-232 serial port was once a standard feature of a personal computer, used for connections to modems, printers, mice, data storage, uninterruptible power supplies, and other peripheral devices. Now it has been largely replaced by USB and other ports. | 1 |
| Remote (IR) input | 1 |
| Power | |
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Input current | 1 A |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 50 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Logistics data | |
| Quantity per pack | 1 pc(s) |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 259.8 mm |
| Depth The distance from the front to the back of something. | 432.4 mm |
| Height The measurement of the product from head to foot or from base to top. | 44 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 3.5 kg |
| Packaging content | |
| Cables included | AC |
| Rack mount kit |
|
| Manual |
|
| Mounting brackets included |
|
| SKU | 700538 |
| MPN | VM5404D-AT-U |
| Brand | ATEN |
| Product Condition | Brand New/Unused |
| Product Use | General |
