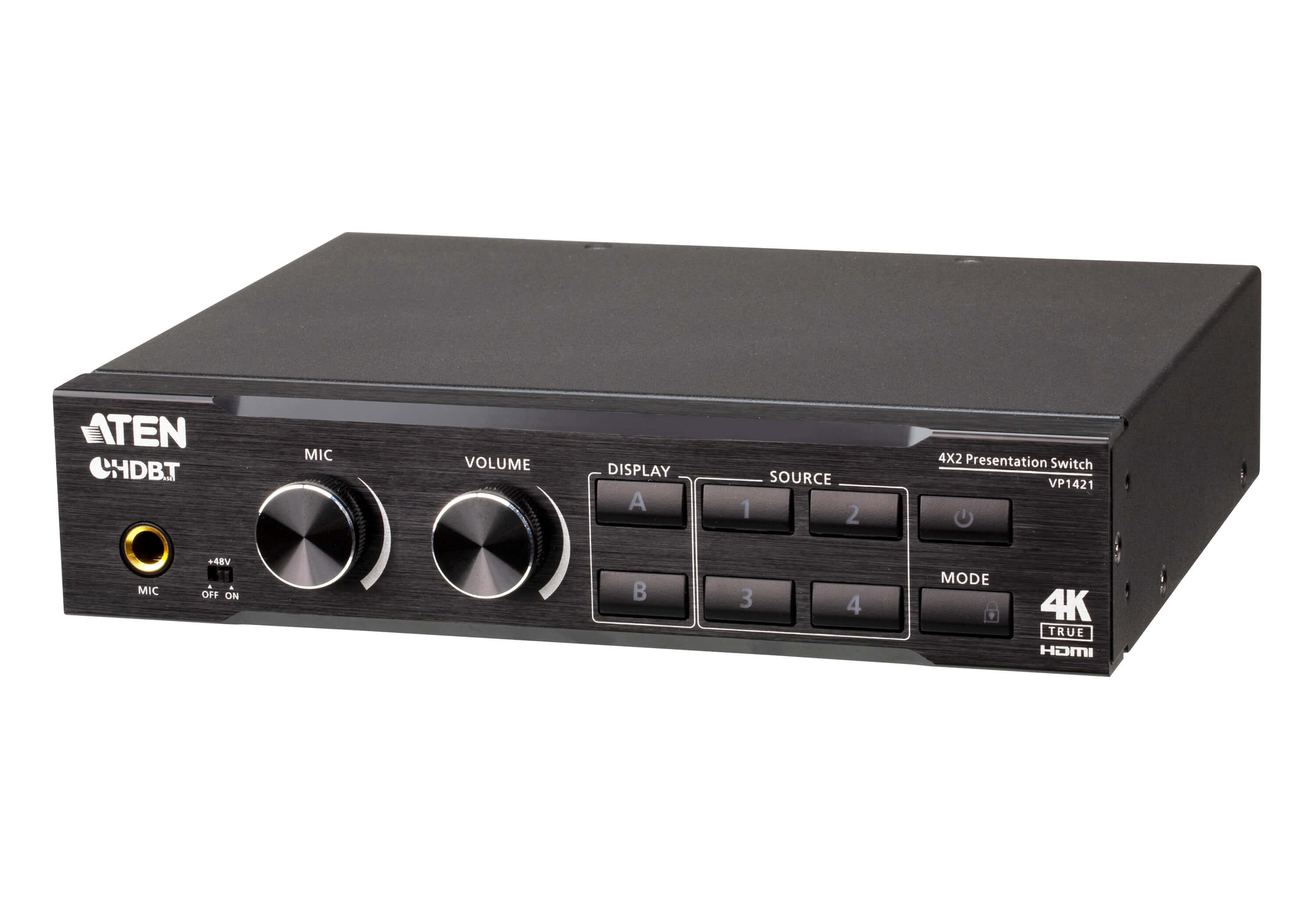

ATEN 4 x 2 True 4K Presentation Matrix Switch, Scaling matrix switcher, 4096 x 2160 pixels, Black, Metal, Buttons, Rotary, 14.93 W
The VP1421 is a multi-in-one presentation switch that integrates a video matrix, True 4K scaler, HDBaseT extender, audio DSP, and analog-to-digital converter functions into a single compact enclosure, ideal for meeting rooms and educational spaces.
True 4K, HDR Visual Clarity
Supports resolutions up to 4096 x 2160 @ 60Hz (4:4:4) and HDR to deliver vivid content in every presentation.
Smooth AV Switching Scaled to Perfection
Connect up to 4 sources (1 HDBaseT, 2 HDMI, 1 VGA), smoothly switch between them and display contents scaled perfectly to True 4K and 1080p simultaneously.
HDBaseT Extended Transmission over One Cable
Simplifies cabling and transmits AV, power, and bi-directional RS-232 and IR control signals up to 140m via Cat 6/6a or ATEN 2L-2910 Cat 6 cables (applying both HDBaseT input and output ports).
Built-in Advanced Audio DSP
Supports microphone input with selectable 48V Phantom Power and allows microphone input to be mixed with program audio and embedded into display output while automatically reducing program audio to enhance speech audibility.
Flexible Audio Embedding/De-Embedding
Supports stereo audio embedding into HDMI output or separation to Audio Line Out and Optical Audio Out. Extract HDMI and HDBaseT audio to different audio outputs as well to ease adaptation to you preferred audio setup.
Versatile Control, Streamlined Operations
Control via front-panel pushbuttons, IR remote, web-based GUI and any control interface via RS-232, Ethernet, and Contact Closure to streamline your operations.
True 4K, HDR Visual Clarity
Supports resolutions up to 4096 x 2160 @ 60Hz (4:4:4) and HDR to deliver vivid content in every presentation.
Smooth AV Switching Scaled to Perfection
Connect up to 4 sources (1 HDBaseT, 2 HDMI, 1 VGA), smoothly switch between them and display contents scaled perfectly to True 4K and 1080p simultaneously.
HDBaseT Extended Transmission over One Cable
Simplifies cabling and transmits AV, power, and bi-directional RS-232 and IR control signals up to 140m via Cat 6/6a or ATEN 2L-2910 Cat 6 cables (applying both HDBaseT input and output ports).
Built-in Advanced Audio DSP
Supports microphone input with selectable 48V Phantom Power and allows microphone input to be mixed with program audio and embedded into display output while automatically reducing program audio to enhance speech audibility.
Flexible Audio Embedding/De-Embedding
Supports stereo audio embedding into HDMI output or separation to Audio Line Out and Optical Audio Out. Extract HDMI and HDBaseT audio to different audio outputs as well to ease adaptation to you preferred audio setup.
Versatile Control, Streamlined Operations
Control via front-panel pushbuttons, IR remote, web-based GUI and any control interface via RS-232, Ethernet, and Contact Closure to streamline your operations.
| Features | |
| Product type The sub-category of the product. | Scaling matrix switcher |
| Maximum resolution The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. | 4096 x 2160 pixels |
| HDCP High-bandwidth Digital Content Protection (HDCP) is a form of digital copy protection to prevent copying of digital audio and video content as it travels across connections. |
 |
| HDCP version | 2.2 |
| 3D The device can be used with 3D technology. |
|
| High Dynamic Range (HDR) supported |
|
| Extended display identification data (EDID) |
|
| Design | |
| Housing colour The colour of the housing, which is the rigid casing that encloses and protects a piece of moving or delicate equipment. | Black |
| Housing material What the casing of the product is made of. | Metal |
| Control type The way in which the device is controlled. | Buttons, Rotary |
| On/off switch The button which is pressed to switch the device on or off. |
|
| Remote control included Component of an electronics device, most commonly a television set, DVD player and home theater systems originally used for operating the device wirelessly from a short line-of-sight distance. |
|
| Display | |
| Built-in display A display which is part of the product, so you do not need to attach another display. |
 |
| Ports & interfaces | |
| HDMI input ports quantity | 2 |
| HDMI output ports quantity | 1 |
| VGA (D-Sub) input ports Sockets in the device for VGA (D-Sub) inputs, which are sockets with 15 holes. The 15-pin VGA connector is found on many video cards, computer monitors, and high definition television sets. | 1 |
| RJ-45 input ports | 1 |
| RJ-45 output ports | 1 |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 1 |
| Remote (IR) output | 1 |
| Remote (IR) input | 1 |
| DC-in jack The socket/plug where the DC electricity supply connects to the device. |
|
| Power | |
| Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. | 14.93 W |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Storage relative humidity (H-H) | 0 - 80% |
| Heat dissipation The heat generated by the power supply. | 110 BTU/h |
| Logistics data | |
| Products per master (outer) case | 3 pc(s) |
| Master (outer) case gross weight | 7.25 kg |
| Master (outer) case length | 427 mm |
| Master (outer) case width | 370 mm |
| Master (outer) case height | 232 mm |
| Master (outer) case net weight | 4.74 kg |
| Technical details | |
| Harmonized System (HS) code | 85299097 |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 170.1 mm |
| Depth The distance from the front to the back of something. | 200 mm |
| Height The measurement of the product from head to foot or from base to top. | 44 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 1.58 kg |
| Package width The distance from one side of the packaging to the other. | 207 mm |
| Package depth The distance from the front to the back of the packaging. | 414 mm |
| Package height The distance from the top to the bottom of the packaging. | 117 mm |
| Package weight Weight of the packaged product. | 2.2 kg |
| Packaging content | |
| Manual |
|
| AC adapter included |
|
| IR receiver included |
|
| SKU | 656222 |
| MPN | VP1421-AT-U |
| Brand | ATEN |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.aten.com/ |
