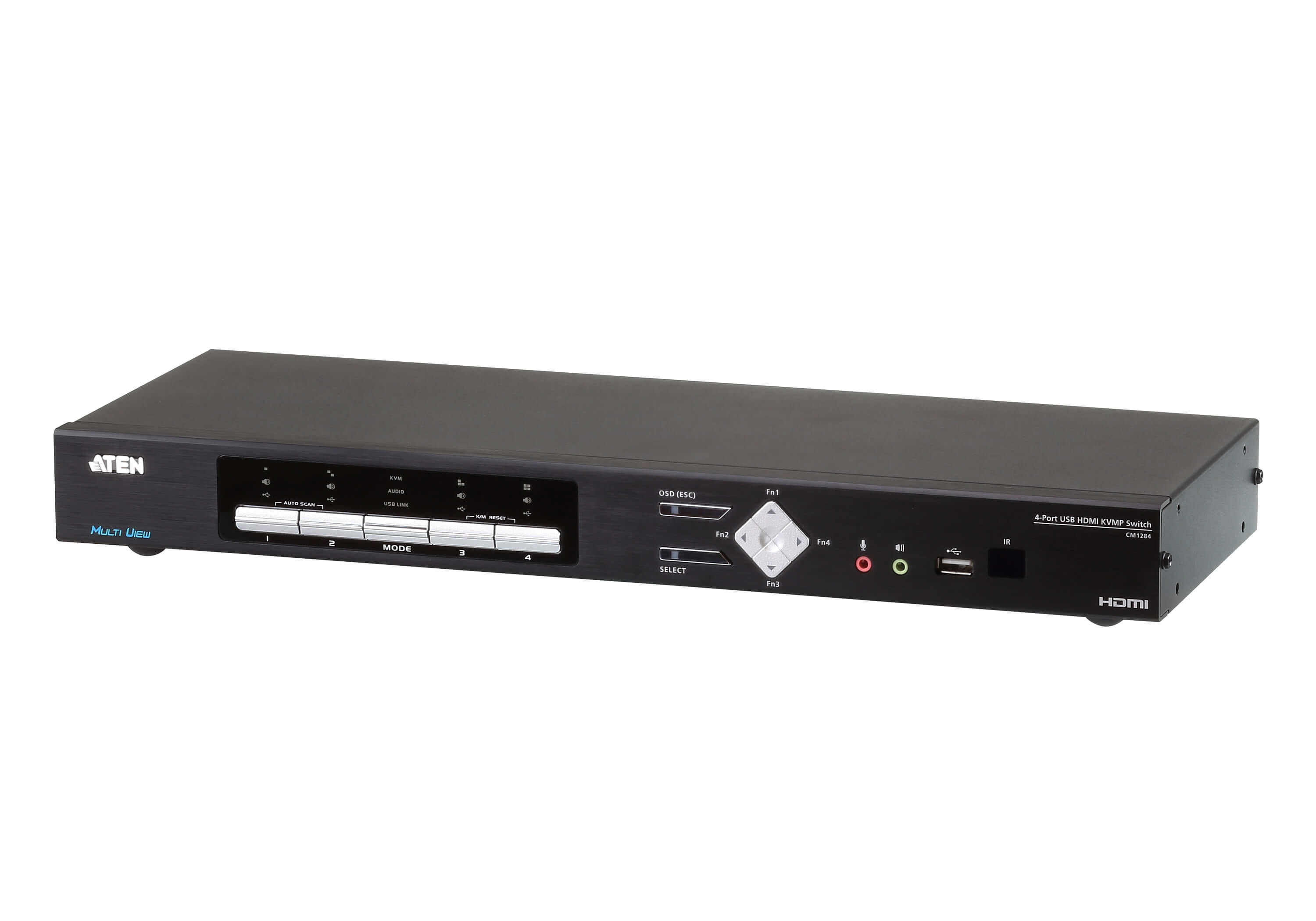

Aten CM1284, 4096 x 2160 pixels, 4K Ultra HD, Rack mounting, 16 W, 1U, Black
TEN CM1284 4-Port USB HDMI Multi-View KVMP Switch improves the operational efficiency of real-time monitoring. The CM1284 allows users to manage the data more efficiently by allowing multiple sources to be selected, switched, and displayed at the same time with independent keyboard and mouse control.
Advanced video support provides a better-defined HDMI connection with video resolutions up to 4K (4096 x 2160 @ 30 Hz). The CM1284 guarantees users a real-time monitoring functionality by offering dual outputs on console side. One provides the following display modes: Quad View, Picture in Picture (PiP), Picture by Picture (PbP), Picture on Picture (PoP), and the other one provides Full Screen mode. Featuring Boundless Switching, the CM1284 allows users to simply move the mouse cursor across windows to switch to other video sources. This makes it easier to instantly access and control the target computer.
Incorporating Daisy Chain Control (DCC) capability, users are allowed to control up to 3 additional CM1284 units via a single console. In addition, CM1284 can be cascaded up to 2 levels to reach the maximum of 16 video sources to be simultaneously selected, switched, and displayed with independent keyboard and mouse control.
Engineered to meet the ever-increasing demand for multi-view functionality, the CM1284 is specifically designed for where real-time monitoring is needed such as aviation industry, financial trading, and medical application.
Advanced video support provides a better-defined HDMI connection with video resolutions up to 4K (4096 x 2160 @ 30 Hz). The CM1284 guarantees users a real-time monitoring functionality by offering dual outputs on console side. One provides the following display modes: Quad View, Picture in Picture (PiP), Picture by Picture (PbP), Picture on Picture (PoP), and the other one provides Full Screen mode. Featuring Boundless Switching, the CM1284 allows users to simply move the mouse cursor across windows to switch to other video sources. This makes it easier to instantly access and control the target computer.
Incorporating Daisy Chain Control (DCC) capability, users are allowed to control up to 3 additional CM1284 units via a single console. In addition, CM1284 can be cascaded up to 2 levels to reach the maximum of 16 video sources to be simultaneously selected, switched, and displayed with independent keyboard and mouse control.
Engineered to meet the ever-increasing demand for multi-view functionality, the CM1284 is specifically designed for where real-time monitoring is needed such as aviation industry, financial trading, and medical application.
| Ports & interfaces | |
| Number of computers controlled The amount of computers controlled by this device. | 4 |
| Keyboard port type The type of socket in the device for connecting a keyboard e.g. USB. | USB |
| Mouse port type | USB |
| Video port type The type of socket in the device for connecting a video e.g. SCART. | HDMI |
| HDMI ports quantity The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards. | 6 |
| HDCP High-bandwidth Digital Content Protection (HDCP) is a form of digital copy protection to prevent copying of digital audio and video content as it travels across connections. |
 |
| USB 2.0 Type-B ports quantity | 4 |
| Console ports | 3.5mm headphone, HDMI, RJ–45, USB A |
| Console USB ports quantity | 2 |
| USB hub |
|
| USB 2.0 Type-A hub ports quantity | 2 |
| USB connector type The type of USB connector/port that this product has. | USB Type-A, USB Type-B |
| Audio connections Cables used to connect audio inputs or audio outputs to another device e.g, audio amplifier. |
|
| Headphone outputs Number of sockets /ports where headphones are connected. | 6 |
| Number of microphone inputs | 6 |
| Network | |
| Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable. |
|
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 2 |
| Performance | |
| HD type Type of supported High Definition (e.g. Full HD, 4K Ultra HD). | 4K Ultra HD |
| Maximum resolution The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. | 4096 x 2160 pixels |
| Video bandwidth | 30 Hz |
| Scan interval | 5,10,15,30,60,90 s |
| Hot-Plug support Device has hot-plug capability, which means that user can replace system components without shutting down the system. |
|
| Daisy chain |
|
| Firmware upgradeable |
|
| Design | |
| Rack mounting The type of mounting that can position devices in a shelving system (rack). |
|
| Rack capacity The spase that device fill in rack. | 1U |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Housing material What the casing of the product is made of. | Metal |
| Cascadable |
|
| LED indicators |
|
| Push button |
|
| Hot keys |
|
| Display | |
| Built-in display A display which is part of the product, so you do not need to attach another display. |
 |
| On Screen Display (OSD) |
|
| Power | |
| Power source What is providing power for the product e.g. mains electricity. | AC |
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 110 - 220 V |
| AC input frequency | 50/60 Hz |
| Input current | 1 A |
| Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. | 16 W |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -10 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 437.2 mm |
| Depth The distance from the front to the back of something. | 164 mm |
| Height The measurement of the product from head to foot or from base to top. | 44 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 3.86 kg |
| Packaging data | |
| Package width The distance from one side of the packaging to the other. | 131 mm |
| Package depth The distance from the front to the back of the packaging. | 540 mm |
| Package height The distance from the top to the bottom of the packaging. | 233 mm |
| Package weight Weight of the packaged product. | 4.26 kg |
| Packaging content | |
| Cables included | HDMI,USB |
| Manual |
|
| AC adapter included |
|
| Rack mount kit |
|
| Logistics data | |
| Master (outer) case net weight | 11.6 kg |
| Master (outer) case width | 420 mm |
| Master (outer) case length | 555 mm |
| Master (outer) case height | 258 mm |
| Master (outer) case gross weight | 13.8 kg |
| Products per master (outer) case | 3 pc(s) |
| Technical details | |
| Sustainability certificates | RoHS |
| SKU | 446765 |
| MPN | CM1284-AT-U |
| Brand | ATEN |
