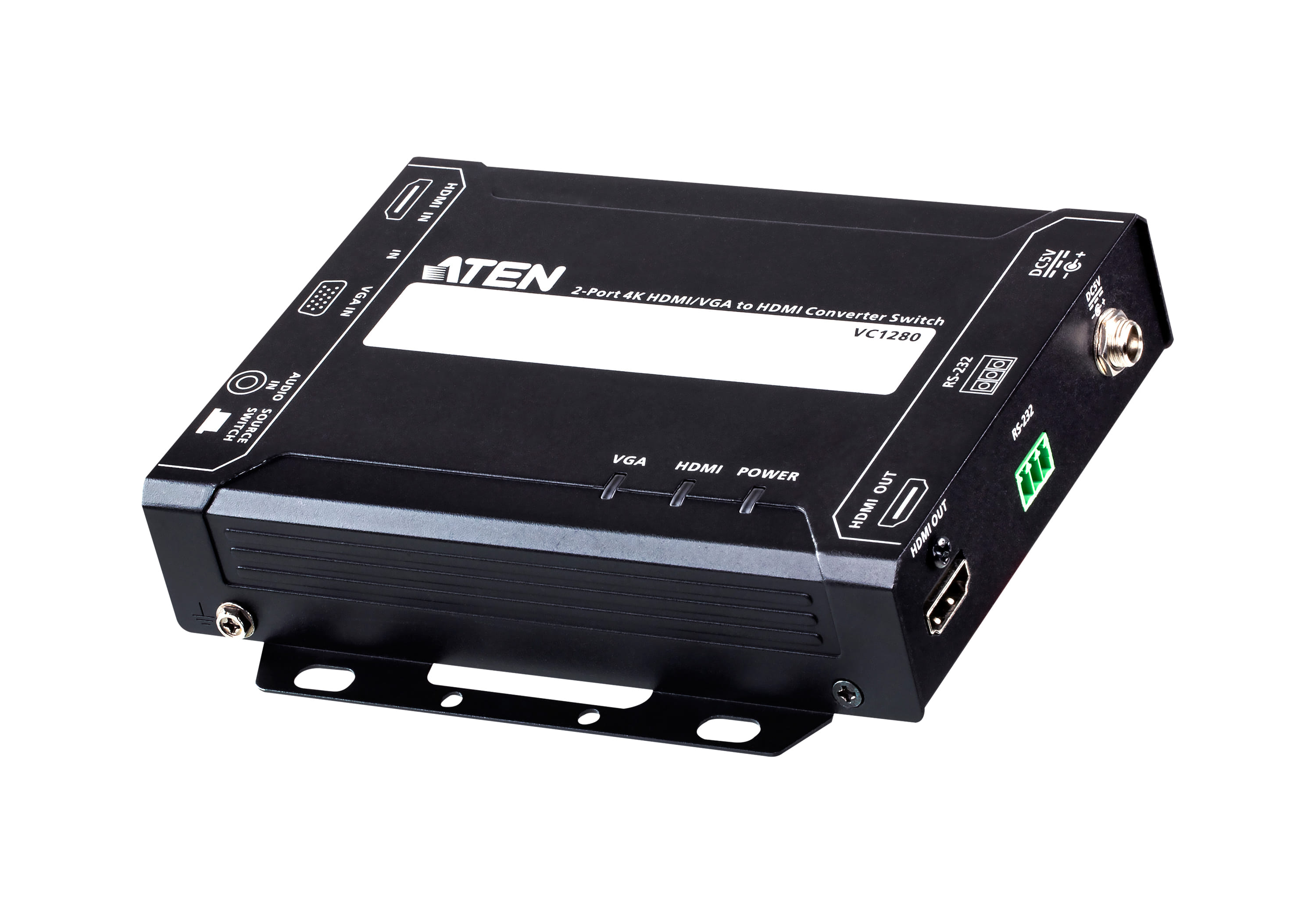

Aten Professional Converter Switch 2 Port 4K HDMI/VGA to HDMI Converter Switch, supports control via RS232 terminal or auto to new source
The ATEN VC1280 is a user-friendly device that simply connects HDMI and VGA sources to one HDMI display or projector. Apart from being compliant with HDCP 1.4, the VC1280 also supports HDMI 1.4 including 3D, Deep Color and 4K (3840 X 2160@30 Hz). In addition, the VC1280 features built-in VGA conversion, which allows you to transmit VGA signals to HDMI output without using extra adapters or scalers.
The VC1280 offers 3 source switching modes " HDMI, VGA, and AUTO, it allows you to switch rapidly and intuitively via a pushbutton for real-time use. When the VC1280 operates on the AUTO input mode, it transmits the first detected input to the HDMI display, and automatically switches to a newly plugged-in source when it detects the signals.
Without any software or driver installation required, the VC1280 is a handy and easy-to-use multi-input A/V switch. It is ideal for user that needs automatic and quick switching to adopt. With the VC1280, you can effortlessly accelerate instant collaboration and work efficiency with co-workers.
Supports Auto Switch " the VC1280 automatically switches to a newly plugged-in source
Connects two sources (HDMI/VGA) to one HDMI display
Converts VGA signals to HDMI output
Easily switches sources among 3 modes (HDMI/VGA/AUTO) via a pushbutton
HDMI 1.4 (3D, Deep Color, 4K); HDCP 1.4 compatible
Superior video quality " up to 4K (3840 x 2160 @ 30Hz)
RS-232 Channel Transmission " allows you to connect to serial terminals or serial devices for firmware upgrade
Supports Consumer Electronic Control (CEC)
Plug-and-play; no software or driver installation required
Quality and durable metal enclosure
The VC1280 offers 3 source switching modes " HDMI, VGA, and AUTO, it allows you to switch rapidly and intuitively via a pushbutton for real-time use. When the VC1280 operates on the AUTO input mode, it transmits the first detected input to the HDMI display, and automatically switches to a newly plugged-in source when it detects the signals.
Without any software or driver installation required, the VC1280 is a handy and easy-to-use multi-input A/V switch. It is ideal for user that needs automatic and quick switching to adopt. With the VC1280, you can effortlessly accelerate instant collaboration and work efficiency with co-workers.
Supports Auto Switch " the VC1280 automatically switches to a newly plugged-in source
Connects two sources (HDMI/VGA) to one HDMI display
Converts VGA signals to HDMI output
Easily switches sources among 3 modes (HDMI/VGA/AUTO) via a pushbutton
HDMI 1.4 (3D, Deep Color, 4K); HDCP 1.4 compatible
Superior video quality " up to 4K (3840 x 2160 @ 30Hz)
RS-232 Channel Transmission " allows you to connect to serial terminals or serial devices for firmware upgrade
Supports Consumer Electronic Control (CEC)
Plug-and-play; no software or driver installation required
Quality and durable metal enclosure
| Features | |
| LED indicators | Power |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Housing material What the casing of the product is made of. | Metal |
| Video | |
| Maximum video resolution This is the maximum resolution of video images. Resolution is a measure of the degree of detail visible. | 3840 x 2160 pixels |
| Video resolutions The amount of detail that can be seen in the video image. | 1920 x 1200,3840 x 2160 pixels |
| HDCP High-bandwidth Digital Content Protection (HDCP) is a form of digital copy protection to prevent copying of digital audio and video content as it travels across connections. |
 |
| Ports & interfaces | |
| Output interface The ports (sockets) where the device is connected via connectors and cables to external devices. | HDMI |
| Video in | HDMI, VGA |
| 3.5 mm connector |
|
| DC-in jack The socket/plug where the DC electricity supply connects to the device. |
|
| Power | |
| Input voltage The voltage (V) which is required to power the product. | 5 V |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 123 mm |
| Depth The distance from the front to the back of something. | 136 mm |
| Height The measurement of the product from head to foot or from base to top. | 30 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 520 g |
| Packaging data | |
| Power supply included There is a power supply with this product. |
|
| Quantity The number of products there are. | 1 |
| Package width The distance from one side of the packaging to the other. | 59 mm |
| Package depth The distance from the front to the back of the packaging. | 239 mm |
| Package height The distance from the top to the bottom of the packaging. | 160 mm |
| Package weight Weight of the packaged product. | 704 g |
| Logistics data | |
| Master (outer) case net weight | 5.2 kg |
| Harmonized System (HS) code | 85176990 |
| Master (outer) case width | 315 mm |
| Master (outer) case length | 490 mm |
| Master (outer) case height | 178 mm |
| Master (outer) case gross weight | 7.48 kg |
| Products per master (outer) case | 10 pc(s) |
| SKU | 646366 |
| MPN | VC1280-AT-U |
| Brand | ATEN |
| Product Condition | Brand New/Unused |
| Adapter Type | HDMI Adapter |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.aten.com/ |
