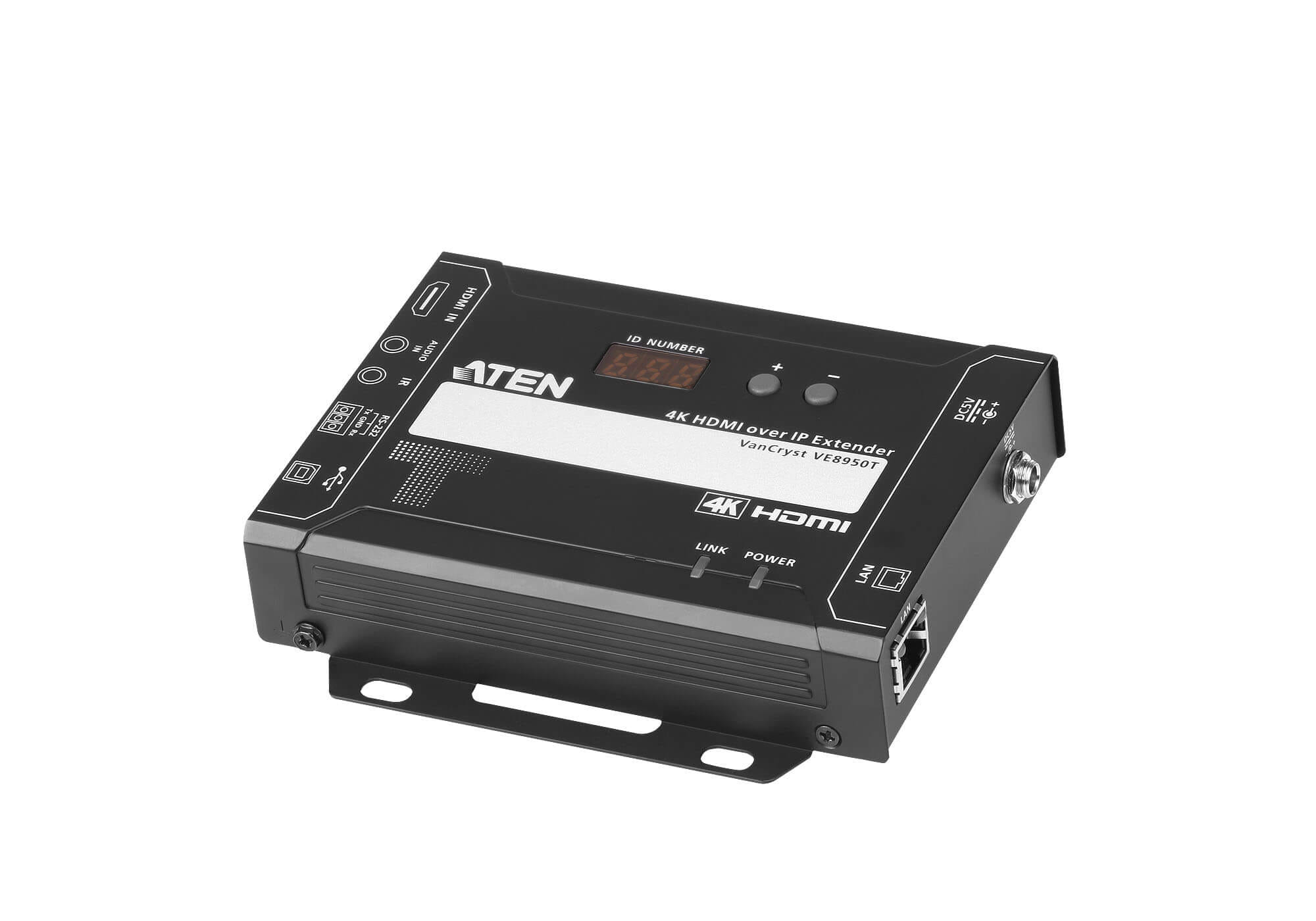

Aten 4K HDMI over IP Extender Transmitter
- Extends AV connections from a simple point-to-point to a multi-point to multi-point setup via LAN
- Delivers visually lossless high-quality video up to 4K @ 60 Hz 4:2:0 and 4K @ 30 Hz 4:4:4
- Effortlessly switches via top panel pushbuttons
- USB Connectivity - USB port (USB 2.0) allows for connection of devices such as keyboard, mouse, flash drive, printer, and other USB peripherals
| Features | |
| Type Characteristics of the device. | AV transmitter |
| Maximum resolution The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. | 4096 x 2160 pixels |
| Cable types supported | Cat5e, Cat6 |
| Maximum transfer distance The greatest distance over which the data/signal can be transferred. | 100 m |
| Maximum refresh rate | 60 Hz |
| Extended display identification data (EDID) |
 |
| LED indicators |
|
| Supported video modes The video modes that can be displayed by the device. | 1080p |
| Supported graphics resolutions The graphic resolutions that can be displayed by the device. The graphic resolution describes the width and height dimensions of a display, such as a computer monitor, measured in pixels. | 3840 x 2160, 4096 x 2160 |
| HDCP High-bandwidth Digital Content Protection (HDCP) is a form of digital copy protection to prevent copying of digital audio and video content as it travels across connections. |
|
| Material The material from which a thing is or can be made e.g. wood, plastic. | Metal |
| Control type The way in which the device is controlled. | Buttons |
| Baud rate | 19.2 Kbit/s |
| Impedance The effective resistance of an electric circuit or component to alternating current, arising from the combined effects of ohmic resistance and reactance. | 100 Ω |
| Daisy chain |
|
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Ports & interfaces | |
| Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless. | Wired |
| RJ-45 output ports | 1 |
| HDMI in Port (socket) for HDMI input. | 1 |
| USB ports quantity | 1 |
| USB version Universal Serial Bus (USB) is an industry standard developed in the mid-1990s that defines the interface used for connection, communication and power supply between computers and electronic devices. Every new version - for example 1.1, 2.0, 3.0 - is much faster than the previous one. | 2.0 |
| USB connector type The type of USB connector/port that this product has. | USB Type-B |
| Audio input The type of audio input that the device requires, and the connection needed. | 1 |
| Remote (IR) input | 1 |
| DC-in jack The socket/plug where the DC electricity supply connects to the device. |
|
| Power | |
| Operating voltage (transmitter) | 5 V |
| Power consumption (TX) | 3.08 W |
| External power adapter |
|
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Storage relative humidity (H-H) | 0 - 80% |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 136 mm |
| Depth The distance from the front to the back of something. | 101 mm |
| Height The measurement of the product from head to foot or from base to top. | 29.6 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 600 g |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Package width The distance from one side of the packaging to the other. | 59 mm |
| Package depth The distance from the front to the back of the packaging. | 239 mm |
| Package height The distance from the top to the bottom of the packaging. | 160 mm |
| Package weight Weight of the packaged product. | 790 g |
| Packaging content | |
| AC adapter included |
|
| Manual |
|
| Logistics data | |
| Master (outer) case width | 250 mm |
| Master (outer) case length | 325 mm |
| Master (outer) case height | 175 mm |
| Master (outer) case gross weight | 4.23 kg |
| Master (outer) case net weight | 3 kg |
| Products per master (outer) case | 5 pc(s) |
| SKU | 646492 |
| MPN | VE8950T-AT-U |
| Brand | ATEN |
| Product Condition | Brand New/Unused |
| Product Use | General |
| Stock Availability | Available for Shipping |
