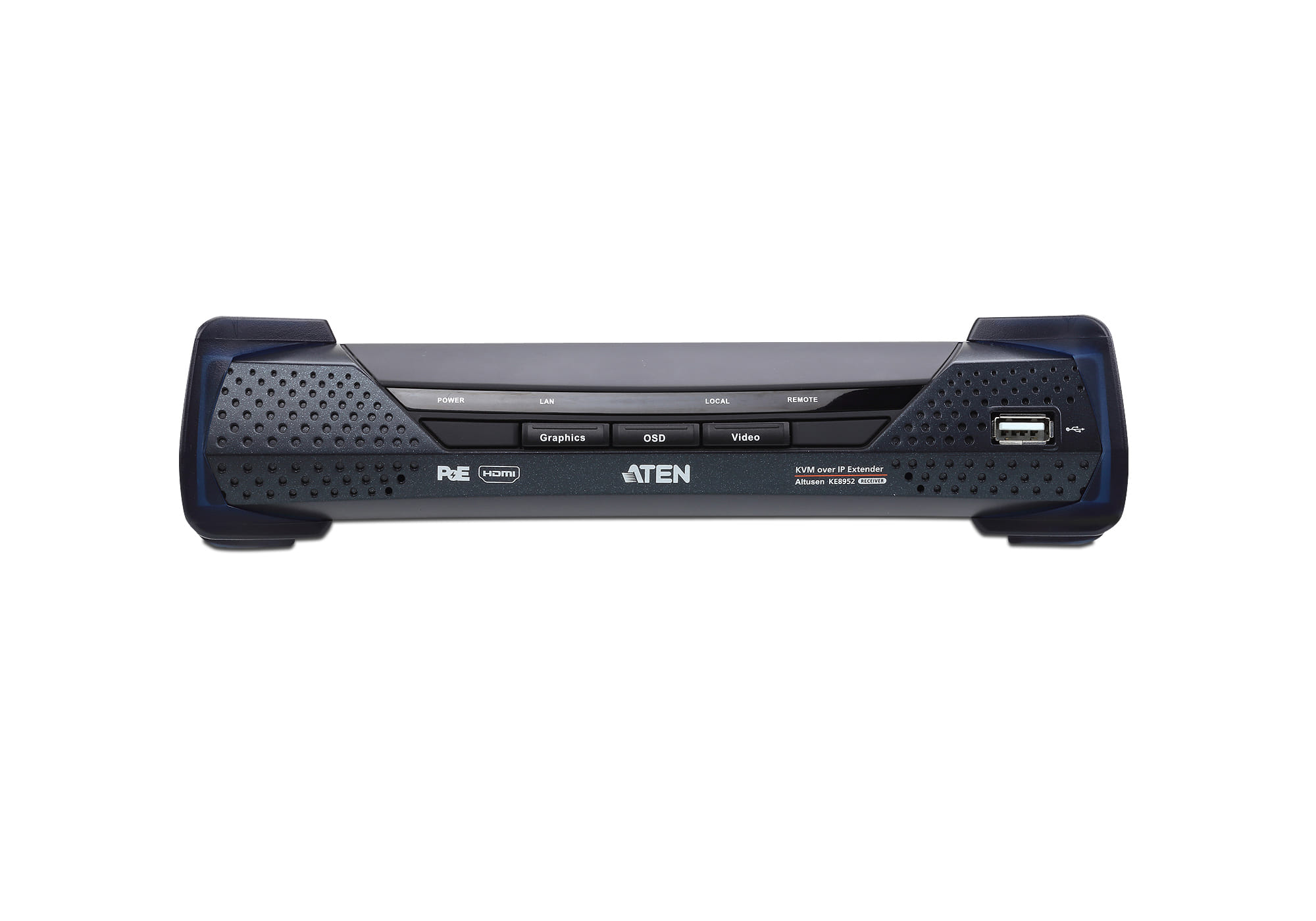

ATEN 4K HDMI Single Display KVM Over IP Receiver with PoE, Receiver, Wired, 3840 x 2160 pixels, 3840 x 2160, Black, Metal
ATEN is well known for delivering innovative technologies that drive connectivity and access management solutions. As such, we introduce the new ATEN KE8952 4K HDMI KVM over IP Extender that brings together a unique blend of features and new technologies that offer the ultimate solution for extending computers to consoles on or off your IT infrastructure.
1x KE8952R 4K HDMI Single Display KVM over IP Receiver with PoE
1x 0X12-0017-700G HDMI LockPro
1x User Instructions
1x KE8952R 4K HDMI Single Display KVM over IP Receiver with PoE
1x 0X12-0017-700G HDMI LockPro
1x User Instructions
| Features | |
| Type Characteristics of the device. | Receiver |
| Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless. | Wired |
| Maximum digital resolution | 3840 x 2160 pixels |
| Supported resolutions | 3840 x 2160 |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Material The material from which a thing is or can be made e.g. wood, plastic. | Metal |
| USB 2.0 ports quantity Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black. | 4 |
| LED indicators |
 |
| Receiver | |
| Receiver local video port type | HDMI |
| Receiver local keyboard/mouse port type | USB |
| RJ-45 ports quantity (receiver) | 1 |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 50 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Weight & dimensions | |
| Receiver width | 22.8 cm |
| Receiver depth | 17.2 cm |
| Receiver height | 5.48 cm |
| Receiver weight | 1.26 kg |
| Packaging data | |
| Package width The distance from one side of the packaging to the other. | 207 mm |
| Package depth The distance from the front to the back of the packaging. | 414 mm |
| Package height The distance from the top to the bottom of the packaging. | 117 mm |
| Package weight Weight of the packaged product. | 2.5 kg |
| Technical details | |
| Dimensions (WxDxH) Dimensions of the product (Width x Depth x Height). | 227.5 x 171.6 x 54.8 mm |
| Maximum resolution The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. | 3840 x 2160 pixels |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 1.28 kg |
| Harmonized System (HS) code | 84733080 |
| Packaging content | |
| Manual |
|
| Quick installation guide |
|
| Ports & interfaces | |
| USB port type | USB Type-A |
| Logistics data | |
| Master (outer) case net weight | 3.84 kg |
| Master (outer) case width | 370 mm |
| Master (outer) case length | 427 mm |
| Master (outer) case height | 232 mm |
| Master (outer) case gross weight | 5.83 kg |
| Products per master (outer) case | 3 pc(s) |
| SKU | 700100 |
| MPN | KE8952R-AX |
| Brand | ATEN |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 2 Years Warranty |
| Warranty Contact | https://www.aten.com/ |
