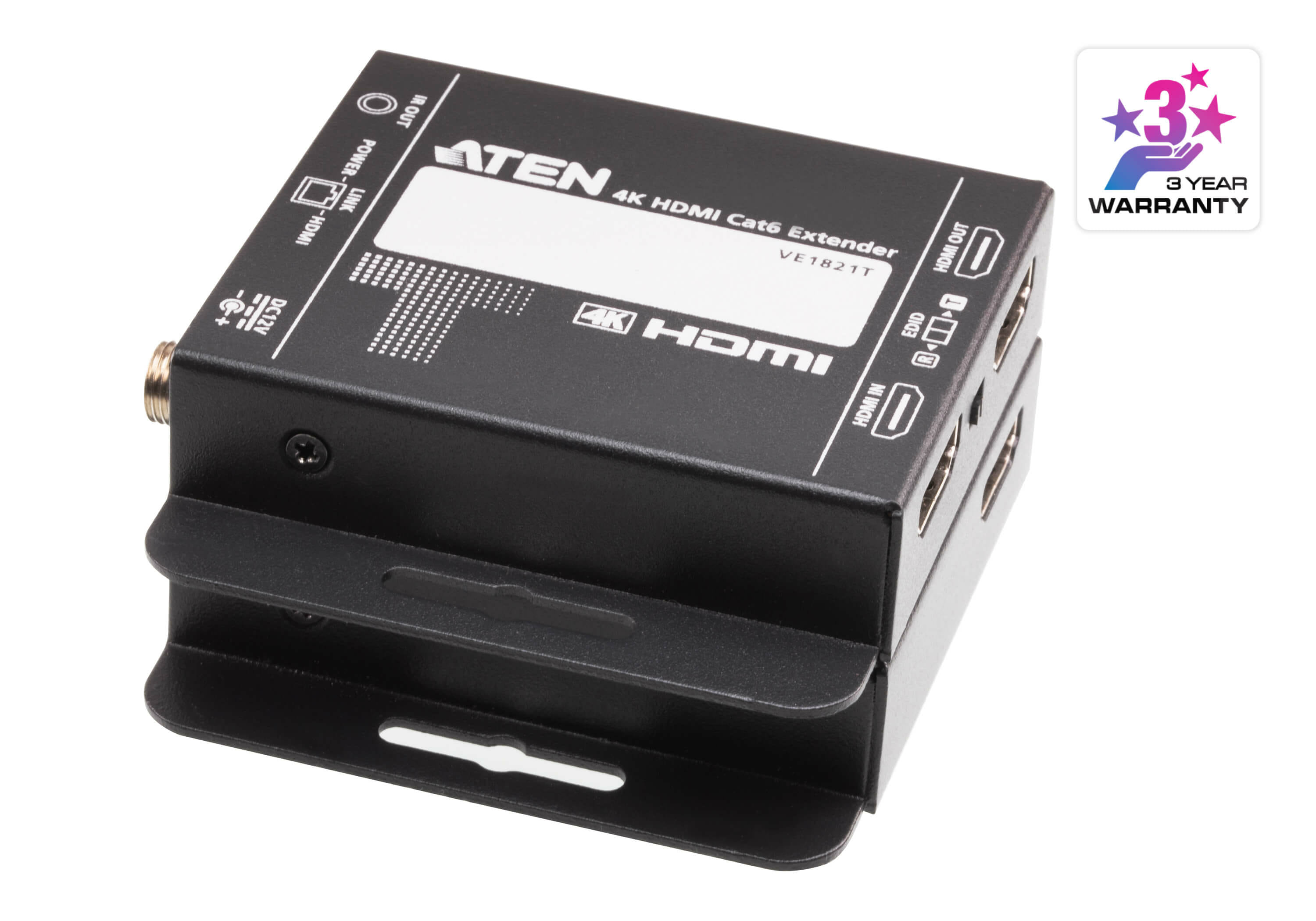

ATEN VE1821-AT-G, 4096 x 2160 pixels, AV transmitter & receiver, 35 m, Wired, 3D, HDCP
As a complete end-to-end solution, the VE1821 comes as a kit that contains a transmitter and a receiver, extending HDMI signals at 4096 x 2160 / 3840 x 2160 @ 30 Hz (4 : 4 : 4) up to 40 m via a Cat 6 cable (ATEN 2L-2910 recommended). Crystal-clear video presentation is guaranteed thanks to its capability of transmitting 4K sources without latency. Meanwhile, it supports lossless audio formats, such as LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus, and DTS-HD Master Audio, to add superior sound to the video content, enhancing the experience for the viewers.
Designed to optimize installation flexibility, the VE1821 features an ultra lightweight, palm-sized enclosure, perfect for mounting or placement in tight spaces. The transmitter includes a local HDMI output port, allowing for cascading purposes or for users to monitor the UHD signal being extended to the receiver. With the built-in EDID switch, users can control which EDID is taken from either display. Plus, the HDMI source can be displayed at the optimal resolution based on the capabilities of the connected display through the EDID Copying Mode. As a result of the IR transmission functionality, the source device connected to the transmitter can be seamlessly controlled from the receiver side, assuring easy and complete control for the user. The VE1821 adopts PoC (Power over Cable) technology, which enables the transmitter to provide power to the receiver via a Cat 6 cable, eliminating the need for a bulky external power supply.
With such a rich set of features, the VE1821 delivers excellent AV transmission quality and flexibility within different installation scenarios, such as meeting facilities, retail settings, entertainment systems, and more.
Designed to optimize installation flexibility, the VE1821 features an ultra lightweight, palm-sized enclosure, perfect for mounting or placement in tight spaces. The transmitter includes a local HDMI output port, allowing for cascading purposes or for users to monitor the UHD signal being extended to the receiver. With the built-in EDID switch, users can control which EDID is taken from either display. Plus, the HDMI source can be displayed at the optimal resolution based on the capabilities of the connected display through the EDID Copying Mode. As a result of the IR transmission functionality, the source device connected to the transmitter can be seamlessly controlled from the receiver side, assuring easy and complete control for the user. The VE1821 adopts PoC (Power over Cable) technology, which enables the transmitter to provide power to the receiver via a Cat 6 cable, eliminating the need for a bulky external power supply.
With such a rich set of features, the VE1821 delivers excellent AV transmission quality and flexibility within different installation scenarios, such as meeting facilities, retail settings, entertainment systems, and more.
| Features | |
| Type Characteristics of the device. | AV transmitter & receiver |
| Maximum resolution The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. | 4096 x 2160 pixels |
| Cable types supported | Cat5e, Cat6 |
| Maximum transfer distance The greatest distance over which the data/signal can be transferred. | 35 m |
| Maximum refresh rate | 60 Hz |
| Supported graphics resolutions The graphic resolutions that can be displayed by the device. The graphic resolution describes the width and height dimensions of a display, such as a computer monitor, measured in pixels. | 640 x 480 (VGA), 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 800 (WXGA), 1400 x 1050 (SXGA+), 1440 x 900 (WXGA+), 1600 x 1200 (UXGA), 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 3840 x 2160, 4096 x 2160 |
| Bandwidth Bandwidth is the difference between the upper and lower frequencies in a continuous set of frequencies. It is typically measured in Hertz (Hz). A key characteristic of bandwidth is that any band of a given width can carry the same amount of information, regardless of where that band is located in the frequency spectrum. For example, a 3 kHz band can carry a telephone conversation whether that band is at baseband (as in a POTS telephone line) or modulated to some higher frequency. | 340 MHz |
| HDCP High-bandwidth Digital Content Protection (HDCP) is a form of digital copy protection to prevent copying of digital audio and video content as it travels across connections. |
 |
| Material The material from which a thing is or can be made e.g. wood, plastic. | Metal |
| 3D The device can be used with 3D technology. |
|
| Impedance The effective resistance of an electric circuit or component to alternating current, arising from the combined effects of ohmic resistance and reactance. | 100 Ω |
| HDCP version | 1.4 |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Ports & interfaces | |
| Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless. | Wired |
| Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable. |
|
| RJ-45 input ports | 1 |
| RJ-45 output ports | 1 |
| HDMI in Port (socket) for HDMI input. | 1 |
| Number of HDMI outputs Port (socket) for HDMI output. | 1 |
| Remote (IR) input | 1 |
| Remote (IR) output | 1 |
| DC-in jack The socket/plug where the DC electricity supply connects to the device. |
|
| Power | |
| Power source type What the power source is. | DC |
| Power consumption (receiver) (max) | 0.87 W |
| Power consumption (transmitter) (max) | 1.86 mA |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 60 °C |
| Operating relative humidity (H-H) | 20 - 90% |
| Weight & dimensions | |
| Receiver dimensions (WxDxH) | 68 x 79.5 x 16.5 mm |
| Receiver weight | 120 g |
| Transmitter dimensions (WxDxH) | 68 x 79.5 x 16.5 mm |
| Transmitter weight | 120 g |
| Packaging data | |
| Quantity per pack | 2 pc(s) |
| SKU | 767327 |
| MPN | VE1821-AT-G |
| Brand | ATEN |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.aten.com/ |
