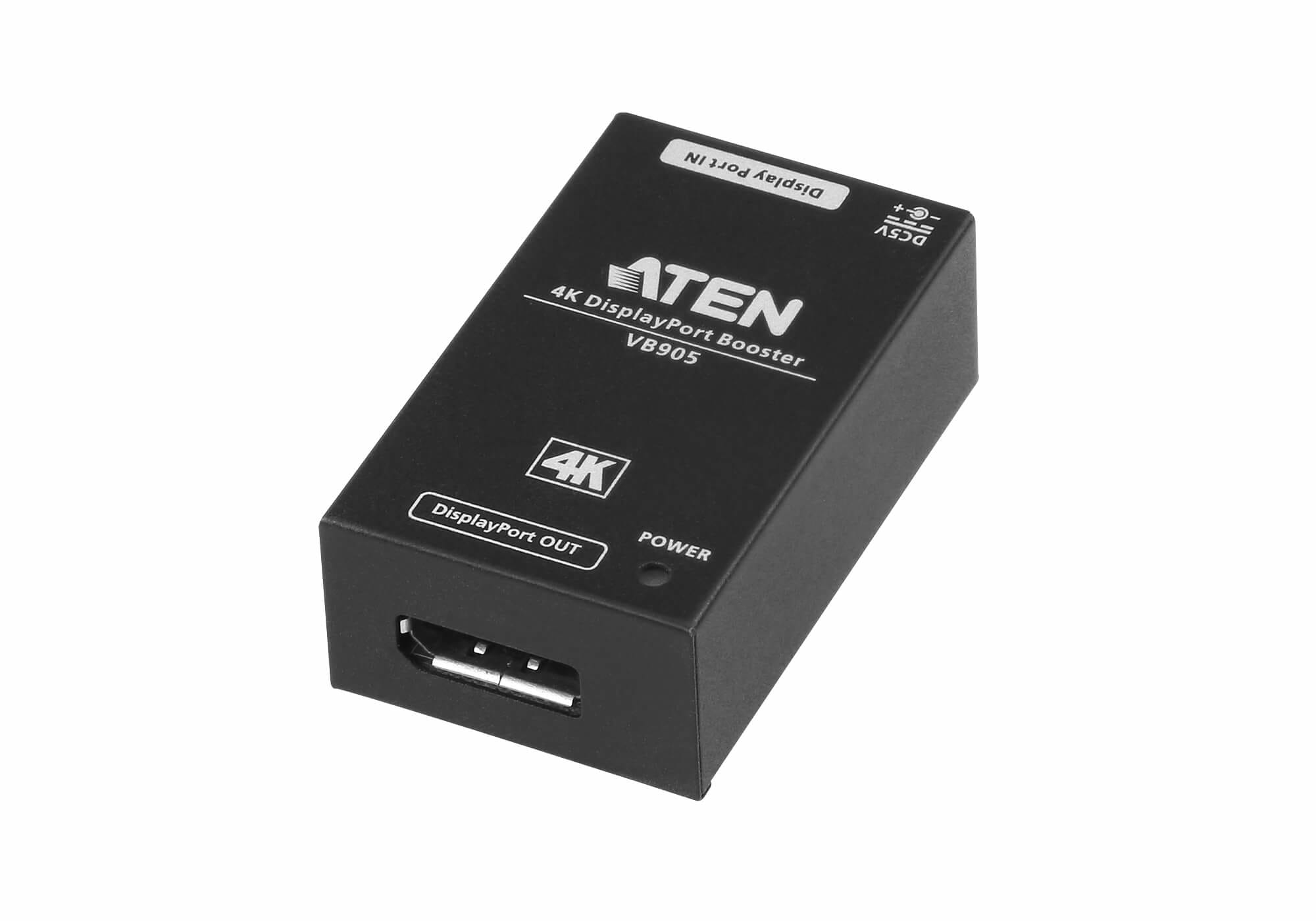

Aten Video Booster True 4K Displayport 1.2, Extend Up to 5m, Cascadable up to 3 Levels (20m), Plug and Play
Aten is a reputable conglomerate that provides a wide range of communication, data transfer, docking and other accessories for computing devices. Its range of transmission boosters is designed to ensure data security while extending transmission distance. The Aten 4K DisplayPort 1.2 Booster extends a True 4K signal (4K x 2K picture quality) with up to a 22 Gbps data transfer rate for a maximum distance of 5 meters. Up to 4 boosters can be connected to each other to provide a total transmission distance boost of 20 meters. For ease of installation, boosters can be rack mounted, offering an easy option for both office and home settings. ATEN VB905 extends True 4K signal from a source device to a display up to 5 meters. For long distance transmission, the VB905 can be cascaded up to 3 levels (20 meters), guaranteeing ultimate colour and image quality. The VB905 supports all DisplayPort enabled devices. For installation flexibility, the booster can be rack mounted, offering excellent flexibility for managing both work and home settings.
| Features | |
| Type Characteristics of the device. | AV repeater |
| Maximum resolution The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. | 4096 x 2160 pixels |
| Maximum transfer distance The greatest distance over which the data/signal can be transferred. | 20 m |
| LED indicators | Power |
| HDCP High-bandwidth Digital Content Protection (HDCP) is a form of digital copy protection to prevent copying of digital audio and video content as it travels across connections. |
 |
| Material The material from which a thing is or can be made e.g. wood, plastic. | Metal |
| Rack mounting The type of mounting that can position devices in a shelving system (rack). |
|
| Plug and Play Indicates whether this product supports is "plug and play". Plug and play is hardware or software that, after being installed ("plugged in"), can immediately be used ("played with"), as opposed to hardware or software which requires configuration. |
|
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Ports & interfaces | |
| Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless. | Wired |
| DisplayPorts in | 1 |
| DisplayPorts out | 1 |
| DC-in jack The socket/plug where the DC electricity supply connects to the device. |
|
| Power | |
| Operating voltage Defines the range of operating voltages available | 5 V |
| Current | 2.6 A |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 35.3 mm |
| Depth The distance from the front to the back of something. | 58.4 mm |
| Height The measurement of the product from head to foot or from base to top. | 20.6 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 50 g |
| Packaging content | |
| AC adapter included |
|
| Manual |
|
| SKU | 700337 |
| MPN | VB905-AT-U |
| Brand | ATEN |
| Product Condition | Brand New/Unused |
| Product Use | General |
| Warranty Period | 2 Years Warranty |
| Warranty Contact | https://www.aten.com/ |
