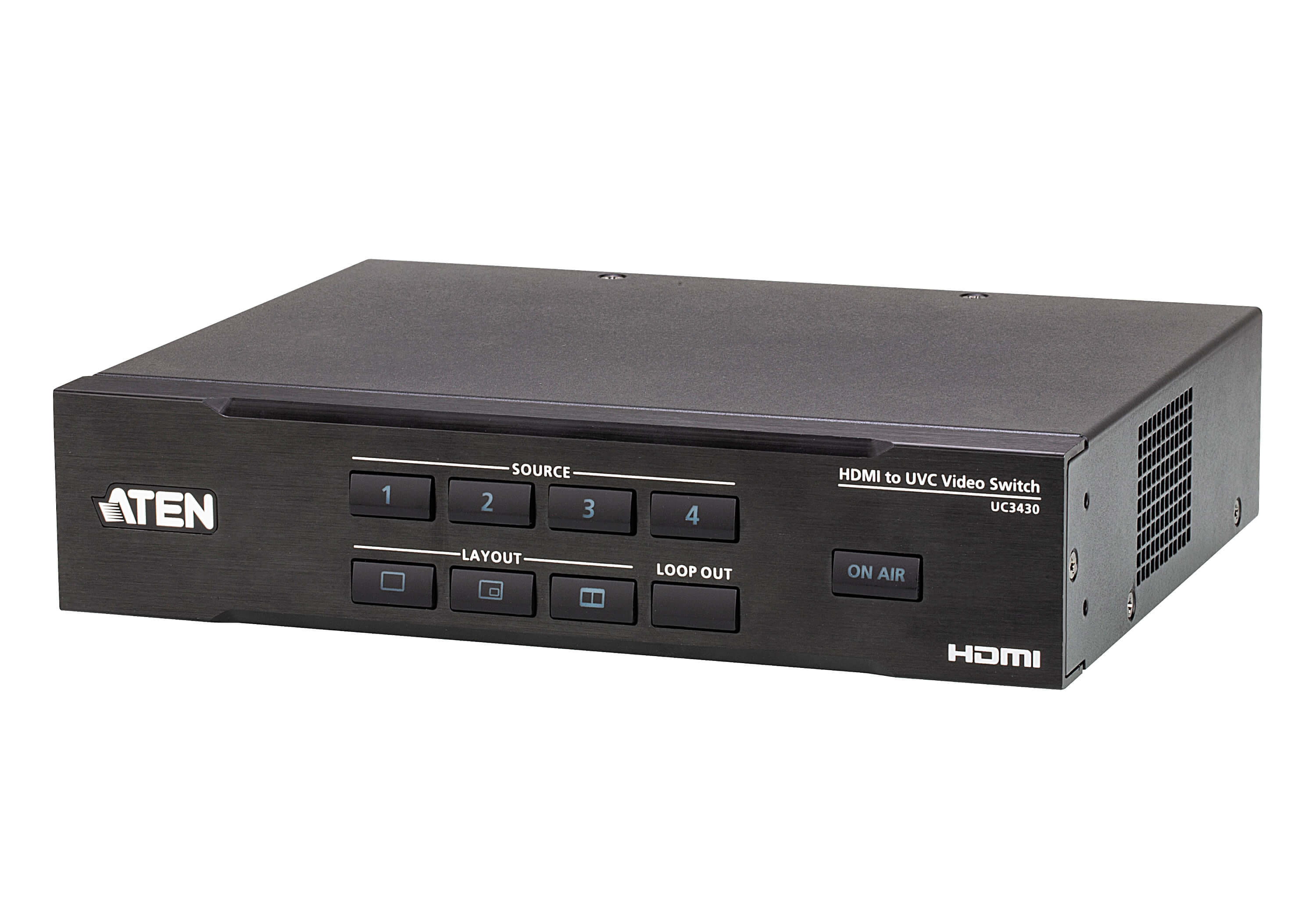

CAMLIVE PRO 4K 4-Input HDMI to USB Video Switcher UC3430
Captures 4 channels of 4K @ 60 HDMI, mixes and switches the streams while providing audio mixer functionalities and seamless transition for pro-level broadcasting
Multiple output options:
" HDMI PGM / Loop-through at 4K @ 60 for preview and monitoring purposes
" USB-C output 4K @ 30 for live broadcast on the Internet
Versatile control methods via the front panel pushbuttons, RJ-45 port for serial control via ATEN VK Control System, and ATEN OnAir Lite app
ATEN OnAir Lite app " users can remotely control device settings in real-time, including multiple AV source switching / mixing, content cropping / resizing, layout options (full screen / PiP / PbP / PoP), transitions, Chroma Key, and logo adding
The CAMLIVE PRO 4K (UC3430) 4-Input HDMI to USB Video Switcher captures up to four 4K @ 60 HDMI inputs, enabling users to mix dual video signals into one single stream while supporting multiple output options, including 4K @ 60 HDMI PGM / Loop-through for preview and monitoring purposes and 4K @ 30 USB-C output for live broadcast on the Internet. The USB-C output supports popular streaming software including Zoom, Microsoft Teams, Youtube, Facebook, GoToWebinar, Open Broadcaster, XSplit Broadcaster, and Twitch on Windows and Mac. Plus, the CAMLIVE PRO 4K features audio mixer functionalities to mix up to 4 HDMI audios and 1 line-level audio for users to add live narration / music to the content, streamlining the production process.
When working with the intuitive ATEN OnAir Lite app, users can remotely control device settings in realtime, from multiple AV source switching / mixing, content cropping / resizing, layout to transitions. Apart from the versatile transition effects, the PiP / PbP / PoP functions and the support for Chroma Key help users create a dynamic presentation that will never bore the audience. In order to amplify brand identity, users are allowed to add logos in PNG / BMP / JPG format to the content. Apart from the app, the CAMLIVE PRO 4K is also controllable through its front panel pushbuttons and RJ-45 port for serial control via ATEN VK Control System.
The CAMLIVE PRO 4K works with a rack mount kit (sold separately) to give installation flexibility in media cabinets or DIT stations. With the switcher s one-stop programming and streaming functionalities that work on Windows / Mac platforms, multi-camera streaming in scenarios in need of sharp, vivid UHD quality such as multi-cam studios, corporate conferences, lecture halls, houses of worship, and live events, has never been so easy.
| Name | Value |
|---|---|
| Product Type | Video Switcher |
| Compatible/Used for | Windows 10 and above, Mac OS X 10.13 and above |
| Warranty | 1 Year |
| Performance | |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Internal The product is built in. |
 |
| Host interface Interface that enables a host controller to communicate with a driver. | HDMI |
| Video capture resolution (max) | 3840 x 2160 pixels |
| Housing material What the casing of the product is made of. | Metal |
| Country of origin Country where the device is made. Aka Country of manufacture (COM). | Taiwan |
| Video | |
| Supported resolutions | 3840 x 2160 1920 x 1080 1280 x 720 |
| Maximum refresh rate | 60 Hz |
| Maximum frame rate This is the maximum frame rate, also known as frame frequency and frames per second (FPS). It is the frequency (rate) at which an imaging device produces unique consecutive images called frames. The term applies equally well to film and video cameras, computer graphics, and motion capture systems. Frame rate is most often expressed in frames per second (FPS) and is also expressed in progressive scan monitors as hertz (Hz). | 60 fps |
| Supported video modes The video modes that can be displayed by the device. | 720p, 1080p, 2160p |
| Ports & interfaces | |
| USB port The device features a socket into which a USB cable can be plugged. |
 |
| USB connector type The type of USB connector/port that this product has. | USB Type-C |
| USB version Universal Serial Bus (USB) is an industry standard developed in the mid-1990s that defines the interface used for connection, communication and power supply between computers and electronic devices. Every new version - for example 1.1, 2.0, 3.0 - is much faster than the previous one. | 3.2 Gen 1 (3.1 Gen 1) |
| USB ports quantity | 1 |
| HDMI in Port (socket) for HDMI input. | 4 |
| Number of HDMI outputs Port (socket) for HDMI output. | 2 |
| Headphone outputs Number of sockets /ports where headphones are connected. | 1 |
| Microphone in The socket where a microphone is connected to the device. |
|
| Power | |
| Power supply type The type of power supply which this product uses. | DC |
| Software | |
| Windows operating systems supported Windows vesions wich can be used with the device. | Windows 10, Windows 11 |
| Mac compatibility Product can be used with Apple Mac software and/or hardware. |
|
| Mac operating systems supported Mac operating systems e.g. OS X can be used with the device. | Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 164.6 mm |
| Depth The distance from the front to the back of something. | 200 mm |
| Height The measurement of the product from head to foot or from base to top. | 44 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 1.03 kg |
| SKU | 766997 |
| MPN | UC3430 |
| Brand | ATEN |
| Product Condition | Brand New/Unused |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.aten.com/ |
