Overview

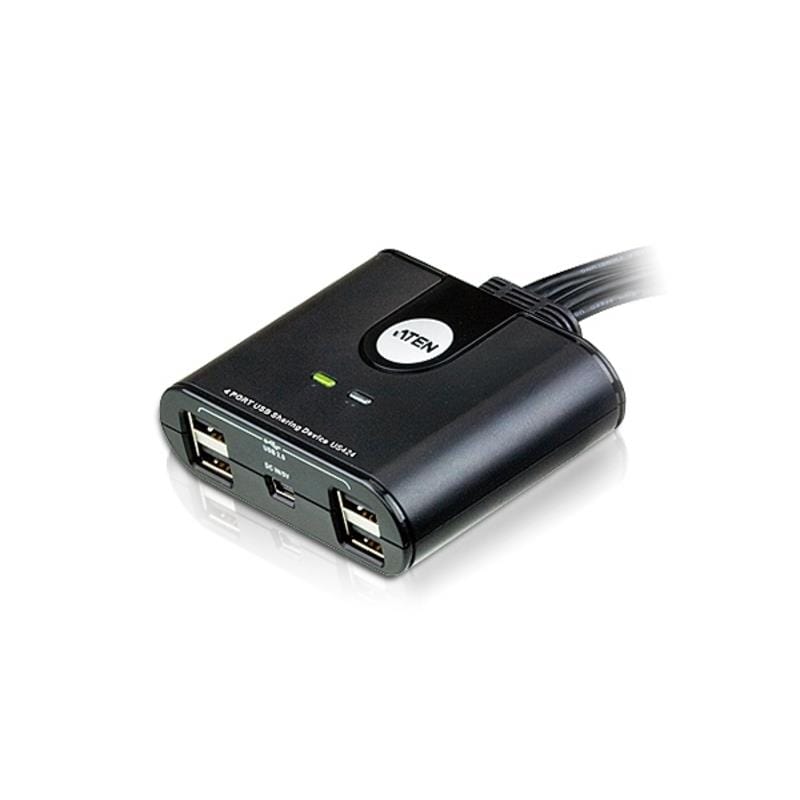

The US424 is a 4-port USB peripheral sharing device that enables 4 computers to share the use of 4 USB devices – a keyboard, mouse and up to two peripheral devices. It eliminates the added expense of having a separate USB
keyboard, mouse and peripheral device(s) for each computer. The US424 all-in-one design allows for a neat and tidy installation – no need to connect 4 separate USB cables to the computer, thus eliminating cable clutter.
For extra convenience, it features an external remote port selector that can simplify desktop layout, and select which computer needs to use the USB devices. US424 is the ideal way to share USB peripherals in a multimedia office environment.
Package Contents
- 1x US424 4 x 4 USB 2.0 Peripheral Sharing Switch
Features
- 4 built in USB ports – all-in-one design allows for a neat and tidy installation that reduces cable clutter
- Enables 4 computers to share 4 USB devices – a USB keyboard, mouse and up to two peripheral devices
- Simple port selection via remote port selector for convenient switch placement
- USB 2.0 compliant
- Multiplatform support – Windows, Linux ,Mac and Sun
- LED indicators display port focus
- Overcurrent protection
- Non-powered (supports optional USB power adapter)
- Hot pluggable
Diagram
Specifications
4-Port USB Peripheral Sharing Device
| Computer Connections | 4 |
| Port Selection | Remote port selector |
| Connectors | |
| Computer | 4 x USB Type A Male (Black) |
| Device | 4 x USB Type A Female (Black) |
| Power (Optional) | 1 x USB mini B Female (Black) |
| Cable Length | |
| USB Cable | 2 x 1.2 m / 2 x 1.8 m |
| Remote Port Selector | 1.8 m |
| LEDs | |
| Selected | 2 (Green / Orange) |
| Environmental | |
| Operating Temperature | 0–40°C |
| Storage Temperature | -20–60°C |
| Humidity | 0–80% RH, Non-condensing |
| Physical Properties | |
| Housing | Plastic |
| Weight | 0.22 kg ( 0.48 lb ) |
| Dimensions (L x W x H) | 8.24 x 6.65 x 2.53 cm (3.24 x 2.62 x 1 in.) |
| Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
| Technical details | |
| Ports quantity The number of ports or external interfaces to which other equipment can be connected. | 4 |
| Dimensions (WxDxH) Dimensions of the product (Width x Depth x Height). | 78 x 25 x 111 mm |
| Operating relative humidity (H-H) | 0 - 80% |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 5 - 40 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 60 °C |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 240 g |
| Ports & interfaces | |
| Interface type | USB |
| SKU | 318626 |
| MPN | US424-AT |
| Brand | ATEN |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Warranty Period | 2 Years Warranty |
| Warranty Contact | https://www.aten.com/ |
