Overview

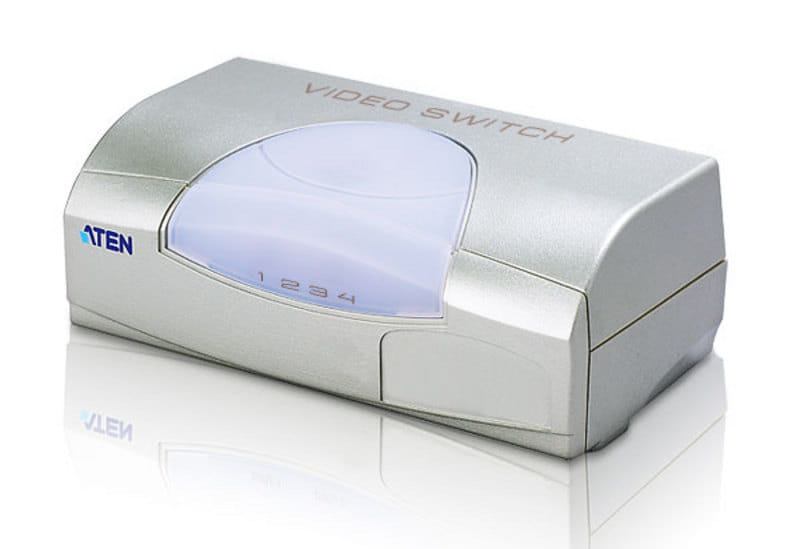

VS491 is a video switch with 4 ports. It allows 4 independent computers to display their video outputs on a single monitor.
Therefore, users will not need to buy monitors for each computer additionally.
Package Contents
- 1x 4-Port Video Switch
- 1x Powr Adapter
Features
- Displays the video output of four computers on a single monitor or projector.
- Computer selection via pushbutton switch.
- Electronic switching for greater reliability and durability.
- Easy Installation - No Software Required.
- Long distance transmission - up to 10m
- High resolution video - up to 1920 x 1440.
- DDC, DDC2, DDC2B Compatible.
- Supports VGA, XGA. SVGA, UXGA and Multisync monitors.
- OS Support: Windows 2000, Windows XP, Linux, Mac and Sun
Diagram
Specifications
4-Port Video Switch
| Video Input | |
| Interfaces | 4 x HDB-15 Female (Blue) |
| Impedance | 75 Ώ |
| Max. Distance | 1.8 m |
| Video Output | |
| Interfaces | 1 x HDB-15 Female (Blue) |
| Impedance | 75 Ώ |
| Max. Distance | 10 m |
| Video | |
| Max. Bandwidth | 150 MHz |
| Max. Resolution | Up to 1920 x 1440 |
| Max. Distance | Up to 10 m |
| Connectors | |
| Power | 1 x DC Jack |
| Power Consumption | DC9V:0.82W:4BTU |
| Environmental | |
| Operating Temperature | 0 - 50°C |
| Storage Temperature | -20 - 60°C |
| Humidity | 0 - 80% RH, Non-Condensing |
| Physical Properties | |
| Housing | Plastic / Metal |
| Weight | 0.18 kg ( 0.4 lb ) |
| Dimensions (L x W x H) | 12.00 x 6.52 x 4.40 cm (4.72 x 2.57 x 1.73 in.) |
| Carton Lot | 20 pcs |
| Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
| Ports & interfaces | |
| Video port type The type of socket in the device for connecting a video e.g. SCART. | VGA |
| DC-in jack The socket/plug where the DC electricity supply connects to the device. |
 |
| Features | |
| Product colour The colour e.g. red, blue, green, black, white. | Silver |
| HDCP High-bandwidth Digital Content Protection (HDCP) is a form of digital copy protection to prevent copying of digital audio and video content as it travels across connections. |
 |
| Maximum operating distance The maximum distance from which you can operate the device. | 10 m |
| Maximum resolution The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. | 1920 x 1440 pixels |
| Power | |
| Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. | 1.35 W |
| Weight & dimensions | |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 180 g |
| Dimensions (WxDxH) Dimensions of the product (Width x Depth x Height). | 120 x 65 x 44 mm |
| Packaging content | |
| Remote control included Component of an electronics device, most commonly a television set, DVD player and home theater systems originally used for operating the device wirelessly from a short line-of-sight distance. |
|
| Manual |
|
| Technical details | |
| Sustainability certificates | RoHS |
| SKU | 318465 |
| MPN | VS491-AT-U |
| Brand | ATEN |
| Product Condition | Brand New/Unused |
| Adapter Type | Monitor Adapter |
| Stock Availability | Available for Shipping |
| Warranty Period | 2 Years Warranty |
| Warranty Contact | https://www.aten.com/ |
