Overview

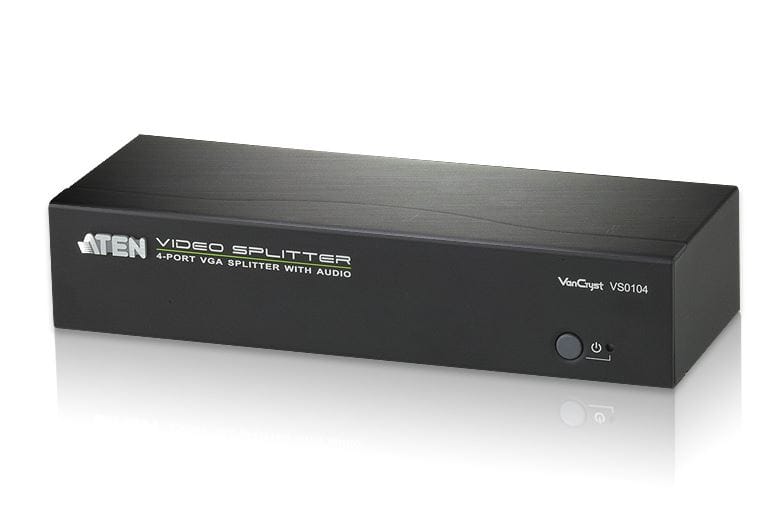

The ATEN VS0104 4-Port VGA Splitter with Audio is VGA splitter that allow a single VGA video & audio signal to be distributed to four output displays with independent stereo control.
The splitter support up to 450MHz video bandwidth, which provides optimum video quality, supported by resolutions up to 1920x1440.
Furthermore, for complete systems integration, serial control is standard through the VS0104 built-in RS-232 ports, which allow the splitter to be controlled through a high-end controller or PC.
The VS0104 is perfect for conference rooms,training facility & multi-display broadcasting, with cascadable support up to three levels allowing a single video signal to be sent across up to
64 video displays while sustaining the highest quality possible.
Features
-
One video input to 4 video outputs
-
Superior video quality – up to 1920 x 1440 @ 60Hz
-
Supports up to 450MHz bandwidth for high performance video
-
Long distance transmission – up to 65m *
-
Supports VGA, SVGA, UXGA, WUXGA, and multisync
-
EDID Expert – selects the optimum EDID settings for smooth power-up and highest quality display
-
Expandable – provides up to 64 video displays
-
Features RS-232 serial port for command controls **
-
RS-232 chain control – use RS-232 commands to control cascaded devices via VGA cable
-
Supports stereo audio
-
Plug-and-play – no software installation required
Note:
* Video content sent over very long distance using a VGA cable might result in slight degradation of the video signal and quality
** The VS0104 AP and GUI operation instructions can be downloaded from the ATEN website (www.aten.com)
Package Contents
-
1x 4-Port VGA Splitter with Audio
-
1x Power Adapter
-
1x User Instructions
Diagram
\
Specifications
4-Port VGA Splitter with Audio
| Video Input | |
| Interfaces | 1 x HDB-15 Male (Blue) |
| Impedance | 75 Ώ |
| Max. Distance | 1.8 m |
| Video Output | |
| Interfaces | 4 x HDB-15 Female (Blue) |
| Impedance | 75 Ώ |
| Video | |
| Max. Bandwidth | 450 MHz |
| Max. Resolution | Up to 1920 x 1440 |
| Max. Distance | Up to 30 m |
| Audio | |
| Input | 1 x Mini Stereo Jack Female (Green) |
| Output | 4 x Mini Stereo Jack Female (Green) |
| Control | |
| RS-232 | 1 x DB-9 Female (Black) |
| EDID Settings | EDID Mode: Port 1 / Auto / Default |
| Connectors | |
| Power | 1 x DC Jack |
| Power Consumption | DC5.3V:1.13W:5BTU |
| Environmental | |
| Operating Temperature | 0-50°C |
| Storage Temperature | -20 - 60°C |
| Humidity | 0 - 80% RH, Non-Condensing |
| Physical Properties | |
| Housing | Metal |
| Weight | 0.68 kg ( 1.5 lb ) |
| Dimensions (L x W x H) | 20.00 x 7.61 x 4.40 cm (7.87 x 3 x 1.73 in.) |
| Carton Lot | 10 pcs |
| Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
| Ports & interfaces | |
| Video port type The type of socket in the device for connecting a video e.g. SCART. | VGA |
| Video out | 4x VGA |
| Video ports quantity The number of ports (sockets) for video input or output. | 4 |
| DC-in jack The socket/plug where the DC electricity supply connects to the device. |
 |
| Features | |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Housing material What the casing of the product is made of. | Metal |
| Maximum resolution The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. | 1920 x 1440 pixels |
| LED indicators | Power |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 76.1 mm |
| Depth The distance from the front to the back of something. | 200 mm |
| Height The measurement of the product from head to foot or from base to top. | 44 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 680 g |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 50 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| SKU | 318409 |
| MPN | VS0104-AT-U |
| Brand | ATEN |
| Product Condition | Brand New/Unused |
| Adapter Type | Monitor Adapter |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.aten.com/ |
