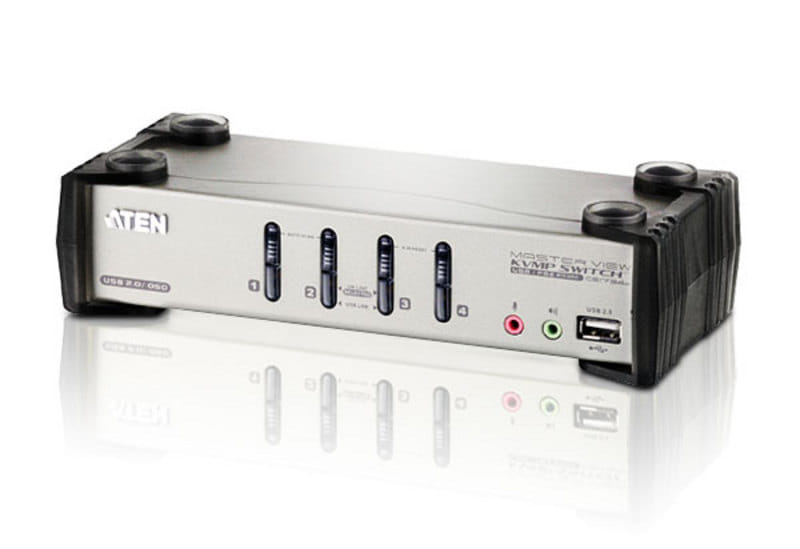

Aten CS1734B, 2048 x 1536 pixels, 3.4 W, Silver
Features
- 4-port KVM switch with USB 2.0 support and 2.1 surround sound audio
- One console controls four computers and two additional USB devices
- 2-port USB 2.0 hub built in
- USB 2.0 compliant
- Dual interface - supports computers with PS/2 or USB keyboard and mouse configurations
- Audio enabled - full bass response provides a rich experience for 2.1 surround sound systems
- Console audio ports on front panel for easy access - ideal for IP phone users
- Supports both USB and PS/2 keyboards and mice - flexible configurations available with the included USB-to-PS/2 converter: USB keyboard and mouse; PS/2 keyboard and mouse; or PS/2 keyboard and USB mouse
- Independent switching of KVM, USB, and Audio focus
- Superior video quality; 2048 x 1536; DDC2B
- Supports widescreen resolutions
- Computer selection via front panel pushbuttons, multilingual OSD (On Screen Display), and mouse
- Multiplatform support - Windows , Mac, and Sun
- Console mouse port emulation / bypass feature supports full mouse driver and multifunction mice
- Video DynaSync - stores the console monitor's EDID (Extended Display Identification Data) to optimize display resolution
- Complete keyboard emulation for error-free booting
- Sun/Mac keyboard support and emulation*
- Auto Scan Mode for monitoring all computers
- LED Display for easy status monitoring
- Easy installation no software required
- Firmware upgradeable
*1.PC keyboard combinations emulate Sun/Mac keyboards
*2.Sun/Mac keyboards only work with their own computers
Package Contents
- 1x 4-Port USB 2.0 KVMP Switch
- 2x 2L-5301U USB KVM Cables
- 2x 2L-5302U USB KVM Cables
- 1x UC20KMZ-A-11 USB-to-PS/2 Converter
- 2x OSD/Hotkey Stickers
- 1x Firmware Upgrade Cable
- 1x 0AD6-1605-24EG Power Adapter
- 1x User Instructions
- 4-port KVM switch with USB 2.0 support and 2.1 surround sound audio
- One console controls four computers and two additional USB devices
- 2-port USB 2.0 hub built in
- USB 2.0 compliant
- Dual interface - supports computers with PS/2 or USB keyboard and mouse configurations
- Audio enabled - full bass response provides a rich experience for 2.1 surround sound systems
- Console audio ports on front panel for easy access - ideal for IP phone users
- Supports both USB and PS/2 keyboards and mice - flexible configurations available with the included USB-to-PS/2 converter: USB keyboard and mouse; PS/2 keyboard and mouse; or PS/2 keyboard and USB mouse
- Independent switching of KVM, USB, and Audio focus
- Superior video quality; 2048 x 1536; DDC2B
- Supports widescreen resolutions
- Computer selection via front panel pushbuttons, multilingual OSD (On Screen Display), and mouse
- Multiplatform support - Windows , Mac, and Sun
- Console mouse port emulation / bypass feature supports full mouse driver and multifunction mice
- Video DynaSync - stores the console monitor's EDID (Extended Display Identification Data) to optimize display resolution
- Complete keyboard emulation for error-free booting
- Sun/Mac keyboard support and emulation*
- Auto Scan Mode for monitoring all computers
- LED Display for easy status monitoring
- Easy installation no software required
- Firmware upgradeable
*1.PC keyboard combinations emulate Sun/Mac keyboards
*2.Sun/Mac keyboards only work with their own computers
Package Contents
- 1x 4-Port USB 2.0 KVMP Switch
- 2x 2L-5301U USB KVM Cables
- 2x 2L-5302U USB KVM Cables
- 1x UC20KMZ-A-11 USB-to-PS/2 Converter
- 2x OSD/Hotkey Stickers
- 1x Firmware Upgrade Cable
- 1x 0AD6-1605-24EG Power Adapter
- 1x User Instructions
| Ports & interfaces | |
| Number of computers controlled The amount of computers controlled by this device. | 4 |
| Keyboard port type The type of socket in the device for connecting a keyboard e.g. USB. | USB, PS/2 |
| Mouse port type | USB, PS/2 |
| Video port type The type of socket in the device for connecting a video e.g. SCART. | VGA |
| VGA (D-Sub) ports quantity Number of VGA (D-Sub) ports (connecting interfaces) in the device. The VGA (D-Sub) connector is a 15 pin connector between a computer and a monitor. It was first introduced in 1987 by IBM. | 1 |
| Console ports | 3.5mm headphone, 3.5mm mic, USB A, VGA (D-Sub) |
| Console USB ports quantity | 2 |
| USB hub |
 |
| USB 2.0 Type-A hub ports quantity | 2 |
| Audio connections Cables used to connect audio inputs or audio outputs to another device e.g, audio amplifier. |
|
| Headphone outputs Number of sockets /ports where headphones are connected. | 6 |
| Number of microphone inputs | 6 |
| Performance | |
| HD type Type of supported High Definition (e.g. Full HD, 4K Ultra HD). | QXGA |
| Maximum resolution The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. | 2048 x 1536 pixels |
| Video bandwidth | 60 Hz |
| Scan interval | 1,255 s |
| DDC2B support |
|
| Firmware upgradeable |
|
| Design | |
| Product colour The colour e.g. red, blue, green, black, white. | Black, Metallic |
| Housing material What the casing of the product is made of. | Metal |
| Push button |
|
| Hot keys |
|
| Display | |
| Built-in display A display which is part of the product, so you do not need to attach another display. |
 |
| On Screen Display (OSD) |
|
| Power | |
| Power source What is providing power for the product e.g. mains electricity. | DC |
| DC input voltage | 5 V |
| Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. | 1.02 W |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 50 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 88 mm |
| Depth The distance from the front to the back of something. | 210 mm |
| Height The measurement of the product from head to foot or from base to top. | 55.5 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 1.95 kg |
| Packaging data | |
| Package width The distance from one side of the packaging to the other. | 100 mm |
| Package depth The distance from the front to the back of the packaging. | 283 mm |
| Package height The distance from the top to the bottom of the packaging. | 173 mm |
| Package weight Weight of the packaged product. | 2.09 kg |
| Packaging content | |
| Cables included | KVM,USB |
| Logistics data | |
| Master (outer) case net weight | 9.75 kg |
| Master (outer) case width | 292 mm |
| Master (outer) case length | 517 mm |
| Master (outer) case height | 194 mm |
| Master (outer) case gross weight | 11 kg |
| Products per master (outer) case | 5 pc(s) |
| SKU | 446780 |
| MPN | CS1734B-AT-U |
| Brand | ATEN |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 2 Years Warranty |
| Warranty Contact | https://www.aten.com/ |
