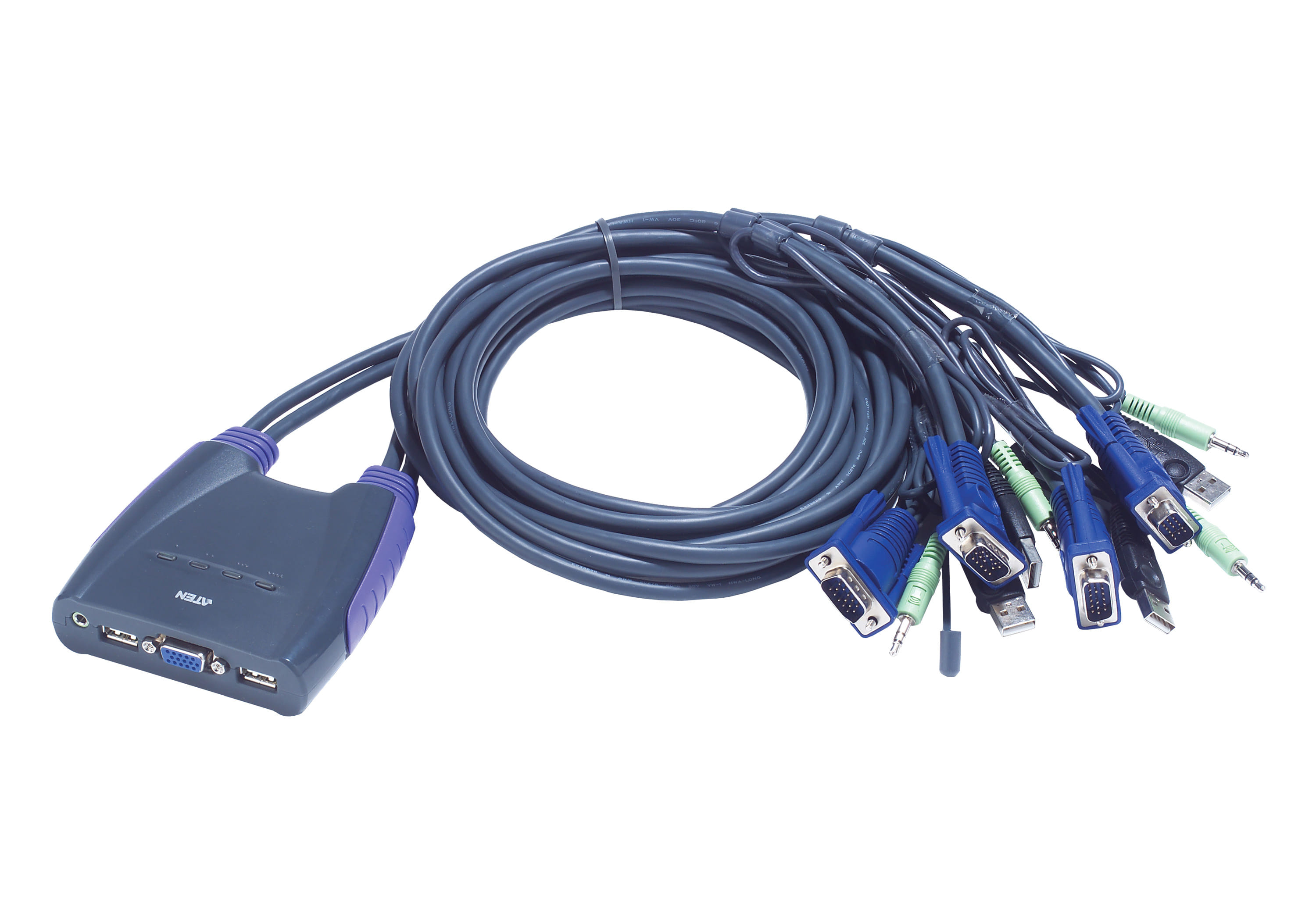

Aten Petite 4 Port USB KVM Switch with Audio - Cables Built In
Details:
Aten CS-64U – 4-Port USB KVM Switch
CS64U 4-Port USB KVM Switch has a handy design integrating with 6 feet of cables and built-in USB. It can control 4 servers via a single console.
Specifications:
| Computer Connections | 4 | ||
| Computer Port Selection | Hotkey | ||
| Connectors | Console Ports | Keyboard | 1 x USB Type A Female (White) |
| Video | 1 x HDB-15 Female(Blue) | ||
| Mouse | 1 x USB Type A Female (White) | ||
| Speaker | 1 x Mini Stereo Jack Female (Green) | ||
| KVM Ports | Keyboard/Mouse | 4 x USB Type A Male(Black) | |
| Video | 4 x HDB-15 Male(Blue) | ||
| Speaker | 4 x Mini Stereo Plug Male (Green) | ||
| LED | Selected | 4 (Green) | |
| Cable Length | Computers | 1.8m | |
| Emulation | Keyboard/Mouse | USB | |
| Video | 2048 x 1536, DDC2B | ||
| Scan Interval | 1-99 seconds | ||
| Environment | Operating Temp. | 0°~50 °C | |
| Storage Temp. | -20°~60 °C | ||
| Humidity | 0~80% RH, Non-condensing | ||
| Physical Properties | Housing | Plastic | |
| Weight | 0.80 kg | ||
| Dimensions ( L x W x H ) | 10.90 x 9.72 x 2.54 cm | ||
Package Contents
- 1 x 4-Port USB KVM Switch with Attached Cables
- 1 x User Instructions
| Ports & interfaces | |
| Number of computers controlled The amount of computers controlled by this device. | 4 |
| Keyboard port type The type of socket in the device for connecting a keyboard e.g. USB. | USB |
| Mouse port type | USB |
| Video port type The type of socket in the device for connecting a video e.g. SCART. | VGA |
| Headphone outputs Number of sockets /ports where headphones are connected. | 4 |
| Design | |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Cable length How long the cable is. | 1.8 m |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 50 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 60 °C |
| Storage relative humidity (H-H) | 0 - 80% |
| Weight & dimensions | |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 800 g |
| Other features | |
| I/O ports An interface on a device to which you can connect another device. | -USB |
| Dimensions (WxDxH) Dimensions of the product (Width x Depth x Height). | 97 x 109 x 25 mm |
| Compatible operating systems List of desktop operating systems tested as compatible with this product. | -with all operation platforms PC(Windows,Linux and most others),Mac and Sun. |
| SKU | 262745 |
| MPN | CS64UZ-AT |
| Brand | ATEN |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Warranty Period | 2 Years Warranty |
| Warranty Contact | https://www.aten.com/ |
