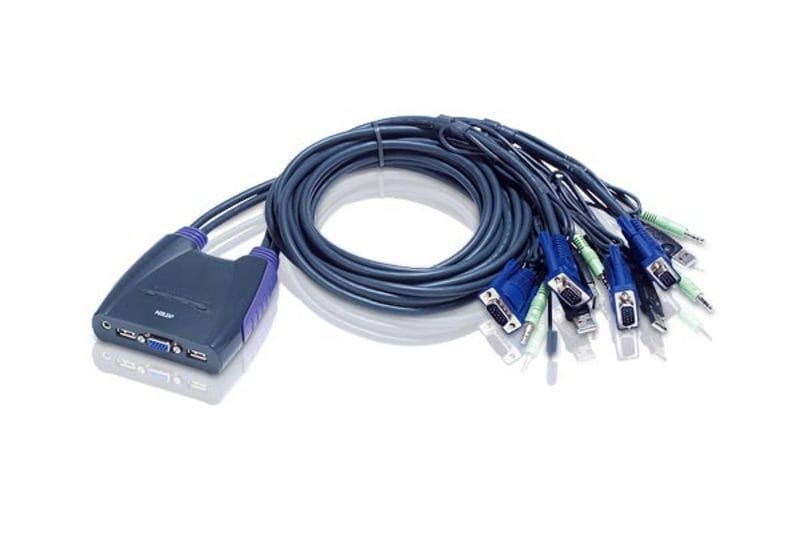

Aten Petite 4 Port USB VGA KVM Switch with Audio - 0.9m Cables Built In
Details:
Aten CS-64US – 4-Port USB KVM Switch
The CS64US takes a giant step forward from prior cable KVM models in the Petite series, by offering built-in cables, USB peripheral sharing, and a firmware upgrade function that allows you to keep up with latest available versions.
Furthermore, the CS64US features enhanced Video DynaSync™ technology, which stores the console monitor's EDID (Extended Display Identification Data) to optimize display resolution. The CS64US also offers multiplatform support and computer selection via hotkeys to provide the ultimate in desktop convenience.
Specifications:
- Computer Connections: 4
- Port Selection: Hotkeys
- Connectors:
- Console Ports:
- Keyboard: 1 x USB Type A Female (White)
- Video: 1 x HDB-15 Female (Blue)
- Mouse: 1 x USB Type A Female (White)
- Speaker: 1 x Mini Stereo Jack Female (Green)
- KVM Ports:
- Keyboard/Mouse: 4 x USB Type A Male (White)
- Video: 4 x HDB-15 Male (Blue)
- Speaker: 4 x Mini Stereo Jack Female (Green)
- LEDs - Selected: 4 (Green)
- Cable Length: 2 x 0.9 m; 2 x 1.2 m
- Emulation - Keyboard/Mouse: USB
- Video: 2048 x 1536; DDC2B
- Scan Interval: 1-99 secs. (default 5 secs.)
- Environment:
- Operating Temp.: 0 ~ 50°C
- Storage Temp.: -20 ~ 60°C
- Humidity: 0-80% RH, Non-condensing
- Physical Properties:
- Housing: Plastic
- Weight: 0.77 kg
- Dimensions (LxWxH): 10.90 x 9.72 x 2.54cm
- Package Contents:
- 1 x 4-Port CS64US USB KVM Switch
- 2 x Hotkey Stickers
- 1 x User Instructions
| Ports & interfaces | |
| Number of computers controlled The amount of computers controlled by this device. | 4 |
| Keyboard port type The type of socket in the device for connecting a keyboard e.g. USB. | USB |
| Mouse port type | USB |
| Video port type The type of socket in the device for connecting a video e.g. SCART. | VGA |
| VGA (D-Sub) ports quantity Number of VGA (D-Sub) ports (connecting interfaces) in the device. The VGA (D-Sub) connector is a 15 pin connector between a computer and a monitor. It was first introduced in 1987 by IBM. | 5 |
| USB 2.0 ports quantity Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black. | 6 |
| Audio connections Cables used to connect audio inputs or audio outputs to another device e.g, audio amplifier. |
 |
| Headphone outputs Number of sockets /ports where headphones are connected. | 5 |
| Network | |
| Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable. |
 |
| Performance | |
| Maximum resolution The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. | 2048 x 1536 pixels |
| Scan interval | 99 s |
| Plug and Play Indicates whether this product supports is "plug and play". Plug and play is hardware or software that, after being installed ("plugged in"), can immediately be used ("played with"), as opposed to hardware or software which requires configuration. |
|
| Design | |
| Rack mounting The type of mounting that can position devices in a shelving system (rack). |
|
| Product colour The colour e.g. red, blue, green, black, white. | Blue |
| Housing material What the casing of the product is made of. | Plastic |
| RoHS compliance The Restriction of Hazardous Substances (RoHS) Directive aims to restrict certain dangerous substances commonly used in electrical and electronic equipment. Any RoHS compliant product is tested for the presence of Lead (Pb), Cadmium (Cd), Mercury (Hg), Hexavalent chromium (Hex-Cr), Polybrominated biphenyls (PBB), and Polybrominated diphenyl ethers (PBDE). PBB and PBDE are flame retardants used in several plastics. For Cadmium and Hexavalent chromium, there must be less than 0.01% of the substance by weight at raw homogeneous materials level. For Lead, PBB, and PBDE, there must be no more than 0.1% of the material, when calculated by weight at raw homogeneous materials. Any RoHS compliant component must have 100 ppm or less of mercury and the mercury must not have been intentionally added to the component. In the EU, some military and medical equipment are exempt from RoHS compliance. |
|
| Certification | Windows7 |
| Display | |
| Built-in display A display which is part of the product, so you do not need to attach another display. |
|
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 50 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 97.2 mm |
| Depth The distance from the front to the back of something. | 109 mm |
| Height The measurement of the product from head to foot or from base to top. | 25.4 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 770 g |
| Packaging content | |
| Cables included | USB,VGA |
| Other features | |
| Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless. | Wired |
| I/O ports An interface on a device to which you can connect another device. | 6 x USB A 5 x HDB-15 |
| Compatibility The other products, software and hardware this product can be used with. | Windows, Linux, Mac, Sun |
| Compliance industry standards List of characteristics that describe methods of compliance to industry-defined standards for the product | RoHS |
| Ports quantity The number of ports or external interfaces to which other equipment can be connected. | 4 |
| SKU | 262752 |
| MPN | CS64US-AT |
| Brand | ATEN |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Warranty Period | 2 Years Warranty |
| Warranty Contact | https://www.aten.com/ |
