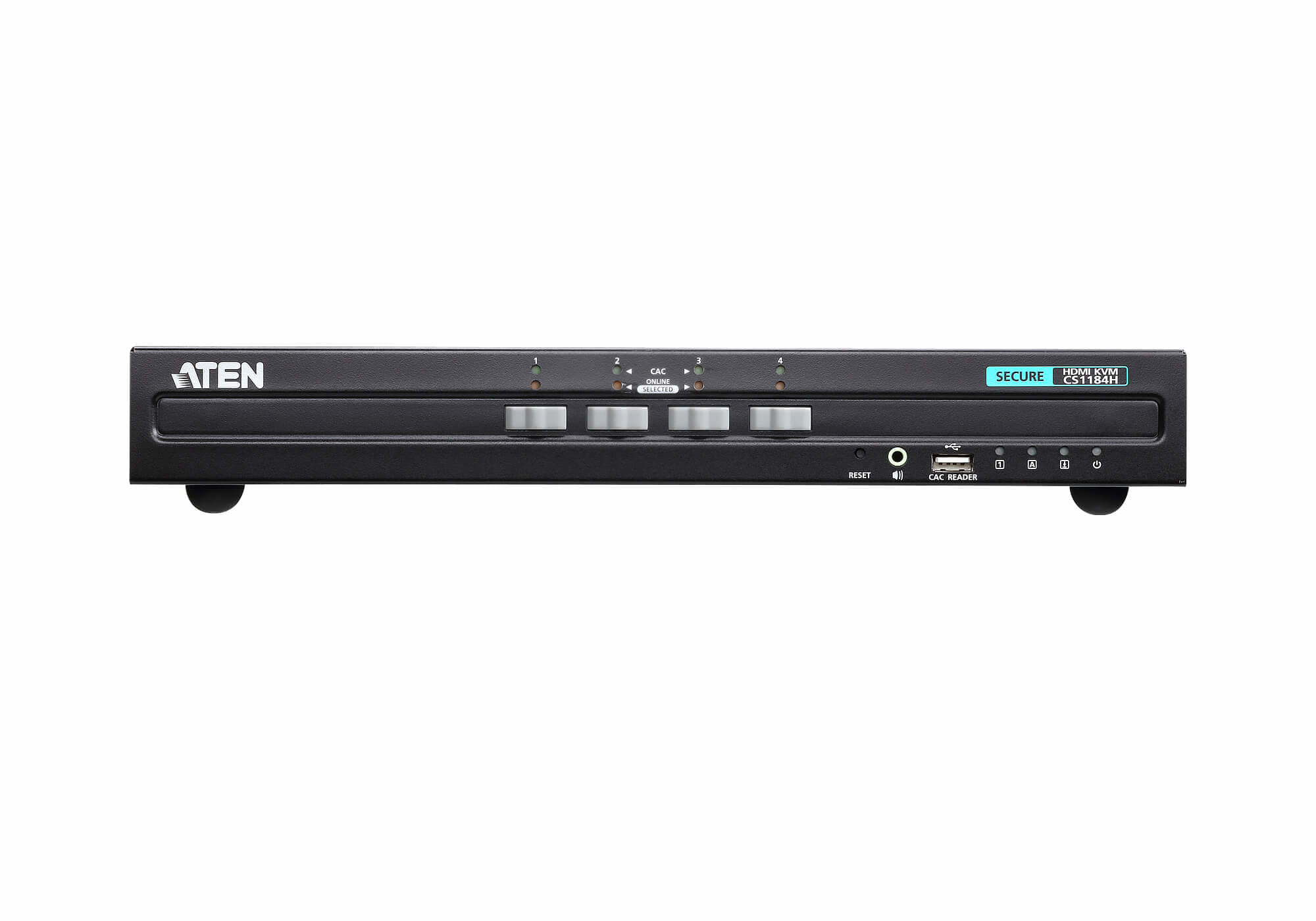

Aten 4-Port USB HDMI KVM Switch

Ports & interfaces
Number of computers controlled The amount of computers controlled by this device.	4
Keyboard port type The type of socket in the device for connecting a keyboard e.g. USB.	USB
Mouse port type	USB
Video port type The type of socket in the device for connecting a video e.g. SCART.	HDMI
HDMI ports quantity The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards.	4
USB 2.0 Type-B ports quantity	8
Console ports	HDMI, PS/2, USB A
Console USB ports quantity	2
Audio connections Cables used to connect audio inputs or audio outputs to another device e.g, audio amplifier.
Headphone outputs Number of sockets /ports where headphones are connected.	4

Network
Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable.

Performance
HD type Type of supported High Definition (e.g. Full HD, 4K Ultra HD).	4K Ultra HD
Maximum resolution The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels.	3840 x 2160 pixels

Design
Rack mounting The type of mounting that can position devices in a shelving system (rack).
Rack capacity The spase that device fill in rack.	1U
Product colour The colour e.g. red, blue, green, black, white.	Black
Housing material What the casing of the product is made of.	Metal
LED indicators
Push button

Display
Built-in display A display which is part of the product, so you do not need to attach another display.

Power
Power source What is providing power for the product e.g. mains electricity.	AC
AC input voltage The voltage of the AC electricity that is inputted into the product.	100 - 240 V
AC input frequency	50/60 Hz
Input current	1 A

System requirements
Windows operating systems supported Windows vesions wich can be used with the device.

Sustainability
Sustainability certificates	RoHS

Operational conditions
Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated.	0 - 50 °C
Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored.	-20 - 60 °C
Operating relative humidity (H-H)	0 - 80%

Weight & dimensions
Width The measurement or extent of something from side to side.	335 mm
Depth The distance from the front to the back of something.	163.4 mm
Height The measurement of the product from head to foot or from base to top.	44 mm
Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.	1.94 kg

Packaging data
Package width The distance from one side of the packaging to the other.	116 mm
Package depth The distance from the front to the back of the packaging.	540 mm
Package height The distance from the top to the bottom of the packaging.	233 mm
Package weight Weight of the packaged product.	2.5 kg

Packaging content
Cables included	AC
Quick installation guide

Logistics data
Master (outer) case net weight	5.82 kg
Harmonized System (HS) code	85176200
Master (outer) case width	375 mm
Master (outer) case length	565 mm
Master (outer) case height	258 mm
Master (outer) case gross weight	7.48 kg
Products per master (outer) case	3 pc(s)
