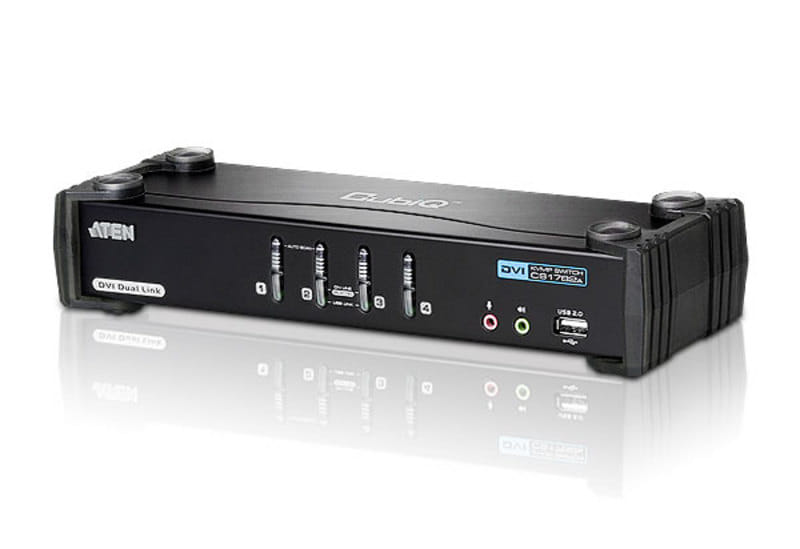

Aten CS1784A, 2560 x 1600 pixels, 10 W, Black
Features
- 4-port DVI KVMP Switch with USB 2.0 and 2.1 Surround Sound Audio
- One USB console controls four computers and two additional USB devices
- 2-port built in USB 2.0 hub fully compliant with the USB 2.0 specification
- Full bass response for high quality 2.1 channel surround sound systems
- Computer selection via front panel pushbuttons, hotkeys, and mouse
- Multiplatform support Windows, Linux, Mac, and Sun*
- Independent switching of KVM, USB, and Audio focus
- DVI digital and analog monitor support fully compliant with the DVI specifications
- Superior video quality: 1920 x 1200 @ 60Hz (Single Link); 2560 x 1600 @ 60Hz (Dual Link)
- nVidia 3D Vision Ready: Works with 120Hz LCD monitors and active shutter glasses to create a 3D environment with maximum resolution of up to 1920 x 1080
- HDCP compatible
- Support widescreen resolutions
- Video DynaSync Exclusive ATEN technology that eliminates boot-up display problems and optimizes resolution when switching between ports
- Power on detection if one of the computers is powered off, the switch will automatically switch to the next powered-on computer
- Console mouse port emulation/bypass feature that supports most mouse drivers and multifunction mice
- Console keyboard emulation/bypass feature that supports most gaming / multimedia keyboards
- Complete keyboard emulation for error-free booting
- Mac/Sun keyboard support and emulation*
- Multilingual keyboard mapping supports English, Japanese, and French keyboards
- Auto Scan Mode for monitoring all computers
- Firmware upgradable
* PC keyboard combinations emulate Mac/Sun keyboards
* Mac/Sun keyboard work only with their own
Package Contents
- 1x CS1784A USB DVI Dual Link KVMP Switch
- 4x 2L-7D02UD DVI-D KVM Cable Sets
- 1x 0AD6-1605-24EG Power Adapter
- 1x User Instructions
- 4-port DVI KVMP Switch with USB 2.0 and 2.1 Surround Sound Audio
- One USB console controls four computers and two additional USB devices
- 2-port built in USB 2.0 hub fully compliant with the USB 2.0 specification
- Full bass response for high quality 2.1 channel surround sound systems
- Computer selection via front panel pushbuttons, hotkeys, and mouse
- Multiplatform support Windows, Linux, Mac, and Sun*
- Independent switching of KVM, USB, and Audio focus
- DVI digital and analog monitor support fully compliant with the DVI specifications
- Superior video quality: 1920 x 1200 @ 60Hz (Single Link); 2560 x 1600 @ 60Hz (Dual Link)
- nVidia 3D Vision Ready: Works with 120Hz LCD monitors and active shutter glasses to create a 3D environment with maximum resolution of up to 1920 x 1080
- HDCP compatible
- Support widescreen resolutions
- Video DynaSync Exclusive ATEN technology that eliminates boot-up display problems and optimizes resolution when switching between ports
- Power on detection if one of the computers is powered off, the switch will automatically switch to the next powered-on computer
- Console mouse port emulation/bypass feature that supports most mouse drivers and multifunction mice
- Console keyboard emulation/bypass feature that supports most gaming / multimedia keyboards
- Complete keyboard emulation for error-free booting
- Mac/Sun keyboard support and emulation*
- Multilingual keyboard mapping supports English, Japanese, and French keyboards
- Auto Scan Mode for monitoring all computers
- Firmware upgradable
* PC keyboard combinations emulate Mac/Sun keyboards
* Mac/Sun keyboard work only with their own
Package Contents
- 1x CS1784A USB DVI Dual Link KVMP Switch
- 4x 2L-7D02UD DVI-D KVM Cable Sets
- 1x 0AD6-1605-24EG Power Adapter
- 1x User Instructions
| Ports & interfaces | |
| Number of computers controlled The amount of computers controlled by this device. | 4 |
| Keyboard port type The type of socket in the device for connecting a keyboard e.g. USB. | USB |
| Mouse port type | USB |
| Video port type The type of socket in the device for connecting a video e.g. SCART. | DVI-I |
| DVI-I ports quantity This is the amount of DVI-I interfaces. Digital Visual Interface (DVI) is a video display interface developed by the Digital Display Working Group (DDWG). The digital interface is used to connect a video source to a display device, such as a computer monitor. DVI-I is DVI integrated, which means it can support digital and analog. | 4 |
| USB 2.0 Type-B ports quantity | 4 |
| Console ports | 3.5mm headphone, 3.5mm mic, DVI-I, USB A |
| Console USB ports quantity | 2 |
| USB hub |
 |
| USB 2.0 Type-A hub ports quantity | 2 |
| USB connector type The type of USB connector/port that this product has. | USB Type-A, USB Type-B |
| Audio connections Cables used to connect audio inputs or audio outputs to another device e.g, audio amplifier. |
|
| Headphone outputs Number of sockets /ports where headphones are connected. | 6 |
| Number of microphone inputs | 6 |
| DC-in jack The socket/plug where the DC electricity supply connects to the device. |
|
| Performance | |
| HD type Type of supported High Definition (e.g. Full HD, 4K Ultra HD). | WQXGA |
| Maximum resolution The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. | 2560 x 1600 pixels |
| Video bandwidth | 60 Hz |
| Scan interval | 1,5,99 s |
| Design | |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Housing material What the casing of the product is made of. | Metal |
| LED indicators |
|
| Push button |
|
| Hot keys |
|
| Display | |
| Built-in display A display which is part of the product, so you do not need to attach another display. |
 |
| Power | |
| Power source What is providing power for the product e.g. mains electricity. | DC |
| DC input voltage | 5.3 V |
| Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. | 5.91 W |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 50 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Storage relative humidity (H-H) | 0 - 80% |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 270 mm |
| Depth The distance from the front to the back of something. | 88 mm |
| Height The measurement of the product from head to foot or from base to top. | 55.5 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 2.32 kg |
| Packaging data | |
| Package width The distance from one side of the packaging to the other. | 98 mm |
| Package depth The distance from the front to the back of the packaging. | 325 mm |
| Package height The distance from the top to the bottom of the packaging. | 210 mm |
| Package weight Weight of the packaged product. | 2.56 kg |
| Packaging content | |
| Quick installation guide |
|
| Manual |
|
| Logistics data | |
| Master (outer) case net weight | 11.6 kg |
| Master (outer) case width | 342 mm |
| Master (outer) case length | 512 mm |
| Master (outer) case height | 232 mm |
| Master (outer) case gross weight | 13.5 kg |
| Products per master (outer) case | 5 pc(s) |
| SKU | 446789 |
| MPN | CS1784A-AT-U |
| Brand | ATEN |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 2 Years Warranty |
