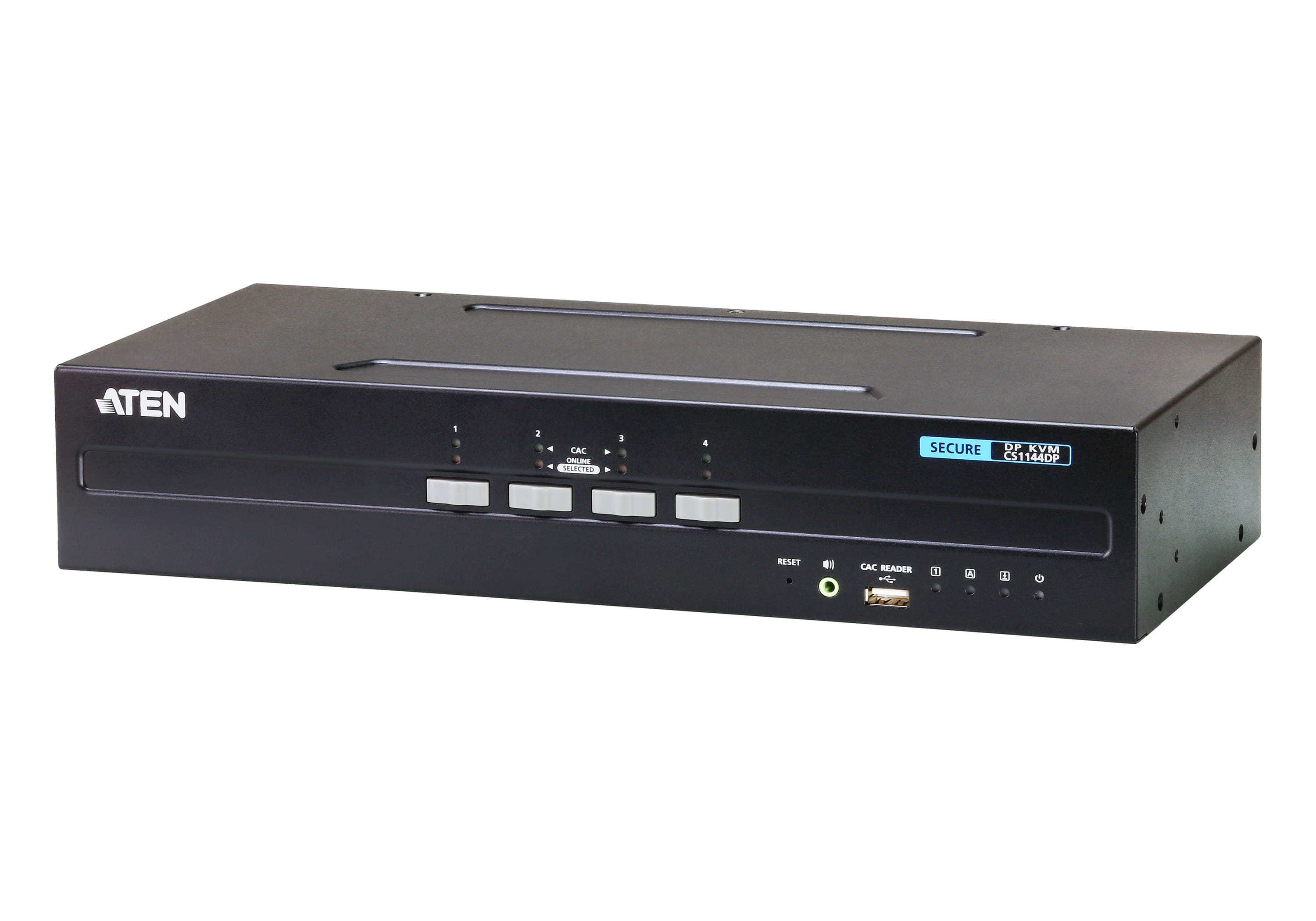

Aten 4-Port USB DisplayPort Dual Display KVM Switch
Item No:
699842
MPN:
CS1144DP-AU-U
$9,999.00
Payment options
Shipping Information
- Unavailable for shipping
- This product is not currently available for purchase
Store Availability
- Unavailable at Bankstown Store
- Unavailable at Castle Hill Store
- Unavailable at Northmead Store
ATEN 4 Port USB DisplayPort Dual Display Secure KVM Switch (PSS PP v3.0 Compliant), 3840 x 2160 pixels, 4K Ultra HD, 8 W, Black
ATEN PSS PP v3.0 Secure KVM Switch (CS1144DP) is specifically designed to meet the stringent security requirement of secure defense and intelligence installations. ATEN PSS PP v3.0 Secure KVM Switch (CS1144DP) is compliant with PSS PP v3.0 (Protection Profile for Peripheral Sharing Switch, Version 3.0) standard certified by the National Information Assurance Partnership (NIAP).
ATEN PSS PP v3.0 Secure KVM Switch (CS1144DP) provides isolation between computer sources and peripherals while sharing a single keyboard, mouse, monitor, speaker set, and Common Access Card (CAC) reader between connected computers of various security classifications. Compliance with PSS PP v3.0 ensures peripheral sharing capabilities provide maximum user data security when switching port focus, preventing unauthorized data flows or leakage between connected sources. Key protections include isolation and unidirectional data flow, restricted peripheral connectivity and filtering, user data protection, configurable device filtering and management, and always on tamper proof design, keeping sensitive assets isolated and providing advanced security and a user friendly design for instantly secure deployment.
With multi layered security, ATEN PSS PP v3.0 Secure KVM Switch (CS1144DP) ensures high level desktop security and data safekeeping for applications such as government agencies, finance, and other organizations that often handle sensitive or confidential data on separate networks.
ATEN PSS PP v3.0 Secure KVM Switch (CS1144DP) provides isolation between computer sources and peripherals while sharing a single keyboard, mouse, monitor, speaker set, and Common Access Card (CAC) reader between connected computers of various security classifications. Compliance with PSS PP v3.0 ensures peripheral sharing capabilities provide maximum user data security when switching port focus, preventing unauthorized data flows or leakage between connected sources. Key protections include isolation and unidirectional data flow, restricted peripheral connectivity and filtering, user data protection, configurable device filtering and management, and always on tamper proof design, keeping sensitive assets isolated and providing advanced security and a user friendly design for instantly secure deployment.
With multi layered security, ATEN PSS PP v3.0 Secure KVM Switch (CS1144DP) ensures high level desktop security and data safekeeping for applications such as government agencies, finance, and other organizations that often handle sensitive or confidential data on separate networks.
| Ports & interfaces | |
| Number of computers controlled The amount of computers controlled by this device. | 4 |
| Keyboard port type The type of socket in the device for connecting a keyboard e.g. USB. | USB, PS/2 |
| Mouse port type | USB, PS/2 |
| Video port type The type of socket in the device for connecting a video e.g. SCART. | DisplayPort |
| HDMI ports quantity The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards. | 2 |
| DisplayPorts quantity Number of DisplayPorts. A DisplayPort is a digital display interface developed by the Video Electronics Standards Association (VESA). The interface is primarily used to connect a video source to a display device such as a computer monitor, though it can also be used to carry audio, USB, and other forms of data. | 8 |
| USB 2.0 Type-B ports quantity | 8 |
| Console ports | HDMI, PS/2, USB A |
| Console USB ports quantity | 2 |
| Console HDMI ports quantity | 2 |
| USB connector type The type of USB connector/port that this product has. | USB Type-A, USB Type-B |
| PS/2 ports quantity The number of PS/2 connectors for keyboards and mice. Its name comes from the IBM Personal System/2. | 2 |
| Audio connections Cables used to connect audio inputs or audio outputs to another device e.g, audio amplifier. |
 |
| Headphone outputs Number of sockets /ports where headphones are connected. | 4 |
| Performance | |
| HD type Type of supported High Definition (e.g. Full HD, 4K Ultra HD). | 4K Ultra HD |
| Maximum resolution The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. | 3840 x 2160 pixels |
| Video bandwidth | 30 Hz |
| Design | |
| Rack mounting The type of mounting that can position devices in a shelving system (rack). |
 |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Housing material What the casing of the product is made of. | Metal |
| LED indicators |
|
| Push button |
|
| Display | |
| Built-in display A display which is part of the product, so you do not need to attach another display. |
|
| Power | |
| Power source What is providing power for the product e.g. mains electricity. | AC |
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 1 A |
| Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. | 8 W |
| Sustainability | |
| Sustainability certificates | RoHS |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 50 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 335 mm |
| Depth The distance from the front to the back of something. | 164 mm |
| Height The measurement of the product from head to foot or from base to top. | 66 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 2.13 kg |
| Packaging content | |
| Cables included | AC |
| Manual |
|
| SKU | 699842 |
| MPN | CS1144DP-AU-U |
| Brand | ATEN |
| Product Condition | Brand New/Unused |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.aten.com/ |
