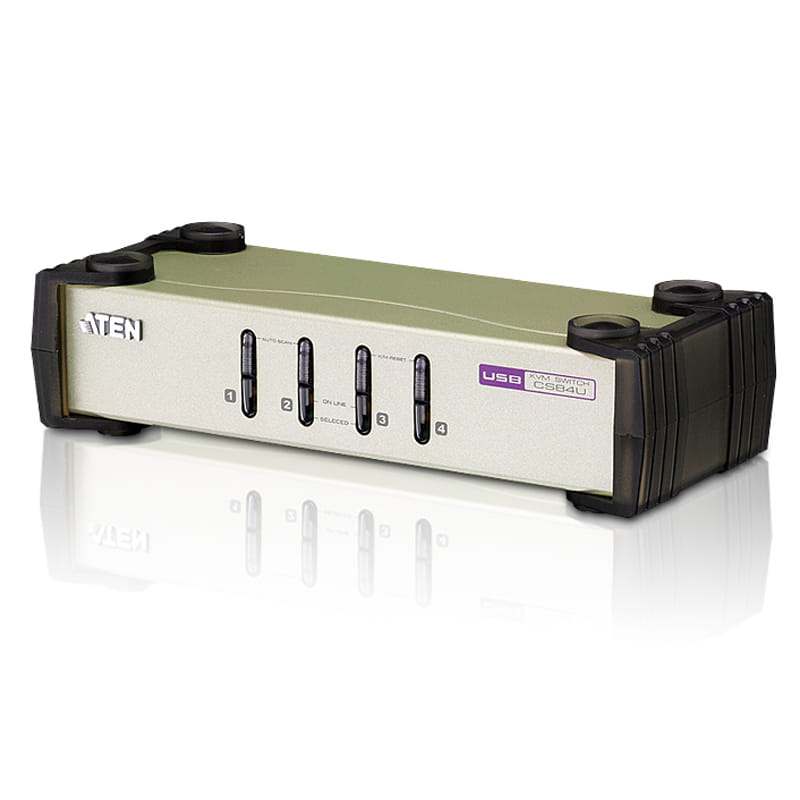

ATEN 4 PORT USB & PS/2 VGA KVM Switch
The CS84U PS/2-USB KVM Switch is a desktop control unit that allows users to access four computers from a single KVM console (PS/2 or USB keyboard and mouse, and VGA monitor). In addition, CS84U comes with ATEN's new Video DynaSync™ technology, which eliminates boot-up display problems and optimizes resolution.
Setup is fast and easy; simply plug cables into their appropriate ports. There is no software to configure, no installation routines, and no incompatibility problems. Since the CS84U intercepts keyboard input directly, it will work on multiple computing platforms
-
One PS/2-USB VGA console controls four VGA interface computers.
-
Dual Interface - supports computers with PS/2 or USB keyboards and mice
-
Computer selection via front panel pushbuttons, hotkeys, and mouse
-
Multiplatform support - Windows, Linux, Mac, and Sun
-
Superior video quality - 2048 x 1536; DDC2B
-
Video DynaSync™ - Exclusive ATEN technology eliminates bootup display problems and optimizes resolution when switching between ports
-
Console mouse port emulation/bypass feature supports most mouse drivers and multifunction mice
-
Complete keyboard emulation for error-free booting
-
Mac/Sun keyboard support and emulation*
-
Multilingual keyboard mapping - supports English, Japanese, and French keyboards
-
Gaming keyboard support
-
Auto Scan Mode for monitoring all computers
-
Firmware upgradable
-
Non-powered
* 1. PC keyboard combinations emulate Mac/Sun keyboards
2. Mac/Sun keyboard work only with their own computers
CS-84U
| Ports & interfaces | |
| Number of computers controlled The amount of computers controlled by this device. | 4 |
| Keyboard port type The type of socket in the device for connecting a keyboard e.g. USB. | USB, PS/2 |
| Mouse port type | USB, PS/2 |
| Video port type The type of socket in the device for connecting a video e.g. SCART. | VGA |
| USB 2.0 ports quantity Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black. | 2 |
| PS/2 ports quantity The number of PS/2 connectors for keyboards and mice. Its name comes from the IBM Personal System/2. | 2 |
| Audio connections Cables used to connect audio inputs or audio outputs to another device e.g, audio amplifier. |
 |
| DC-in jack The socket/plug where the DC electricity supply connects to the device. |
 |
| Performance | |
| Maximum resolution The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. | 2048 x 1536 pixels |
| Scan interval | 20 s |
| Design | |
| Product colour The colour e.g. red, blue, green, black, white. | Gray |
| Housing material What the casing of the product is made of. | Metal |
| LED indicators |
|
| RoHS compliance The Restriction of Hazardous Substances (RoHS) Directive aims to restrict certain dangerous substances commonly used in electrical and electronic equipment. Any RoHS compliant product is tested for the presence of Lead (Pb), Cadmium (Cd), Mercury (Hg), Hexavalent chromium (Hex-Cr), Polybrominated biphenyls (PBB), and Polybrominated diphenyl ethers (PBDE). PBB and PBDE are flame retardants used in several plastics. For Cadmium and Hexavalent chromium, there must be less than 0.01% of the substance by weight at raw homogeneous materials level. For Lead, PBB, and PBDE, there must be no more than 0.1% of the material, when calculated by weight at raw homogeneous materials. Any RoHS compliant component must have 100 ppm or less of mercury and the mercury must not have been intentionally added to the component. In the EU, some military and medical equipment are exempt from RoHS compliance. |
|
| Certification | CN ZL 99213861.2, CN ZL 01260527.1, CN ZL 02301212.9US 6564275, US 6464197, TW 174875, TW 081926 Windows7 |
| Power | |
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 5 |
| Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. | 1.2 W |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 50 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 87 mm |
| Depth The distance from the front to the back of something. | 210 mm |
| Height The measurement of the product from head to foot or from base to top. | 55 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 770 g |
| Packaging content | |
| Cables included | KVM |
| Quick installation guide |
|
| Other features | |
| Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless. | Wired |
| Ports quantity The number of ports or external interfaces to which other equipment can be connected. | 4 |
| Compatible operating systems List of desktop operating systems tested as compatible with this product. | Windows, Linux, Mac, Sun |
| Power requirements | 5VDC |
| Technical features | DDC2B |
| Display resolution at frequency Total number of pixels (horizontal and vertical) that can be displayed at a frequency | 2048 x 1536 @ 60 Hz |
| SKU | 234521 |
| MPN | CS84U-AT |
| Brand | ATEN |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Warranty Period | 2 Years Warranty |
| Warranty Contact | https://www.aten.com/ |
