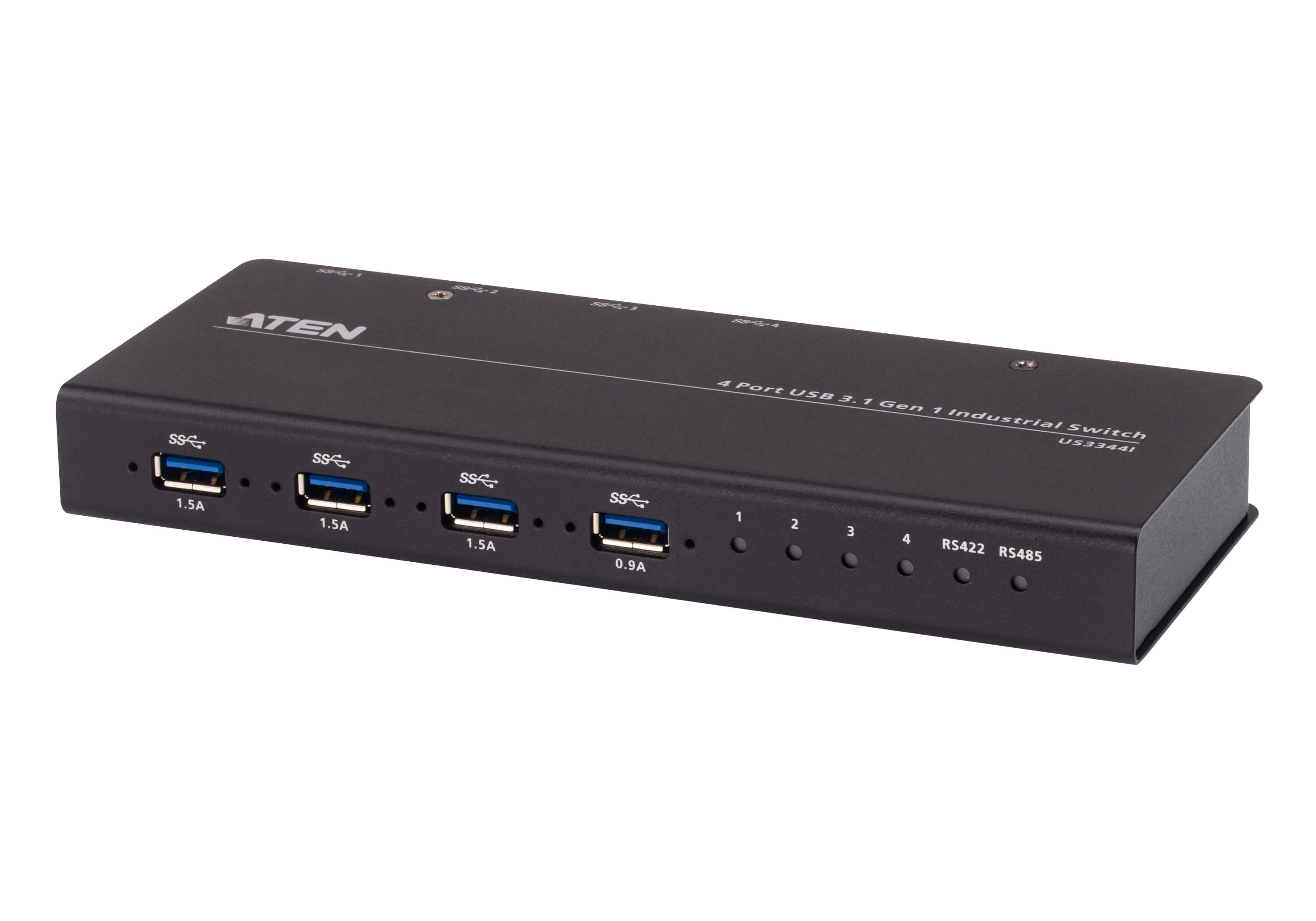

Aten Industrial Peripheral Switch 4x4 USB 3.1 Gen1, 4x Devices, 4x USB 3.1 Gen1 Ports, Remote Port Selector, Supports RS-422/RS485 Remote Controller
Aten 4x4 USB 3.1 Gen 1 Industrial Grade Hub Switch, up to 5Gbps data throughput, supports serial control RS422/RS485, Power adapter or DC terminal block power supported
| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity | 4 |
| DC-in jack The socket/plug where the DC electricity supply connects to the device. |
 |
| Performance | |
| Maximum data transfer rate | 5 Gbit/s |
| LED indicators |
|
| Hot-Plug support Device has hot-plug capability, which means that user can replace system components without shutting down the system. |
|
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Housing material What the casing of the product is made of. | Metal |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 50 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 80 mm |
| Depth The distance from the front to the back of something. | 200 mm |
| Height The measurement of the product from head to foot or from base to top. | 25 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 885 g |
| Package weight Weight of the packaged product. | 1.04 kg |
| Package depth The distance from the front to the back of the packaging. | 239 mm |
| Package width The distance from one side of the packaging to the other. | 59 mm |
| Package height The distance from the top to the bottom of the packaging. | 160 mm |
| Packaging content | |
| Cables included | USB Type-A - USB Type-B |
| Quick start guide Instructions, either online, as a computer program or in paper form, to allow you to set up and start using the product quickly. |
|
| Logistics data | |
| Products per master (outer) case | 5 pc(s) |
| Master (outer) case gross weight | 5.09 kg |
| Master (outer) case length | 32.5 cm |
| Master (outer) case width | 25 cm |
| Master (outer) case height | 17.5 cm |
| Master (outer) case net weight | 4.42 kg |
| SKU | 456359 |
| MPN | US3344I-AT |
| Brand | ATEN |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 2 Years Warranty |
| Warranty Contact | https://www.aten.com/ |
