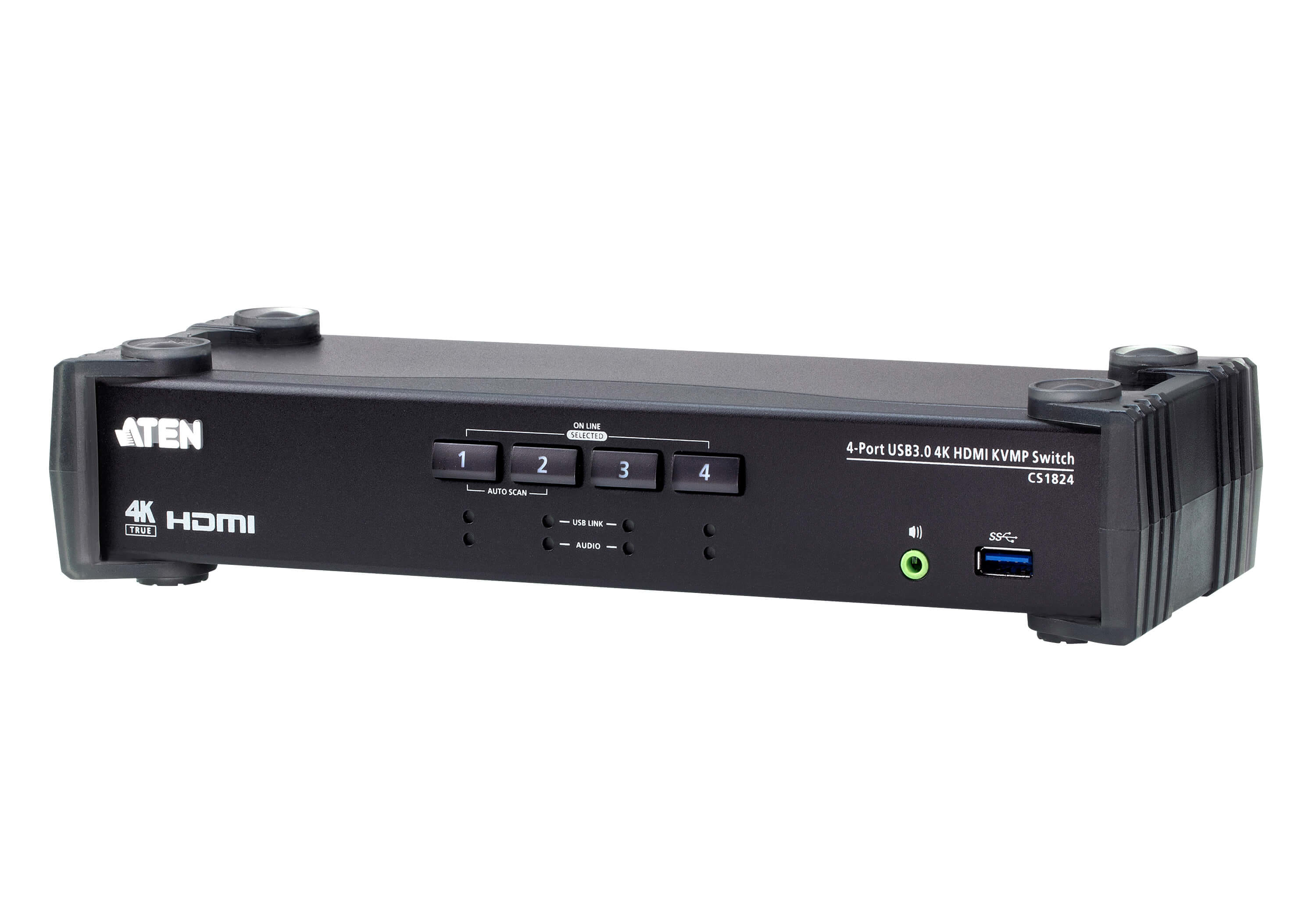

Aten Desktop KVMP Switch 4 Port Single Display 4k HDMI w/ audio mixer mode, Cables Included, Selection Via Front Panel
The ATEN CS1824 KVMP Switch offers effortless management of four HDMI interface computers from a single USB keyboard, mouse and HDMI monitor. Supporting the most superior video quality up to 4K DCI (4096 x 2160 @ 60Hz), the CS1824 optimizes user experience of multitasking.
With patented ATEN technology " Video DynaSync , users can enjoy better display resolution and faster switching between systems. What 's more, the default EDID mode is available for smooth power-up, high-quality display and eliminates monitor compatibility issue.
In addition, the CS1824 features Audio Mixer Mode which mixes audio sources from any two connected computers as audio output, benefiting users to be notified without missing any system alert even the KVM focus is set on other computers. With a built-in USB 3.1 Gen 1 hub, the CS1824 delivers data transfer rates up to 5 Gbps, allowing you to accelerate multimedia operations and share USB peripherals with ease.
Integrating these outstanding functionalities, the CS1824 provides a great advantage for those doing CGI work, graphic design, video post production, etc. to operate multiple tasks smoothly.
With patented ATEN technology " Video DynaSync , users can enjoy better display resolution and faster switching between systems. What 's more, the default EDID mode is available for smooth power-up, high-quality display and eliminates monitor compatibility issue.
In addition, the CS1824 features Audio Mixer Mode which mixes audio sources from any two connected computers as audio output, benefiting users to be notified without missing any system alert even the KVM focus is set on other computers. With a built-in USB 3.1 Gen 1 hub, the CS1824 delivers data transfer rates up to 5 Gbps, allowing you to accelerate multimedia operations and share USB peripherals with ease.
Integrating these outstanding functionalities, the CS1824 provides a great advantage for those doing CGI work, graphic design, video post production, etc. to operate multiple tasks smoothly.
| Ports & interfaces | |
| Number of computers controlled The amount of computers controlled by this device. | 4 |
| Keyboard port type The type of socket in the device for connecting a keyboard e.g. USB. | USB |
| Mouse port type | USB |
| Video port type The type of socket in the device for connecting a video e.g. SCART. | HDMI |
| HDMI ports quantity The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards. | 5 |
| HDMI version | 2.0 |
| HDCP High-bandwidth Digital Content Protection (HDCP) is a form of digital copy protection to prevent copying of digital audio and video content as it travels across connections. |
 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity | 4 |
| Console ports | 3.5mm headphone, HDMI, USB A |
| Console USB ports quantity | 4 |
| USB hub |
|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity | 2 |
| USB connector type The type of USB connector/port that this product has. | USB Type-A, USB Type-B |
| Serial ports quantity The number of serial ports in a computer or peripheral. A serial port is a serial communication physical interface through which information transfers in or out one bit at a time. The term "serial port" usually identifies hardware more or less compliant to the RS-232 standard, intended to interface with a modem or with a similar communication device. In modern computers and peripherals, serial ports have largely been replaced by USBs and other interfaces. | 1 |
| Audio connections Cables used to connect audio inputs or audio outputs to another device e.g, audio amplifier. |
|
| Headphone outputs Number of sockets /ports where headphones are connected. | 6 |
| DC-in jack The socket/plug where the DC electricity supply connects to the device. |
|
| Performance | |
| HD type Type of supported High Definition (e.g. Full HD, 4K Ultra HD). | 4K Ultra HD |
| Maximum resolution The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. | 4096 x 2160 pixels |
| Video bandwidth | 60 Hz |
| Scan interval | 1,99 s |
| Firmware upgradeable |
|
| Design | |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Housing material What the casing of the product is made of. | Metal, Plastic |
| LED indicators |
|
| Push button |
|
| Display | |
| Built-in display A display which is part of the product, so you do not need to attach another display. |
 |
| Power | |
| Power source What is providing power for the product e.g. mains electricity. | DC |
| DC input voltage | 5 V |
| Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. | 2.535 W |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 88 mm |
| Depth The distance from the front to the back of something. | 270 mm |
| Height The measurement of the product from head to foot or from base to top. | 55.5 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 2.24 kg |
| Packaging data | |
| Package width The distance from one side of the packaging to the other. | 98 mm |
| Package depth The distance from the front to the back of the packaging. | 325 mm |
| Package height The distance from the top to the bottom of the packaging. | 210 mm |
| Package weight Weight of the packaged product. | 2.54 kg |
| Logistics data | |
| Master (outer) case net weight | 11.2 kg |
| Master (outer) case width | 342 mm |
| Master (outer) case length | 512 mm |
| Master (outer) case height | 232 mm |
| Master (outer) case gross weight | 13.2 kg |
| Products per master (outer) case | 5 pc(s) |
| Technical details | |
| Sustainability certificates | RoHS |
| SKU | 442040 |
| MPN | CS1824-AT-U |
| Brand | ATEN |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 2 Years Warranty |
| Warranty Contact | https://www.aten.com/ |
