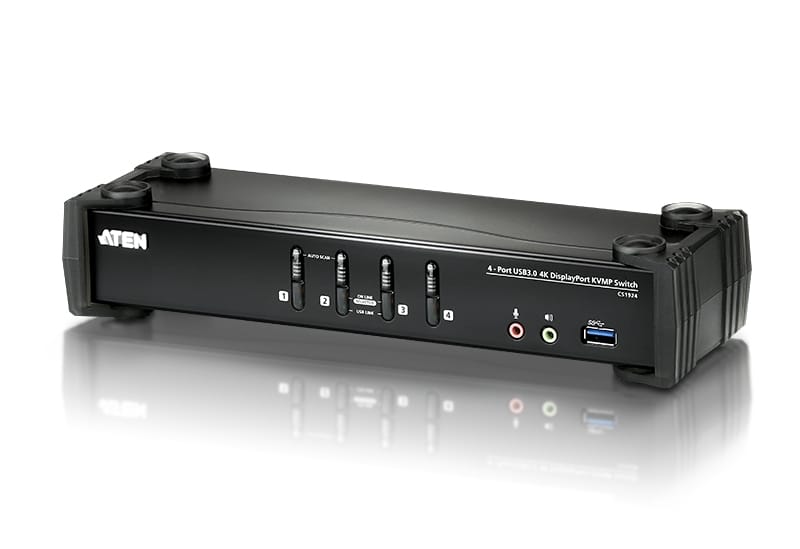

Aten 4 Port USB 3.0 4K DisplayPort KVMP Switch. Switch. Support HDCP, 4096 × 2160 @ 60Hz, DP1.2, Mouse emulation, Keyboard emulation, 4 DisplayPort, 4 USB and 8 Audio cables included
| Ports & interfaces | |
| Number of computers controlled The amount of computers controlled by this device. | 4 |
| Keyboard port type The type of socket in the device for connecting a keyboard e.g. USB. | USB |
| Mouse port type | USB |
| Video port type The type of socket in the device for connecting a video e.g. SCART. | DisplayPort |
| HDCP High-bandwidth Digital Content Protection (HDCP) is a form of digital copy protection to prevent copying of digital audio and video content as it travels across connections. |
 |
| Display connection |
|
| Console ports | USB A |
| Console USB ports quantity | 2 |
| USB hub |
|
| USB 2.0 ports quantity Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black. | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity | 6 |
| USB connector type The type of USB connector/port that this product has. | USB Type-A, USB Type-B |
| USB version Universal Serial Bus (USB) is an industry standard developed in the mid-1990s that defines the interface used for connection, communication and power supply between computers and electronic devices. Every new version - for example 1.1, 2.0, 3.0 - is much faster than the previous one. | 3.2 Gen 1 (3.1 Gen 1) |
| Audio connections Cables used to connect audio inputs or audio outputs to another device e.g, audio amplifier. |
|
| Headphone outputs Number of sockets /ports where headphones are connected. | 6 |
| Number of microphone inputs | 6 |
| DC-in jack The socket/plug where the DC electricity supply connects to the device. |
|
| Network | |
| Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable. |
 |
| Performance | |
| Maximum resolution The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. | 4096 x 2160 pixels |
| Maximum digital resolution | 4096 x 2160 pixels |
| Scan interval | 1,5,10,15,20,25,30,35,40,45,50,55,60,70,80,90,99 s |
| Hot-Plug support Device has hot-plug capability, which means that user can replace system components without shutting down the system. |
|
| Audio channels | 2.1 |
| Design | |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Housing material What the casing of the product is made of. | Metal, Plastic |
| LED indicators | Activity, Link |
| Push button |
|
| Display | |
| Built-in display A display which is part of the product, so you do not need to attach another display. |
|
| System requirements | |
| Windows operating systems supported Windows vesions wich can be used with the device. | Windows 10 Home,Windows 2000,Windows 7 Home Premium,Windows 8,Windows 8.1,Windows Vista Home Premium,Windows XP Home |
| Linux operating systems supported 8 RT. Linux (9.4, 9.5), Red Hat Enterprise Linux 5.0 (supported with a pre-built package); SUSE Linux (10.3, 11.0, 11, 11.1, 11.2), Fedora (9, 9.0, 10, 10.0, 11.0, 11, 12, 12.0), Ubuntu (8.04, 8.04.1, 8.04.2, 8.10, 9.04, 9.10, 10.04), Debian (5.0, 5.0.1, 5.0.2, 5.0.3) | RedHat EL Linux 6.0,RedHat EL Linux 7.0,SuSE Linux 10,SuSE Linux 10.2,SuSE Linux 10.3,SuSE Linux 11,SuSE Linux 11.1,SuSE Linux 11.2,SuSE Linux 12.0,SuSE Linux 9.3 |
| Mac operating systems supported Mac operating systems e.g. OS X can be used with the device. | Mac OS 9.0, Mac OS 9.1, Mac OS 9.2, Mac OS X 10.0 Cheetah, Mac OS X 10.1 Puma, Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.2 Jaguar, Mac OS X 10.3 Panther, Mac OS X 10.4 Tiger, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 50 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 88 mm |
| Depth The distance from the front to the back of something. | 270 mm |
| Height The measurement of the product from head to foot or from base to top. | 55.5 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 910 g |
| Packaging content | |
| Cables included | Audio (3.5mm), DisplayPort, USB |
| Manual |
|
| AC adapter included |
|
| Other features | |
| Power requirements | 5V DC |
| Technical details | |
| Sustainability certificates | RoHS |
| SKU | 359604 |
| MPN | CS1924-AT-U |
| Brand | ATEN |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Warranty Period | 2 Years Warranty |
| Warranty Contact | https://www.aten.com/ |
