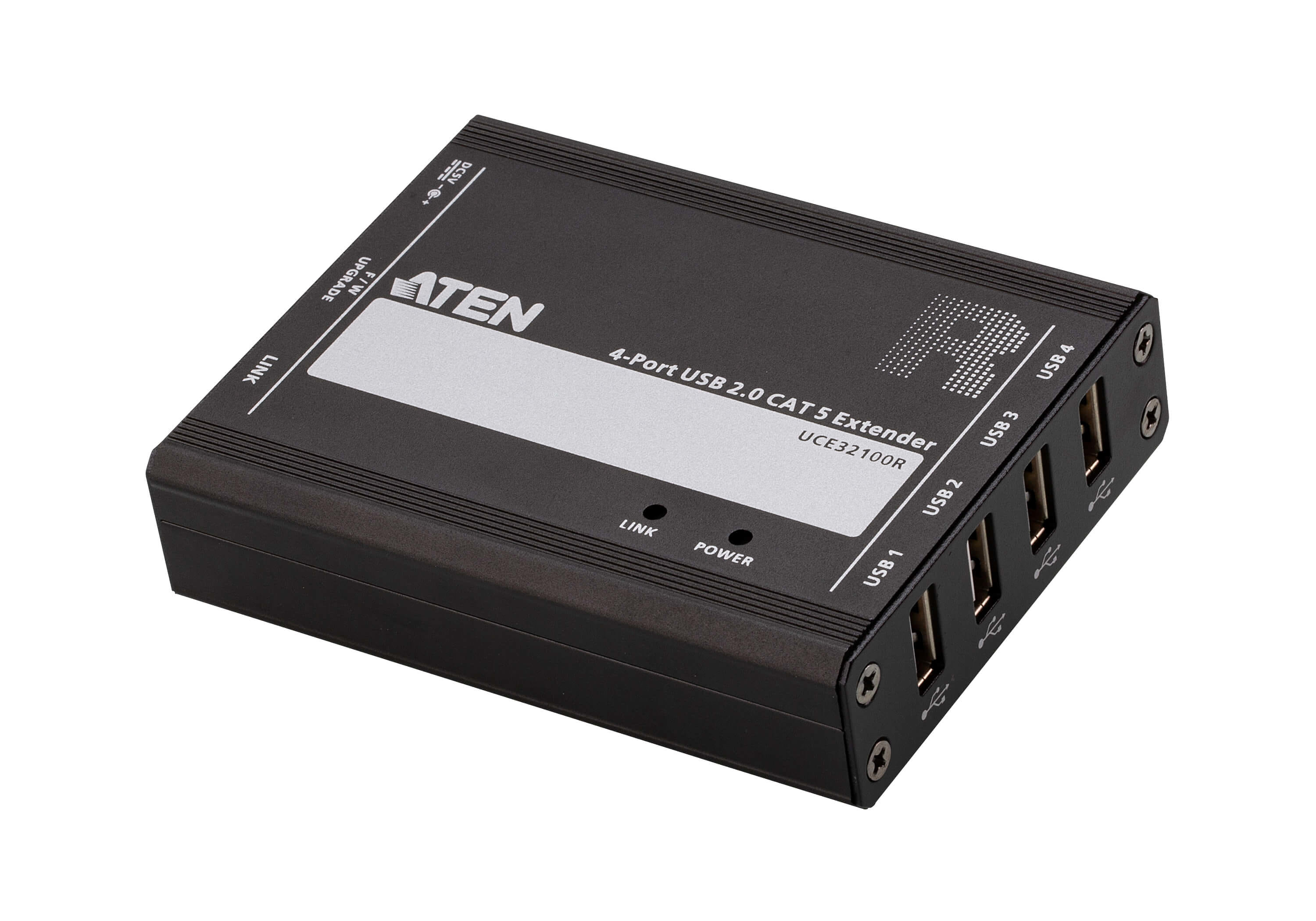

ATEN UCE32100-AT-U, Transmitter & receiver, Wired, 100 m, Cat5, Black, Metal
The UCE32100 is a 4-port USB 2.0 CAT 5 Extender is a two-unit device that serves as a Transmitter and a Receiver. It provides a durable, high quality connection that harnesses the full capability of the USB 2.0 standard, to ensure reliable data communication.
The UCE32100 can extend the USB transmission distance of up to 100 meters from your computer via a Cat 5 Ethernet cable. The power supply at the receiver UCE32100 unit helps provide sufficient power to any type of USB device, such as POS, flash drives, webcams, scanners, or printers, etc.
A true plug-and-play solution, the UCE32100 is compatible with all leading operating systems. With its durable metal housing, this high-quality USB extender provides a fast and flexible solution for industrial applications. In addition, the compact size with wall mounting and din rail included enables space-saving installation.
1x UCE32100T USB 2.0 CAT 5 Transmitter
1x UCE32100R USB 2.0 CAT 5 Receiver
1x LIN6-04U1-V1BG USB 2.0 Type-A Male to Type-B Male Cable
1x 0AD8-8005-0MA Power Adapter
1x LIN2-418K-E12G Power Cord
4x Mounting Kit
2x Din Rail
2x DC Jack Lock Kit
2x Rubber Feet Sets
1x User Instructions
The UCE32100 can extend the USB transmission distance of up to 100 meters from your computer via a Cat 5 Ethernet cable. The power supply at the receiver UCE32100 unit helps provide sufficient power to any type of USB device, such as POS, flash drives, webcams, scanners, or printers, etc.
A true plug-and-play solution, the UCE32100 is compatible with all leading operating systems. With its durable metal housing, this high-quality USB extender provides a fast and flexible solution for industrial applications. In addition, the compact size with wall mounting and din rail included enables space-saving installation.
1x UCE32100T USB 2.0 CAT 5 Transmitter
1x UCE32100R USB 2.0 CAT 5 Receiver
1x LIN6-04U1-V1BG USB 2.0 Type-A Male to Type-B Male Cable
1x 0AD8-8005-0MA Power Adapter
1x LIN2-418K-E12G Power Cord
4x Mounting Kit
2x Din Rail
2x DC Jack Lock Kit
2x Rubber Feet Sets
1x User Instructions
| Features | |
| Type Characteristics of the device. | Transmitter & receiver |
| Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless. | Wired |
| Maximum transfer distance The greatest distance over which the data/signal can be transferred. | 100 m |
| Cable types supported | Cat5 |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Material The material from which a thing is or can be made e.g. wood, plastic. | Metal |
| LED indicators |
 |
| Transmitter | |
| Transmitter local keyboard/mouse port type | USB |
| RJ-45 ports quantity (transmitter) | 1 |
| Receiver | |
| Receiver local keyboard/mouse port type | USB |
| RJ-45 ports quantity (receiver) | 1 |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 50 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 70 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Storage relative humidity (H-H) | 0 - 80% |
| Packaging data | |
| Package width The distance from one side of the packaging to the other. | 100 mm |
| Package depth The distance from the front to the back of the packaging. | 283 mm |
| Package height The distance from the top to the bottom of the packaging. | 173 mm |
| Package weight Weight of the packaged product. | 1.21 kg |
| Technical details | |
| Dimensions (WxDxH) Dimensions of the product (Width x Depth x Height). | 101.5 x 79 x 24.4 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 900 g |
| Packaging content | |
| Manual |
|
| Quick installation guide |
|
| SKU | 446321 |
| MPN | UCE32100-AT-U |
| Brand | ATEN |
| Product Condition | Brand New/Unused |
| Product Use | General |
| Stock Availability | Available for Shipping |
