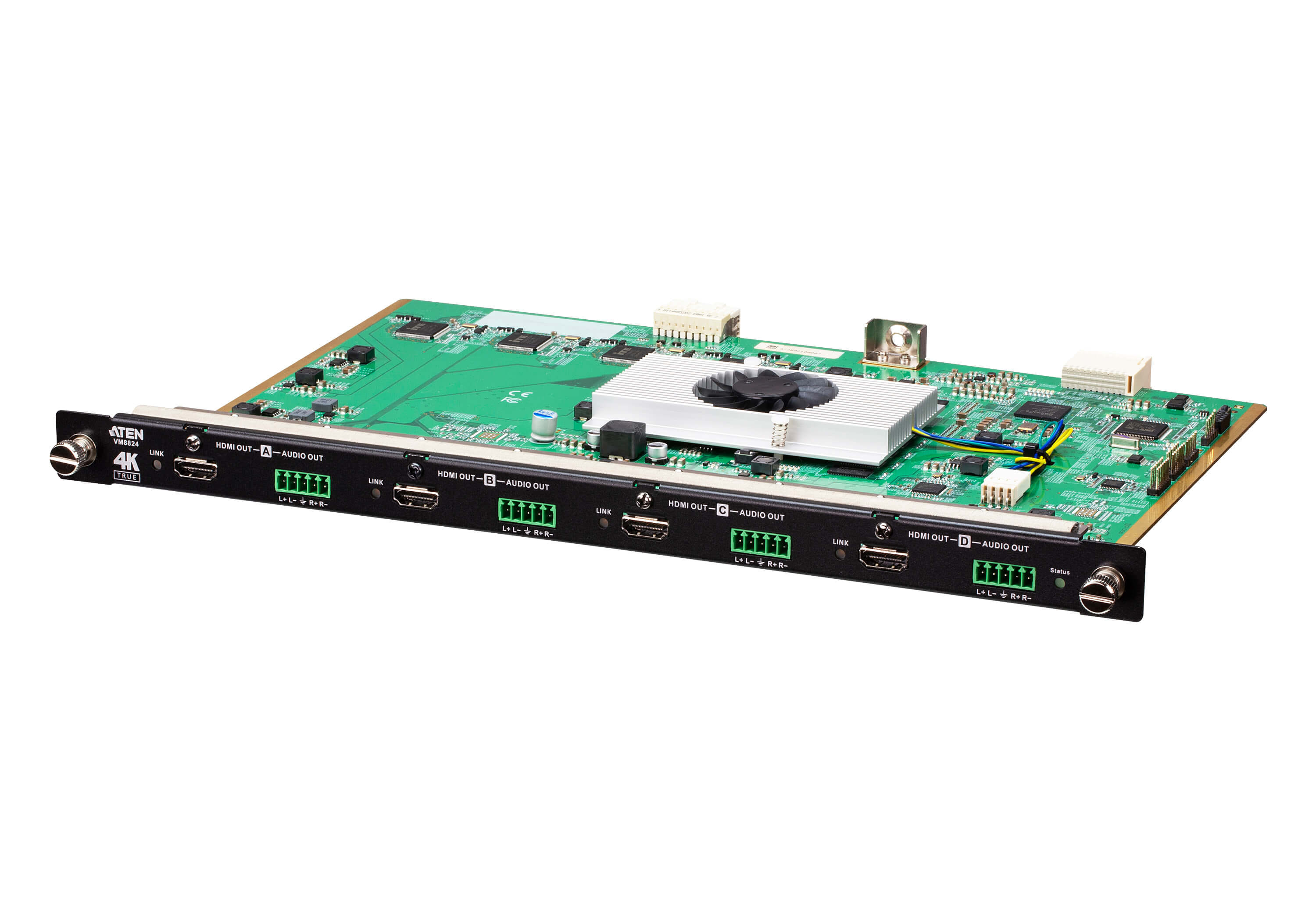

Aten 4 Port True 4K HDMI Output Board
Item No:
700595
MPN:
VM8824-AT
$5,399.00
Payment options
Shipping Information
- Unavailable for shipping
- This product is not currently available for purchase
Store Availability
- Unavailable at Bankstown Store
- Unavailable at Castle Hill Store
- Unavailable at Northmead Store
ATEN 4-Port True 4K HDMI Output Board with Scaler, Black, Aten VM3250, VM0404HB, VM0808HB, 38.97 W, 238 mm, 352 mm, 23.3 mm
The VM8824 is a True 4K HDMI output board that works with an ATEN Modular Matrix Switch to offer an easy way to route 4 analog/digital audio/video sources to 4 HDMI displays with True 4K high-definition images support. In addition to the HDMI interface that carries digital A/V signal, the VM8824 also provides 4 stereo audio output ports that enable HDMI audio extraction.
Considering video wall applications always require fast video switching and resolution adaptation, the VM8824 supports Seamless Switch technology that provides real-time video switching, a built in 4K scaler that handles different video resolutions, and the EDID Expert technology for fast smooth switching between displays. All of ATEN's VM series input/output boards support hot-swappable installation that gives system integrators great flexibility and efficiency for maintenance. The VM series input/output boards along with ATEN Modular Matrix Switches offer ideal solutions that perfectly meet your demands for multi-interface video applications.
1x VM8824 4-Port True 4K HDMI Output Board
4x Terminal Blocks
1x User Instructions
Considering video wall applications always require fast video switching and resolution adaptation, the VM8824 supports Seamless Switch technology that provides real-time video switching, a built in 4K scaler that handles different video resolutions, and the EDID Expert technology for fast smooth switching between displays. All of ATEN's VM series input/output boards support hot-swappable installation that gives system integrators great flexibility and efficiency for maintenance. The VM series input/output boards along with ATEN Modular Matrix Switches offer ideal solutions that perfectly meet your demands for multi-interface video applications.
1x VM8824 4-Port True 4K HDMI Output Board
4x Terminal Blocks
1x User Instructions
| Design | |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Compatibility The other products, software and hardware this product can be used with. | Aten VM3250, VM0404HB, VM0808HB |
| Ports & interfaces | |
| HDMI ports quantity The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards. | 4 |
| Power | |
| Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. | 38.97 W |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 238 mm |
| Depth The distance from the front to the back of something. | 352 mm |
| Height The measurement of the product from head to foot or from base to top. | 23.3 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 650 g |
| Packaging data | |
| Package width The distance from one side of the packaging to the other. | 285 mm |
| Package depth The distance from the front to the back of the packaging. | 426 mm |
| Package height The distance from the top to the bottom of the packaging. | 57 mm |
| Package weight Weight of the packaged product. | 1 kg |
| Packaging content | |
| Quick start guide Instructions, either online, as a computer program or in paper form, to allow you to set up and start using the product quickly. |
 |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 60 °C |
| Storage relative humidity (H-H) | 0 - 80% |
| Logistics data | |
| Products per master (outer) case | 2 pc(s) |
| Master (outer) case gross weight | 2.5 kg |
| Master (outer) case length | 440 mm |
| Master (outer) case width | 300 mm |
| Master (outer) case height | 138 mm |
| Master (outer) case net weight | 1.3 kg |
| SKU | 700595 |
| MPN | VM8824-AT |
| Brand | ATEN |
| Product Condition | Brand New/Unused |
| Product Use | General |
| Warranty Period | 2 Years Warranty |
| Warranty Contact | https://www.aten.com/ |
