The VS481A 4 Port HDMI Switch allows you to quickly and easily share your HDMI display device with 4 HDMI input sources. The VS481A allows convenient switching between digital devices such as DVD players, Satelite receivers, Digital Camcorder. The VS481A allows you to select the desired input source via a remote control unit and pushbuttons located on the switch

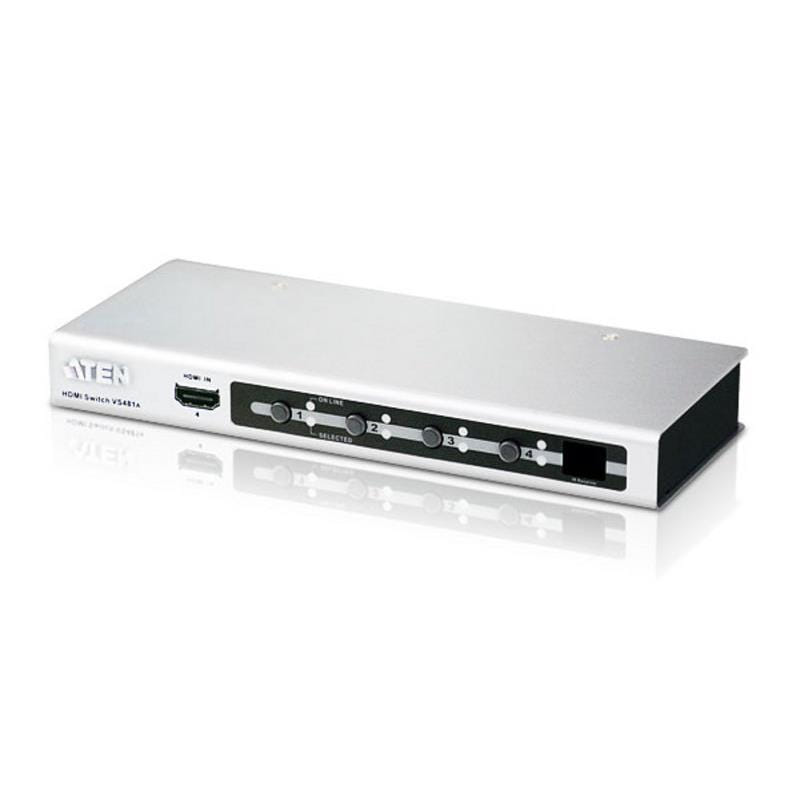

ATEN 4 Port HDMI Switch
The VS481A 4 Port HDMI Switch allows you to quickly and easily share your HDMI display device with 4 HDMI input sources. The VS481A allows convenient switching between digital devices such as DVD players, Satelite receivers, Digital Camcorder. The VS481A allows you to select the desired input source via a remote control unit and pushbuttons located on the switch
-
Allows up to four HDMI A/V source to be connected to one HDMI display
-
Toggle between A/V sources using remote control or front panel pushbuttons
-
Superior video quality - HDTV resolutions of 480p, 720p, 1080i, 1080p (1920x1080); VGA, SVGA, SXGA, UXGA (1600x1200) and WUXGA(1920x1200)
-
HDMI (3D, Deep Color)
-
Supports Dolby True HD and DTS HD Master Audio
-
Up to 60 Hz refresh rate
-
Long distance transmission - up to 15m (24 AWG)
-
Built-in bi-directional RS-232 serial remote port for high-end system control
-
Power On Detection – if one of the HDMI source devices is powered off, the VS481A will automatically switch to the next powered on device
-
Plug-and-play - no software installation required
-
DDC Compatible
-
HDCP 1.4 compliant
-
Signaling rates up to 2.25 Gbps in support of 1080p display
-
All-metal casing
-
LED indication of video source devices
-
Easy and affordable way to add four HDMI inputs to your home theater system
| Ports & interfaces | |
| Video port type The type of socket in the device for connecting a video e.g. SCART. | HDMI |
| HDMI ports quantity The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards. | 5 |
| HDMI in Port (socket) for HDMI input. | 4 |
| Number of HDMI outputs Port (socket) for HDMI output. | 1 |
| RS-232 ports The number of sockets (ports) for RS-232. An RS-232 serial port was once a standard feature of a personal computer, used for connections to modems, printers, mice, data storage, uninterruptible power supplies, and other peripheral devices. Now it has been largely replaced by USB and other ports. | 1 |
| DC-in jack The socket/plug where the DC electricity supply connects to the device. |
 |
| Features | |
| Product colour The colour e.g. red, blue, green, black, white. | Silver |
| Consumer Electronics Control (CEC) support |
|
| Plug and Play Indicates whether this product supports is "plug and play". Plug and play is hardware or software that, after being installed ("plugged in"), can immediately be used ("played with"), as opposed to hardware or software which requires configuration. |
|
| HDCP High-bandwidth Digital Content Protection (HDCP) is a form of digital copy protection to prevent copying of digital audio and video content as it travels across connections. |
|
| Material The material from which a thing is or can be made e.g. wood, plastic. | Metal |
| Maximum refresh rate | 60 Hz |
| Maximum operating distance The maximum distance from which you can operate the device. | 15 m |
| Supported graphics resolutions The graphic resolutions that can be displayed by the device. The graphic resolution describes the width and height dimensions of a display, such as a computer monitor, measured in pixels. | 640 x 480 (VGA),800 x 600 (SVGA),1280 x 1024 (SXGA),1600 x 1200 (UXGA),1920 x 1200 (WUXGA) |
| Supported video modes The video modes that can be displayed by the device. | 480p,720p,1080i,1080p |
| Bandwidth | 6.75 Gbit/s |
| LED indicators |
|
| Maximum resolution The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. | 1920 x 1080 pixels |
| Cable length How long the cable is. | 1.8 m |
| 3D The device can be used with 3D technology. |
|
| HD type Type of supported High Definition (e.g. Full HD, 4K Ultra HD). | Full HD |
| Dolby technologies | DTS-HD Master Audio,Dolby TrueHD |
| Input impedance | 100 Ω |
| Output impedance | 100 Ω |
| HDCP version | 1.4 |
| Power | |
| Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. | 1.87 W |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 82.7 mm |
| Depth The distance from the front to the back of something. | 200 mm |
| Height The measurement of the product from head to foot or from base to top. | 25 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 670 g |
| Packaging data | |
| Package width The distance from one side of the packaging to the other. | 62 mm |
| Package depth The distance from the front to the back of the packaging. | 283 mm |
| Package height The distance from the top to the bottom of the packaging. | 173 mm |
| Package weight Weight of the packaged product. | 835 g |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Remote control included Component of an electronics device, most commonly a television set, DVD player and home theater systems originally used for operating the device wirelessly from a short line-of-sight distance. |
|
| User guide |
|
| Cables included | HDMI |
| AC adapter included |
|
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 50 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Storage relative humidity (H-H) | 0 - 80% |
| Logistics data | |
| Master (outer) case width | 315 mm |
| Master (outer) case length | 490 mm |
| Master (outer) case height | 178 mm |
| Master (outer) case gross weight | 8.9 kg |
| Products per master (outer) case | 10 pc(s) |
| Master (outer) case net weight | 6.7 kg |
