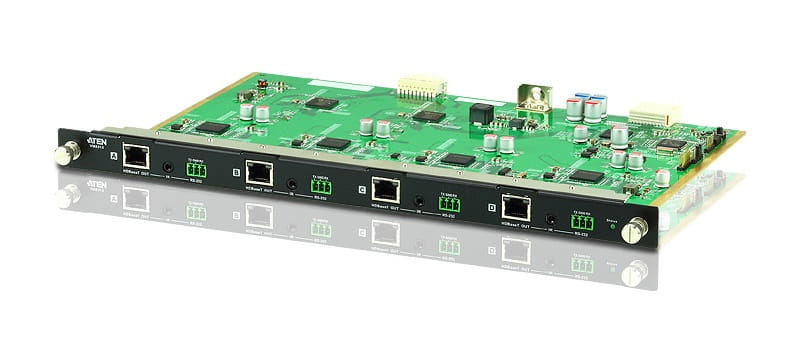

ATEN 4-Port HDBaseT Output Board for VM1600 / VM3200, Black, Metal, Aten VM1600A/VM3200, 12.2 W, 0 - 40 DegC, 0 - 80%
The VM8514 4-Port HDBaseT Output Board offers an easy way route 4 HDBaseT transmitters to 4 HDBaseT receivers, and in combination with the ATEN Modular Matrix Switches to provide the ability of routing up to 32 input and 32 output HDBaseT connections.
1x VM8514 4-Port HDBaseT Output Board
4x JCTN-3401-103G Terminal Block Connectors
1x 2xRT-0003G-1 IR Transmitter
1x 2xRT-0004G IR Receiver
1x User Instructions
1x VM8514 4-Port HDBaseT Output Board
4x JCTN-3401-103G Terminal Block Connectors
1x 2xRT-0003G-1 IR Transmitter
1x 2xRT-0004G IR Receiver
1x User Instructions
| Design | |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Material The material from which a thing is or can be made e.g. wood, plastic. | Metal |
| Compatibility The other products, software and hardware this product can be used with. | Aten VM1600A/VM3200 |
| Ports & interfaces | |
| RJ-45 ports quantity | 4 |
| Power | |
| Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. | 12.2 W |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 60 °C |
| Storage relative humidity (H-H) | 0 - 80% |
| Logistics data | |
| Products per master (outer) case | 2 pc(s) |
| Master (outer) case gross weight | 2.53 kg |
| Master (outer) case length | 440 mm |
| Master (outer) case width | 300 mm |
| Master (outer) case height | 138 mm |
| Master (outer) case net weight | 1.27 kg |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 238 mm |
| Depth The distance from the front to the back of something. | 352 mm |
| Height The measurement of the product from head to foot or from base to top. | 23.3 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 635 g |
| Packaging data | |
| Package width The distance from one side of the packaging to the other. | 285 mm |
| Package depth The distance from the front to the back of the packaging. | 426 mm |
| Package height The distance from the top to the bottom of the packaging. | 57 mm |
| Package weight Weight of the packaged product. | 1.02 kg |
| SKU | 646590 |
| MPN | VM8514-AT |
| Brand | ATEN |
| Product Condition | Brand New/Unused |
| Product Use | General |
| Warranty Period | 2 Years Warranty |
| Warranty Contact | https://www.aten.com/ |
