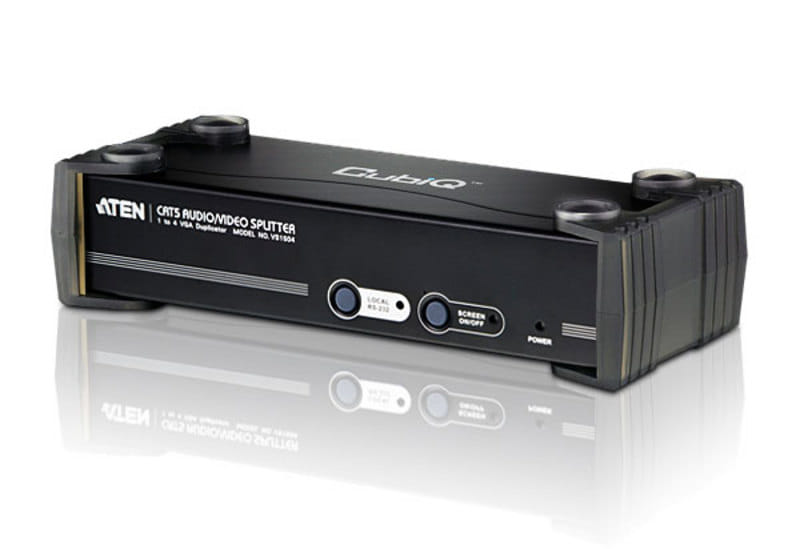

ATEN VS1504T, VGA, 2x VGA, 1920 x 1200 pixels, Black, 200 m, 1280 x 1024 (SXGA), 1600 x 1200 (UXGA), 1920 x 1200 (WUXGA)
Features
- One video input to 4 video outputs
- Cascadable to three levels - provides up to thousands of video signals when combined in an installation with ATEN receiving devices*
- Audio and serial enabled
- Uses Cat 5e (or higher) cable to extend displays up to 150 m, 450 m when combined with aten receiving devices
- High quality video - supports 1920 x 1200 @ 60Hz
- Group screens off/on function
- Provide a RS-232 channel for selection
Package Contents
- 1x VS1504 Cat 5 Audio/Video Splitter
- 1x VGA/Audio Cable (1.8 m)
- 1x Power Adapter
- 1x User Instructions
- One video input to 4 video outputs
- Cascadable to three levels - provides up to thousands of video signals when combined in an installation with ATEN receiving devices*
- Audio and serial enabled
- Uses Cat 5e (or higher) cable to extend displays up to 150 m, 450 m when combined with aten receiving devices
- High quality video - supports 1920 x 1200 @ 60Hz
- Group screens off/on function
- Provide a RS-232 channel for selection
Package Contents
- 1x VS1504 Cat 5 Audio/Video Splitter
- 1x VGA/Audio Cable (1.8 m)
- 1x Power Adapter
- 1x User Instructions
| Ports & interfaces | |
| Video port type The type of socket in the device for connecting a video e.g. SCART. | VGA |
| Video out | 2x VGA |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 5 |
| Video ports quantity The number of ports (sockets) for video input or output. | 2 |
| Audio ports quantity | 2 |
| Serial ports quantity The number of serial ports in a computer or peripheral. A serial port is a serial communication physical interface through which information transfers in or out one bit at a time. The term "serial port" usually identifies hardware more or less compliant to the RS-232 standard, intended to interface with a modem or with a similar communication device. In modern computers and peripherals, serial ports have largely been replaced by USBs and other interfaces. | 2 |
| DC-in jack The socket/plug where the DC electricity supply connects to the device. |
 |
| Features | |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Maximum resolution The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. | 1920 x 1200 pixels |
| Maximum operating distance The maximum distance from which you can operate the device. | 200 m |
| Supported graphics resolutions The graphic resolutions that can be displayed by the device. The graphic resolution describes the width and height dimensions of a display, such as a computer monitor, measured in pixels. | 1280 x 1024 (SXGA), 1600 x 1200 (UXGA), 1920 x 1200 (WUXGA) |
| Power LED |
|
| Certification | RoHS Windows 7 TW 152473, US 6119148, CN ZL 98218061.6, DE 29814640.1 |
| Network | |
| Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable. |
|
| Cable types supported | Cat5 |
| Power | |
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 5.3 V |
| Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. | 4.7 W |
| USB powered The device can be powered via a USB connection. |
 |
| Weight & dimensions | |
| Dimensions (WxDxH) Dimensions of the product (Width x Depth x Height). | 88 x 210 x 55.5 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 750 g |
| Packaging content | |
| Cables included | AUX, VGA |
| User guide |
|
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 50 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| SKU | 700655 |
| MPN | VS1504T-AT-U |
| Brand | ATEN |
| Product Condition | Brand New/Unused |
| Adapter Type | Networking Adapter, Audio Adapter |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.aten.com/ |
