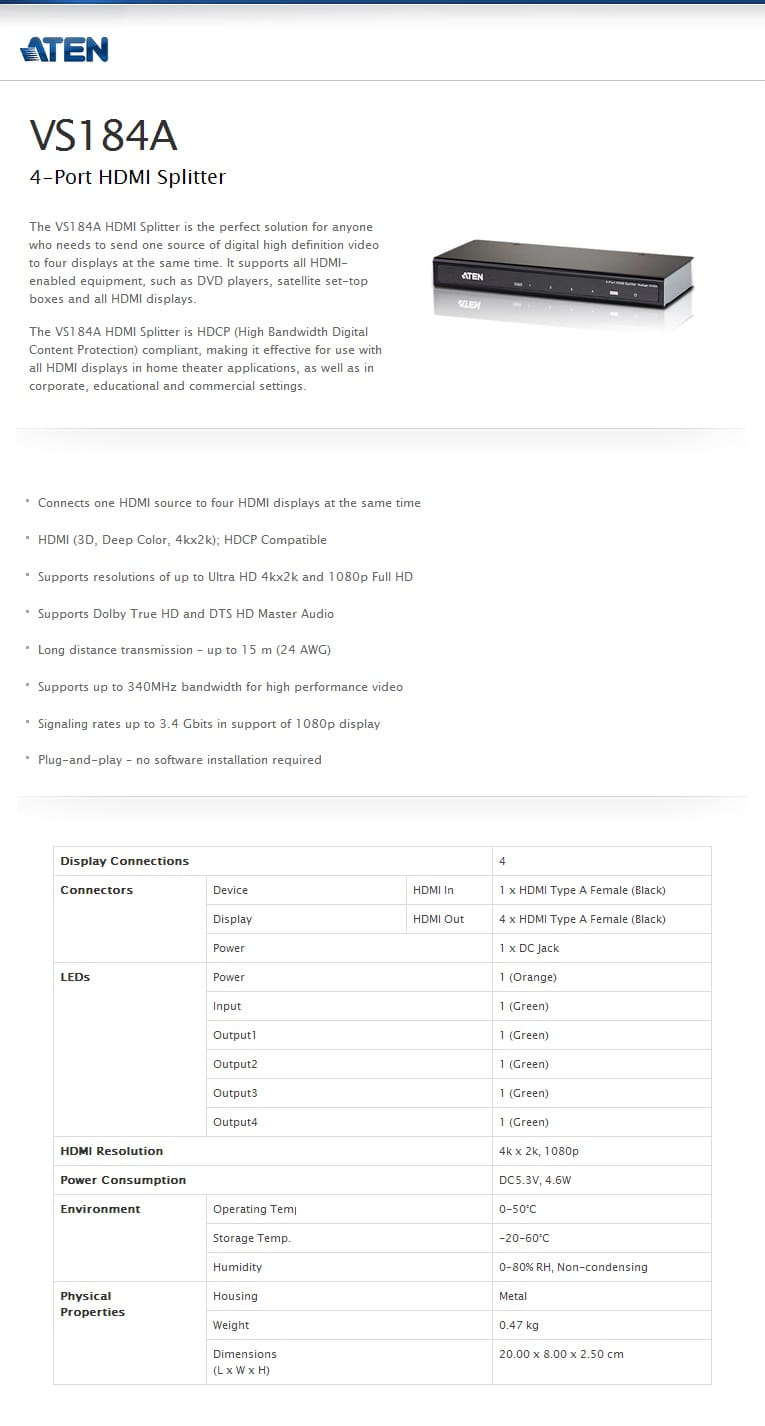

The VS184A HDMI Splitter is the perfect solution for anyone who needs to send one source of digital high definition video to four displays at the same time. It supports all HDMI-enabled equipment, such as DVD players, satellite set-top boxes and all HDMI displays.
| Ports & interfaces | |
| Video port type The type of socket in the device for connecting a video e.g. SCART. | HDMI |
| Video out | 4x HDMI |
| Video ports quantity The number of ports (sockets) for video input or output. | 5 |
| DC-in jack The socket/plug where the DC electricity supply connects to the device. |
 |
| Features | |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Maximum resolution The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. | 4096 x 2160 pixels |
| HD type Type of supported High Definition (e.g. Full HD, 4K Ultra HD). | 4K Ultra HD |
| 3D The device can be used with 3D technology. |
|
| Maximum operating distance The maximum distance from which you can operate the device. | 15 m |
| Maximum refresh rate | 60 Hz |
| Bandwidth Bandwidth is the difference between the upper and lower frequencies in a continuous set of frequencies. It is typically measured in Hertz (Hz). A key characteristic of bandwidth is that any band of a given width can carry the same amount of information, regardless of where that band is located in the frequency spectrum. For example, a 3 kHz band can carry a telephone conversation whether that band is at baseband (as in a POTS telephone line) or modulated to some higher frequency. | 340 MHz |
| HDCP version | 1.4 |
| HDCP High-bandwidth Digital Content Protection (HDCP) is a form of digital copy protection to prevent copying of digital audio and video content as it travels across connections. |
|
| Plug and Play Indicates whether this product supports is "plug and play". Plug and play is hardware or software that, after being installed ("plugged in"), can immediately be used ("played with"), as opposed to hardware or software which requires configuration. |
|
| LED indicators |
|
| Dolby technologies | DTS-HD Master Audio,Dolby TrueHD |
| Power | |
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 5 V |
| Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. | 6.02 W |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 80 mm |
| Depth The distance from the front to the back of something. | 200 mm |
| Height The measurement of the product from head to foot or from base to top. | 25 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 703 g |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Package width The distance from one side of the packaging to the other. | 59 mm |
| Package depth The distance from the front to the back of the packaging. | 239 mm |
| Package height The distance from the top to the bottom of the packaging. | 160 mm |
| Package weight Weight of the packaged product. | 825 g |
| Packaging content | |
| Manual |
|
| Cables included | HDMI |
| AC adapter included |
|
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 50 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Storage relative humidity (H-H) | 0 - 80% |
| Logistics data | |
| Master (outer) case net weight | 14.1 kg |
| Master (outer) case width | 315 mm |
| Master (outer) case length | 490 mm |
| Master (outer) case height | 338 mm |
| Master (outer) case gross weight | 17.3 kg |
| Products per master (outer) case | 20 pc(s) |
| SKU | 234871 |
| MPN | VS184A-AT-U |
| Brand | ATEN |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Warranty Period | 2 Years Warranty |
| Warranty Contact | https://www.aten.com/ |
