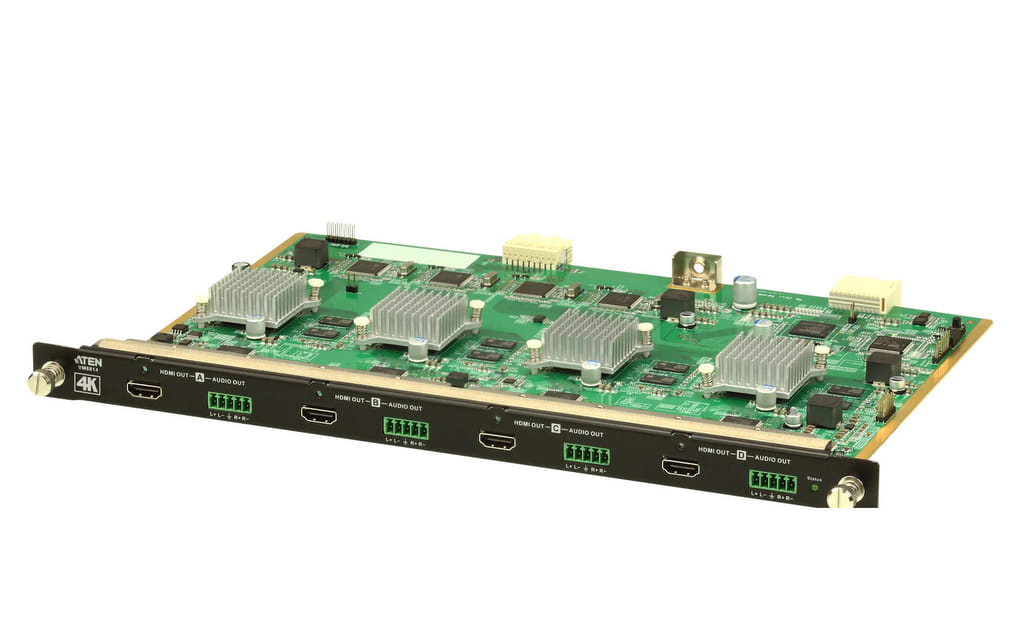

ATEN 4-Port 4K HDMI Output Board With Scaler, HDMI, Metal, Green, Grey, 15 m, 3840 x 2160, 4096 x 2160, 480p, 720p, 1080i, 1080p
The VM8814 is a 4K HDMI output board that works with an ATEN Modular Matrix Switch to offer an easy way to route 4 HDMI sources to 4 displays. In addition to the HDMI interface that carries digital A/V signals, the VM8814 is equipped with 4 stereo audio output ports that allow HDMI audio extraction.
Considering the need for fast video switching and resolution adaptation in video wall applications, the VM8814 supports Seamless Switch and EDID Expert that make real-time video switching possible, and contains a built-in 4K scaler that handles different video resolutions. The ATEN VM input/output boards support hot-swappable installation that gives system integrators great flexibility and efficiency for maintenance. The ATEN VM input/output boards along with ATEN Modular Matrix Switches offer ideal solutions that perfectly meet your demands for video-critical applications.
Considering the need for fast video switching and resolution adaptation in video wall applications, the VM8814 supports Seamless Switch and EDID Expert that make real-time video switching possible, and contains a built-in 4K scaler that handles different video resolutions. The ATEN VM input/output boards support hot-swappable installation that gives system integrators great flexibility and efficiency for maintenance. The ATEN VM input/output boards along with ATEN Modular Matrix Switches offer ideal solutions that perfectly meet your demands for video-critical applications.
| Ports & interfaces | |
| Video port type The type of socket in the device for connecting a video e.g. SCART. | HDMI |
| Number of HDMI outputs Port (socket) for HDMI output. | 4 |
| Features | |
| Material The material from which a thing is or can be made e.g. wood, plastic. | Metal |
| Product colour The colour e.g. red, blue, green, black, white. | Green, Grey |
| HDCP High-bandwidth Digital Content Protection (HDCP) is a form of digital copy protection to prevent copying of digital audio and video content as it travels across connections. |
 |
| Maximum operating distance The maximum distance from which you can operate the device. | 15 m |
| Supported graphics resolutions The graphic resolutions that can be displayed by the device. The graphic resolution describes the width and height dimensions of a display, such as a computer monitor, measured in pixels. | 3840 x 2160, 4096 x 2160 |
| Supported video modes The video modes that can be displayed by the device. | 480p, 720p, 1080i, 1080p |
| Bandwidth Bandwidth is the difference between the upper and lower frequencies in a continuous set of frequencies. It is typically measured in Hertz (Hz). A key characteristic of bandwidth is that any band of a given width can carry the same amount of information, regardless of where that band is located in the frequency spectrum. For example, a 3 kHz band can carry a telephone conversation whether that band is at baseband (as in a POTS telephone line) or modulated to some higher frequency. | 340 MHz |
| LED indicators |
|
| Maximum resolution The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. | 4096 x 2160 pixels |
| Built-in speaker(s) The device contains speaker(s) to produce sound. |
 |
| 3D The device can be used with 3D technology. |
|
| HD type Type of supported High Definition (e.g. Full HD, 4K Ultra HD). | 4K Ultra HD |
| Output impedance | 100 Ω |
| Heat dissipation The heat generated by the power supply. | 94 BTU/h |
| HDCP version | 2.2 |
| Power | |
| Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. | 20 W |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 238 mm |
| Depth The distance from the front to the back of something. | 23.3 mm |
| Height The measurement of the product from head to foot or from base to top. | 352 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 1.02 kg |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Sustainability | |
| Sustainability certificates | RoHS |
| SKU | 700592 |
| MPN | VM8814-AT |
| Brand | ATEN |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 2 Years Warranty |
| Warranty Contact | https://www.aten.com/ |
