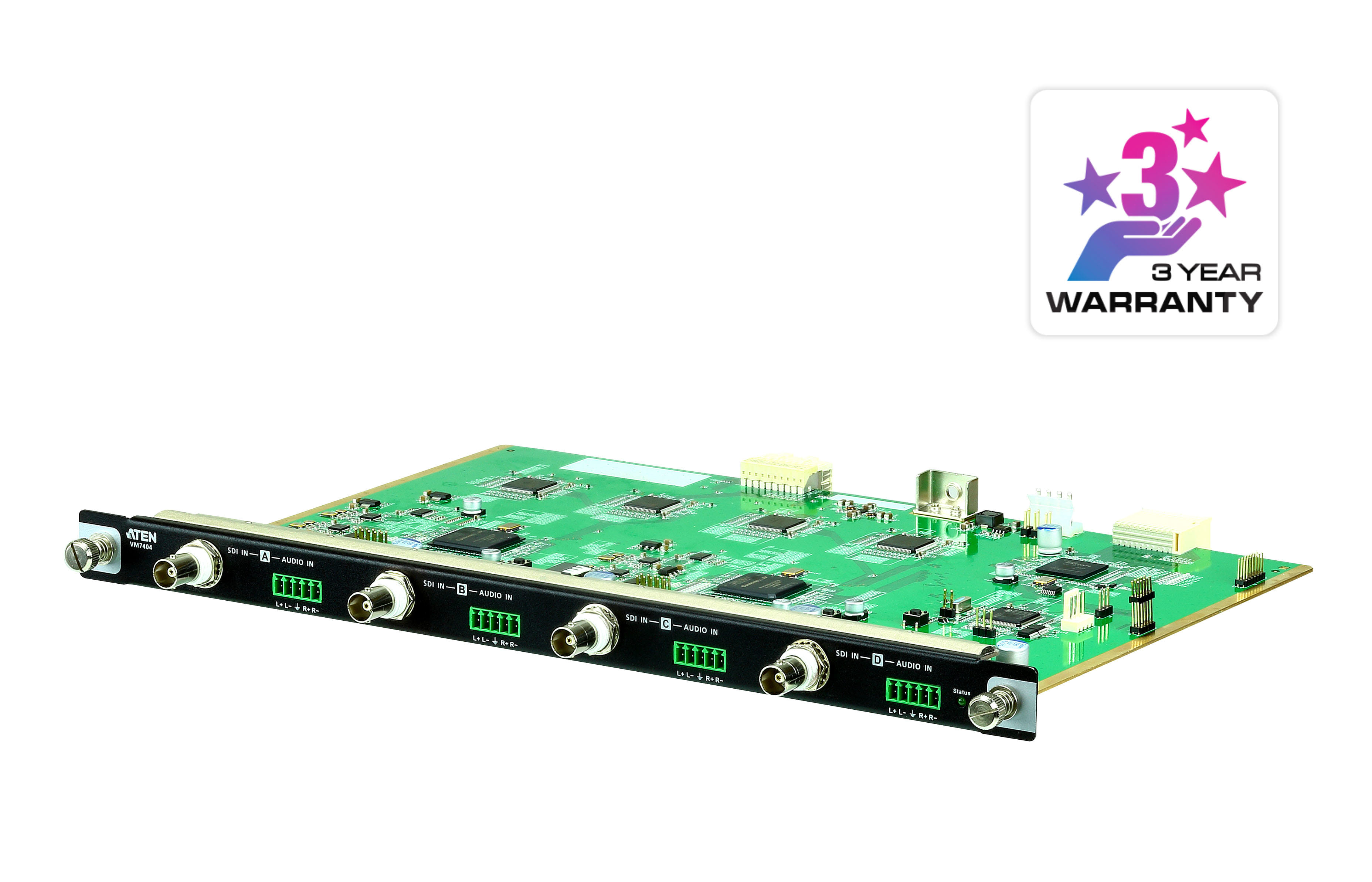

ATEN 4-Port 3G-SDI Input Board for VM1600 / VM3200, Black, Green, Metal, 16 W, 352 mm, 242 mm, 22 mm
The VM7404 4-Port 3G-SDI Input Board offers an easy way to route any 4 SDI video and audio sources to multiple displays when used in combination with an ATEN Modular Matrix Switch. This input board provides the capability to connect to SDI sources, including 3G-SDI, HD-SDI and SD-SDI, and supports high quality video resolutions up to 1080p @ 60 Hz. The VM7404 also supports separate analog stereo audio signals that can be routed independently. Furthermore, the board is based on a hot-swappable design, allowing the ATEN Modular Matrix Switch to remain on while the board is changed. Ideal for surveillance systems and numerous other broadcast-grade A/V applications, the VM7404 allows you to effectively centralize routing for all your 3G / HD / SD-SDI devices.
1x VM7404 4-Port 3G-SDI Input Board
4x Terminal Block Connectors
1x User Instructions
1x VM7404 4-Port 3G-SDI Input Board
4x Terminal Block Connectors
1x User Instructions
| Design | |
| Product colour The colour e.g. red, blue, green, black, white. | Black, Green |
| Material The material from which a thing is or can be made e.g. wood, plastic. | Metal |
| Ports & interfaces | |
| BNC ports quantity | 4 |
| Power | |
| Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. | 16 W |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 352 mm |
| Depth The distance from the front to the back of something. | 242 mm |
| Height The measurement of the product from head to foot or from base to top. | 22 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 600 g |
| Packaging data | |
| Package width The distance from one side of the packaging to the other. | 285 mm |
| Package depth The distance from the front to the back of the packaging. | 426 mm |
| Package height The distance from the top to the bottom of the packaging. | 57 mm |
| Package weight Weight of the packaged product. | 960 g |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 60 °C |
| Logistics data | |
| Products per master (outer) case | 2 pc(s) |
| Master (outer) case gross weight | 2.4 kg |
| Master (outer) case length | 440 mm |
| Master (outer) case width | 300 mm |
| Master (outer) case height | 138 mm |
| Master (outer) case net weight | 1.2 kg |
| SKU | 700556 |
| MPN | VM7404-AT |
| Brand | ATEN |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 2 Years Warranty |
| Warranty Contact | https://www.aten.com/ |
