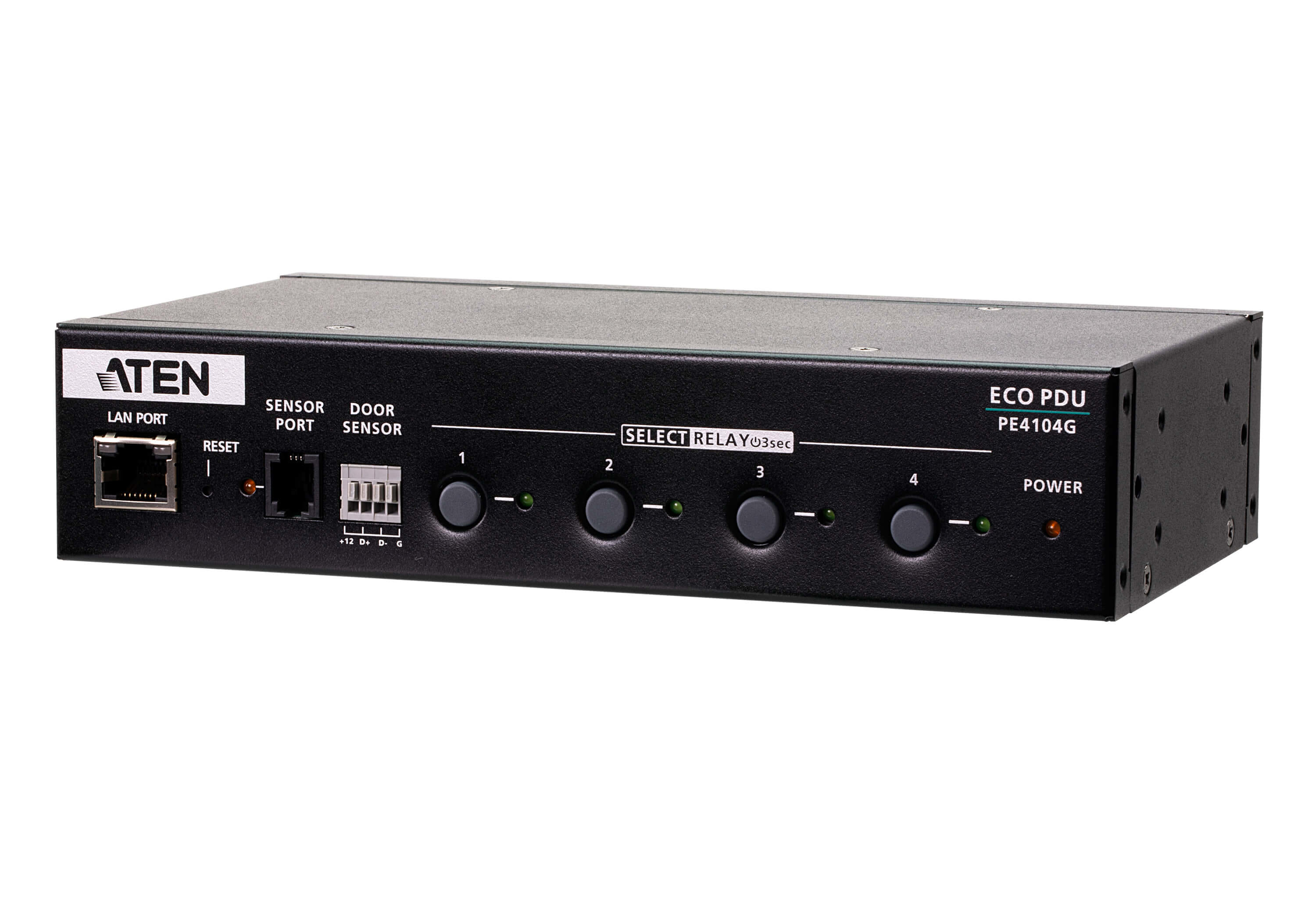

ATEN 4-Outlet IP Control Box, Basic, 1U, Black, 4 AC outlet(s), C13 coupler, IEC 320
Engineered to be an intelligent power distribution solution, the PE4104G IP Control Box ships with 4 power outlets in an IEC socket configuration. It provides secure, centralized, intelligent, and remote power management of data center IT equipment to minimize the operating cost.
1x IP Control Box
1x KC06-0012-B07G Standard Rack Mount Kit
1x LINP-10F3-2B0G Power Cord
4x 0X02-0040-002G Footpads
1x User Instructions
1x IP Control Box
1x KC06-0012-B07G Standard Rack Mount Kit
1x LINP-10F3-2B0G Power Cord
4x 0X02-0040-002G Footpads
1x User Instructions
| Design | |
| PDU types A power distribution unit (PDU) is a device fitted with multiple outputs designed to distribute electric power, especially to racks of computers and networking equipment located within the data center. PDUs vary from simple and inexpensive rack-mounted "power strips" to larger floor-mounted PDUs with multiple functions including power filtering to improve power quality, intelligent load balancing, and remote monitoring and control by LAN or SNMP. | Basic |
| Rack capacity The spase that device fill in rack. | 1U |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Ports & interfaces | |
| AC outlets quantity The number of sockets in the device where AC electrical power can be connected. | 4 AC outlet(s) |
| Power plug A power plug is a 2 or 3 pinned device that is placed into an electrical socket in order to make an electrical connection. | IEC 320 |
| AC outlet types The type of outlet for AC electricity. | C13 coupler |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 1 |
| Features | |
| Reset button |
 |
| LED indicators |
|
| Cable length How long the cable is. | 3 m |
| Certification | CE-EMC CE-LVD |
| Power | |
| Nominal input voltage The voltage which the manufacturer recommends that the device needs to operate normally. | 100-240 V |
| Maximum current The greatest possible amount of current, which is a quantity representing the rate of flow of electric charge. | 10 A |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 200 mm |
| Depth The distance from the front to the back of something. | 115 mm |
| Height The measurement of the product from head to foot or from base to top. | 44 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 1.29 kg |
| Packaging data | |
| Package weight Weight of the packaged product. | 1.49 kg |
| Package width The distance from one side of the packaging to the other. | 100 mm |
| Package depth The distance from the front to the back of the packaging. | 283 mm |
| Package height The distance from the top to the bottom of the packaging. | 173 mm |
| Packaging content | |
| Cables included | AC |
| Manual |
|
| Rack mount kit |
|
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 50 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Technical details | |
| Sustainability certificates | CE |
| Logistics data | |
| Master (outer) case net weight | 6.45 kg |
| Master (outer) case width | 29.2 cm |
| Master (outer) case length | 51.7 cm |
| Master (outer) case height | 19.4 cm |
| Master (outer) case gross weight | 8.04 kg |
| Products per master (outer) case | 5 pc(s) |
| SKU | 541199 |
| MPN | PE4104G-AT-G |
| Brand | ATEN |
| Product Condition | Brand New/Unused |
| PSU Form Factor | N/A |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 2 Years Warranty |
| Warranty Contact | https://www.aten.com/ |
