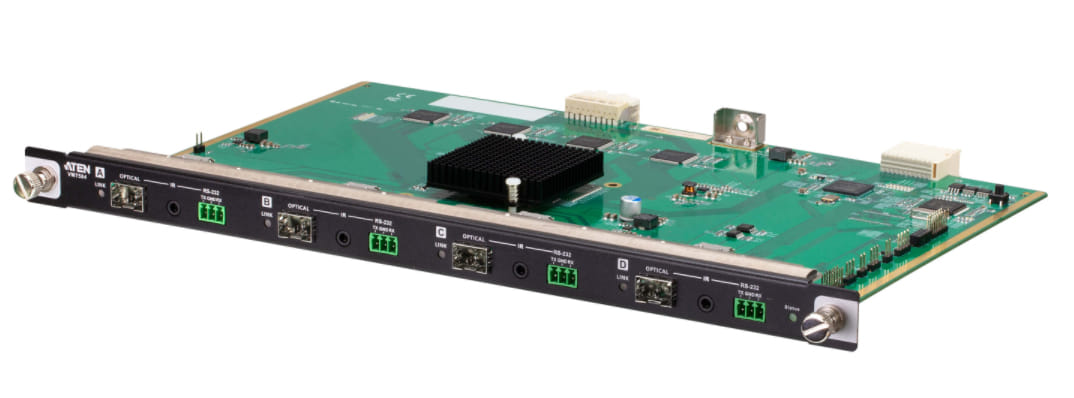

Aten 4-Port 10G Optical Input Board (With 10Km)
Item No:
700565
MPN:
VM7584K2-AT
$5,959.00
Payment options
Shipping Information
- Unavailable for shipping
- This product is not currently available for purchase
Store Availability
- Unavailable at Bankstown Store
- Unavailable at Castle Hill Store
- Unavailable at Northmead Store
ATEN 4-Port 10G Optical Input Board (4K@300m (K1, MM) / 10km (K2, SM)), Black, Metal, Link, Status, Aten VM3250 / VM3200 / VM1600A, 10.54 W, 352 mm
The VM7584 4-Port 10G Optical Input Board offers an easy way to route 4 HDMI sources to HDMI displays through optical extenders, and up to 16/32 input and 16/32 output connections on an ATEN Modular Matrix Switch through various AV interfaces. Designed with fiber optics technology for long-distance transmission, the VM7584 along with its SFP+ modules extends uncompressed 4K signal up to 300 m (using VM7584K1) or 10 km (using VM7584K2) over duplex fiber optic cables. The optical fiber simplifies cabling by guaranteeing an interference-free long-haul transmission of audio, video, IR, and RS-232 control signals over one single set of duplex cables that easily connects to the SFP+ slot. Moreover, the VM7584 supports a high data rate of 10.2 Gbps and meets HDMI Specifications that include 3D, Deep Color, and 4K to ensure superior video quality.
1x VM7584 4-Port 10G Optical Input Board
4x SFP+ Modules
4x 3-Pole Terminal Blocks
1x IR Receiver
1x IR Emitter
1x User Instructions
1x VM7584 4-Port 10G Optical Input Board
4x SFP+ Modules
4x 3-Pole Terminal Blocks
1x IR Receiver
1x IR Emitter
1x User Instructions
| Design | |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Material The material from which a thing is or can be made e.g. wood, plastic. | Metal |
| LED indicators | Link, Status |
| Compatibility The other products, software and hardware this product can be used with. | Aten VM3250 / VM3200 / VM1600A |
| Power | |
| Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. | 10.54 W |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 352 mm |
| Depth The distance from the front to the back of something. | 238 mm |
| Height The measurement of the product from head to foot or from base to top. | 23.3 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 720 g |
| Packaging data | |
| Package width The distance from one side of the packaging to the other. | 285 mm |
| Package depth The distance from the front to the back of the packaging. | 426 mm |
| Package height The distance from the top to the bottom of the packaging. | 57 mm |
| Package weight Weight of the packaged product. | 1.07 kg |
| Packaging content | |
| Quick start guide Instructions, either online, as a computer program or in paper form, to allow you to set up and start using the product quickly. |
 |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 60 °C |
| Storage relative humidity (H-H) | 0 - 80% |
| Logistics data | |
| Products per master (outer) case | 2 pc(s) |
| Master (outer) case gross weight | 2.59 kg |
| Master (outer) case length | 440 mm |
| Master (outer) case width | 300 mm |
| Master (outer) case height | 138 mm |
| Master (outer) case net weight | 1.44 kg |
| SKU | 700565 |
| MPN | VM7584K2-AT |
| Brand | ATEN |
| Product Condition | Brand New/Unused |
| Product Use | General |
| Warranty Period | 2 Years Warranty |
| Warranty Contact | https://www.aten.com/ |
