ATEN VE44PB-AT-U, Network transmitter & receiver, 10.2 Mbit/s, Cat5e, Cat6, Cat6a, 10/100Base-T(X), IEEE 802.3af, Black

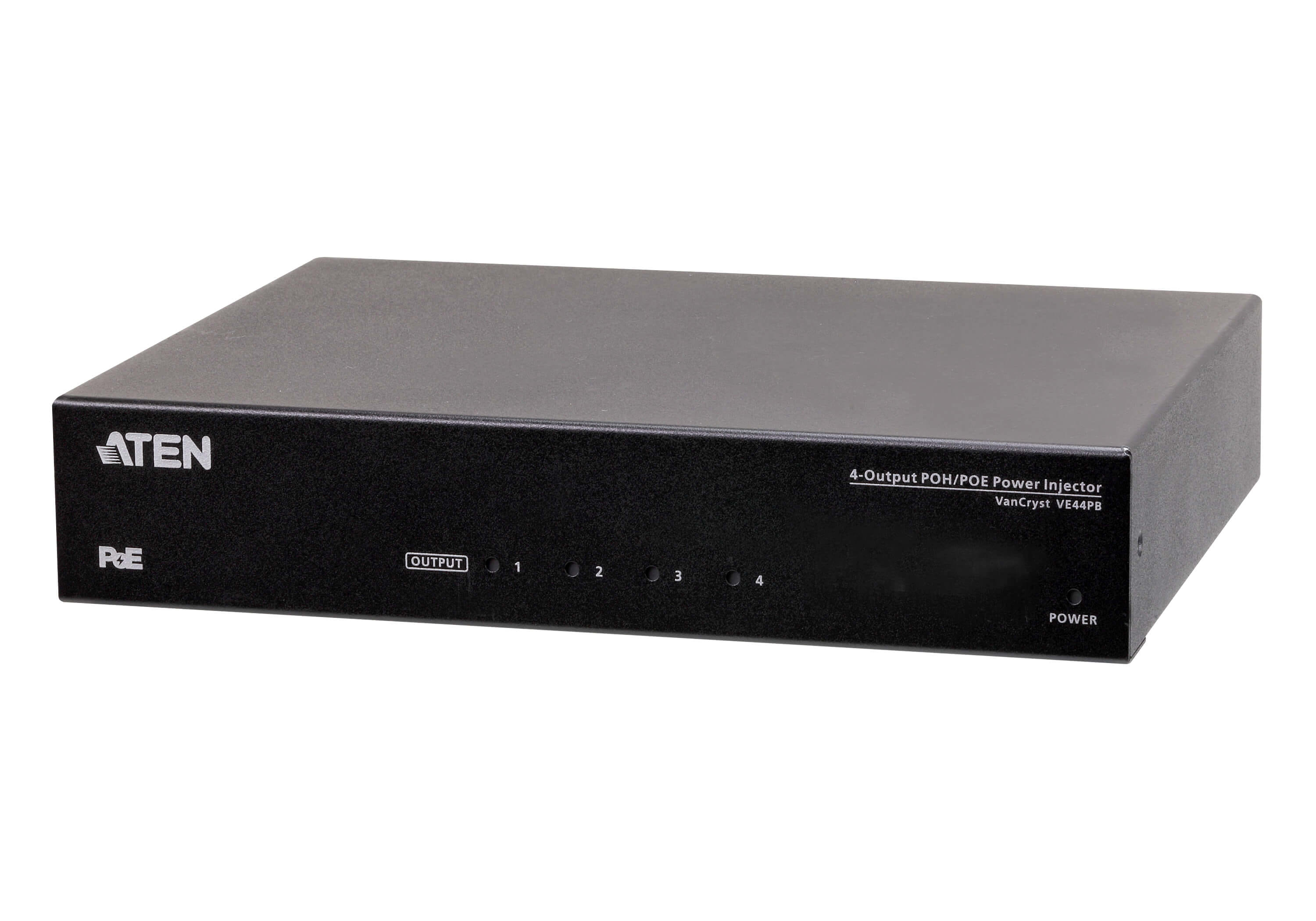

The ATEN VE44PB is a 4-port power injector for remote power supply for up to four compatible ATEN PoH-powered or PoE-powered devices via Cat 5e/6/6a cables. Deploying the VE44PB in your Pro AV facilities eliminates the need for local power supplies of the connected devices. It supplies up to 15.4W of power per PSE port. Featuring HDBaseT connectivity, the VE44PB can extend HDMI connection over a long distance via Cat 6/6a cables; meanwhile, still ensures unaffected video and image quality. Besides, the status LEDs on its front panel indicates an at-a-glance overview of the connected devices, allowing you to perform real-time monitoring and trouble shooting in the case of emergency. With its compact and rack mountable design, the VE44PB can be flexibly installed anywhere between the transmitter and receiver that require remote PoH / PoE powering.
1x 4-Output POH/POE Power Injector
1x KC06-0040-200G Mounting Kit
1x LIN2-418K-E12G Power Cord Cable
1x User Instructions
1x 4-Output POH/POE Power Injector
1x KC06-0040-200G Mounting Kit
1x LIN2-418K-E12G Power Cord Cable
1x User Instructions
| Performance | |
| Type Characteristics of the device. | Network transmitter & receiver |
| Data transfer rate Rate at which data can be transferred, usually measured in units per second. May vary with network configurations. | 10.2 Mbit/s |
| Cable types supported | Cat5e, Cat6, Cat6a |
| Plug and Play Indicates whether this product supports is "plug and play". Plug and play is hardware or software that, after being installed ("plugged in"), can immediately be used ("played with"), as opposed to hardware or software which requires configuration. |
 |
| Network | |
| Cabling technology Type of cable technology performance. | 10/100Base-T(X) |
| Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. | IEEE 802.3af |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 8 |
| RJ-45 ports quantity (transmitter) | 4 |
| Power over Ethernet (PoE) ports quantity | 4 |
| DC-in jack The socket/plug where the DC electricity supply connects to the device. |
|
| Design | |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Housing material What the casing of the product is made of. | Metal |
| Rack mounting The type of mounting that can position devices in a shelving system (rack). |
|
| LED indicators |
|
| On/off switch The button which is pressed to switch the device on or off. |
|
| Power | |
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. | 1.1 W |
| Power consumption (max) The maximum amount of power used by the device. | 1.2 W |
| Power over Ethernet (PoE) The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras. |
|
| Total Power over Ethernet (PoE) budget | 15.4 W |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 60 °C |
| Operating temperature (transmitter) | 0 - 80 °C |
| Storage temperature (transmitter) | 0 - 80 °C |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 161 mm |
| Depth The distance from the front to the back of something. | 215 mm |
| Height The measurement of the product from head to foot or from base to top. | 41 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 1.56 kg |
| Packaging data | |
| Package width The distance from one side of the packaging to the other. | 207 mm |
| Package depth The distance from the front to the back of the packaging. | 414 mm |
| Package height The distance from the top to the bottom of the packaging. | 117 mm |
| Package weight Weight of the packaged product. | 1.91 kg |
| SKU | 700376 |
| MPN | VE44PB-AT-U |
| Brand | ATEN |
| Product Condition | Brand New/Unused |
| Product Use | General |
| Warranty Period | 2 Years Warranty |
| Warranty Contact | https://www.aten.com/ |
| Stock Availability | Available for Shipping |
