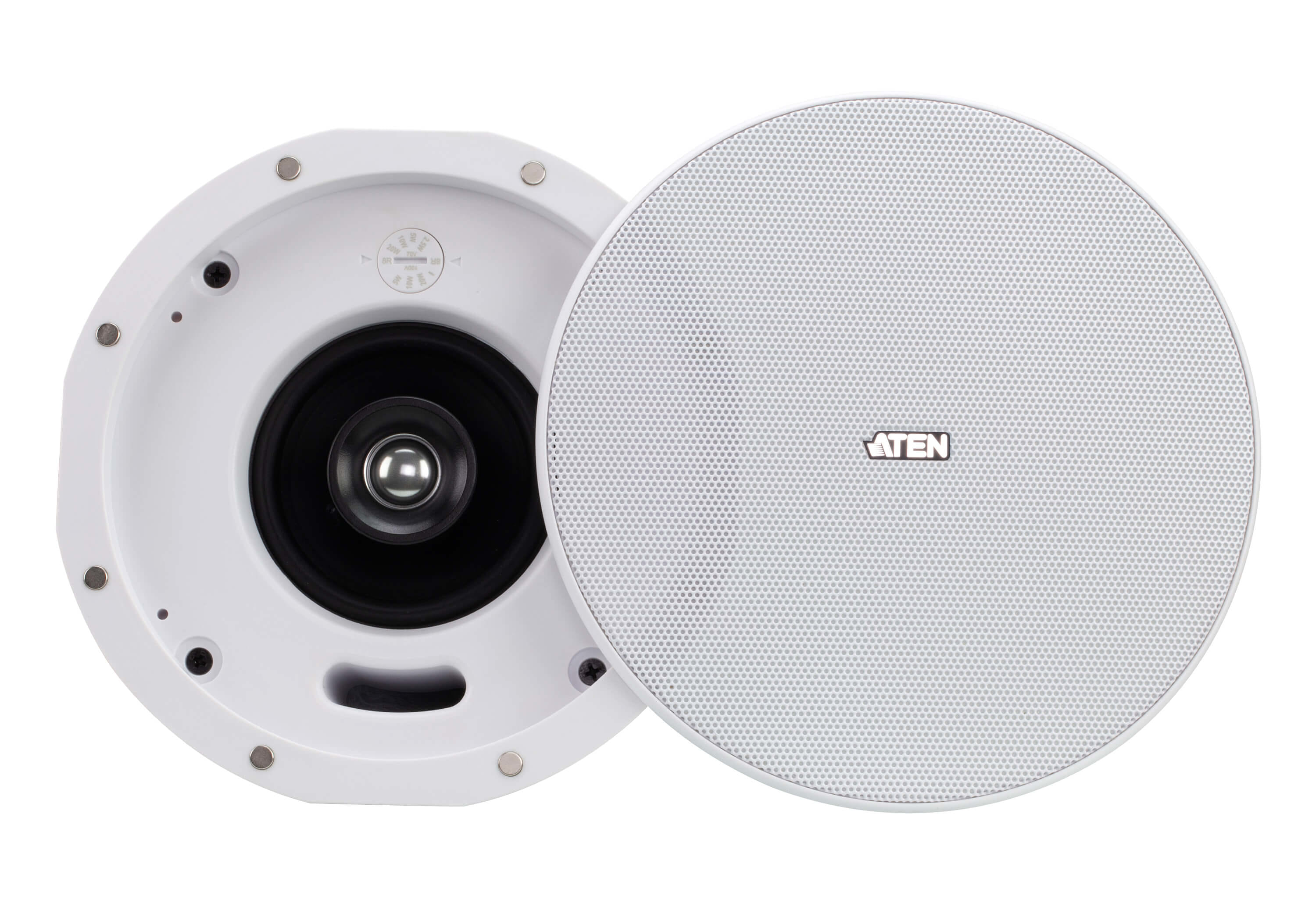

ATEN 4" Coaxial Ceiling Loudspeaker, 2-way, Wired, 30 W, 100 - 20000 Hz, 8 ?, White
The AS104 comes in a pair of 4 coaxial 2-way ceiling loudspeakers that deliver decent sonic performance. Each speaker ships with a 4 woofer, 20 mm dome tweeter, and 30 W RMS, 60 W peak (8?) power handling capability. Excellent and consistent sound quality is ensured by taking advantages of its 100 - 20 kHz bandwidth and wide coverage, allowing less speakers used to cover the listening area to lower the cost of the system installed.
The loudspeaker contains a matching transformer, running comfortably on 70 / 100 V lines or at 8? to suit various application demands. Phase issues are minimized as a result of the adoption of the coaxial neodymium magnetic driver, making sound waves with various frequency bands easier to be added together instead of canceling each other out. Made of UL94-V0-compliant flame retardant materials, the housing, together with the Zinc-coated steel backcan, improve safety for applications where flame and fire protection is of the highest importance. When it comes to installation, each speaker features a cutout template for quick and easy post construction installation and can be secured with its dog-leg mounting system. The paintable magnetic grille assures effortless installation and cleaning while giving unobtrusive appearance in any room design.
AS104 is ideal for residence and enterprise-grade audio applications, such as auditoriums, houses of worship, sports venues, and any small or mid-sized commercial spaces that require a clear and intelligible sound solution without compromise on life safety.
The loudspeaker contains a matching transformer, running comfortably on 70 / 100 V lines or at 8? to suit various application demands. Phase issues are minimized as a result of the adoption of the coaxial neodymium magnetic driver, making sound waves with various frequency bands easier to be added together instead of canceling each other out. Made of UL94-V0-compliant flame retardant materials, the housing, together with the Zinc-coated steel backcan, improve safety for applications where flame and fire protection is of the highest importance. When it comes to installation, each speaker features a cutout template for quick and easy post construction installation and can be secured with its dog-leg mounting system. The paintable magnetic grille assures effortless installation and cleaning while giving unobtrusive appearance in any room design.
AS104 is ideal for residence and enterprise-grade audio applications, such as auditoriums, houses of worship, sports venues, and any small or mid-sized commercial spaces that require a clear and intelligible sound solution without compromise on life safety.
| Loudspeakers | |
| Speaker type Loudspeaker number of ways. | 2-way |
| Speaker placement The position of the speaker. | Ceiling-mountable |
| Number of drivers The quantity of drivers, which are individual transducers that converts electrical energy to sound waves. | 2 |
| Tweeter Loudspeaker designed to reproduce high frequencies. |
 |
| Number of tweeter drivers | 1 |
| Tweeter diameter | 2 cm |
| Woofer Loudspeaker designed to reproduce low frequencies. |
|
| Number of woofer drivers | 1 |
| Woofer diameter | 10.2 cm |
| Audio | |
| RMS rated power RMS (Root mean square) is a measure of the continuous power required by a device, in particular audio amplifiers and loudspeakers. | 30 W |
| Peak Music Power Output (PMPO) | 60 W |
| Frequency range The lowest and the hightest frequencies that can be inputted/produced. | 100 - 20000 Hz |
| Impedance The effective resistance of an electric circuit or component to alternating current, arising from the combined effects of ohmic resistance and reactance. | 8 Ω |
| Sensitivity Responsiveness to audio slight changes. | 86 dB |
| Total Harmonic Distortion (THD) Total harmonic distortion is a measure of non-linear harmonic distortion and is given in %. Non-linear harmonic distortions are signals which were not present in the original before the signal was converted by the headphones. These unwanted signals are caused by the diaphragm, whose movements do not precisely move in time with the electric signals that cause it to move. Unfortunately, this is a feature of all electroacoustic transducers. Although it cannot be completely eliminated, suitable steps can be taken to minimise it. However, the user is not interested in why this distortion takes place but in how great the level of distortion must be for it to become perceptible. According to the findings of several research projects, a total harmonic distortion of 1% in the frequency range of 100 to 2000 Hz is imperceptible. Below 100 Hz, the perceptibility threshold lies at 10%. | 5% |
| Performance | |
| Recommended usage What the product should be used for, and how it should be used (e.g. ambient temperature). | Universal |
| Product colour The colour e.g. red, blue, green, black, white. | White |
| Housing material What the casing of the product is made of. | Plastic, Rubber, Steel |
| Amplifier | |
| Amplifier Electronic device for increasing the amplitude of electrical signals, used chiefly in sound reproduction. |
 |
| Ports & interfaces | |
| Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless. | Wired |
| Bluetooth Bluetooth is a low-power radio technology developed to replace the cables and wires currently used to link or connect electronic devices such as personal computers, printers, and a wide variety of handheld devices including mobile phones. Because it uses radio-wave connectivity, a Bluetooth-enabled device has a constant, established connection to whatever browser it uses. This saves the user the trouble of logging on to check for emails or news updates, for example. |
|
| Power | |
| Power source type What the power source is. | DC |
| Transformer taps | 2.5,5,10,20 W |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 218 mm |
| Depth The distance from the front to the back of something. | 218 mm |
| Height The measurement of the product from head to foot or from base to top. | 130 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 2.2 kg |
| Packaging data | |
| Package weight Weight of the packaged product. | 9.46 kg |
| Packaging content | |
| Manual |
|
| Mounting brackets included |
|
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Sustainability | |
| Sustainability compliance |
|
| Sustainability certificates | CE, RoHS, WEEE |
| Logistics data | |
| Master (outer) case width | 350 mm |
| Master (outer) case length | 725 mm |
| Master (outer) case height | 200 mm |
| Master (outer) case gross weight | 9.46 kg |
| Master (outer) case net weight | 6.6 kg |
| Products per master (outer) case | 2 pc(s) |
| Master (outer) case volume | 50687.16 cm³ |
| Other features | |
| Country of origin Country where the device is made. Aka Country of manufacture (COM). | China |
| Package volume | 50687.16 cm³ |
| SKU | 767054 |
| MPN | AS104-AT |
| Brand | ATEN |
| Product Condition | Brand New/Unused |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.aten.com/ |
