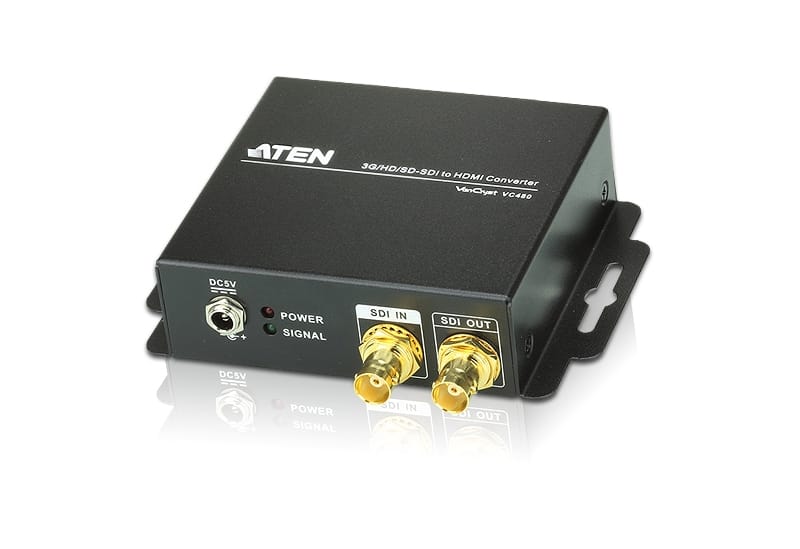

The VC480 3G/HD/SD SDI to HDMI Converter provides a professional way to exchange high definition signals in real time. The SDI and HDMI signal conversion is 100% digital and guarantees no loss of quality for both the audio and video transmission. The VC480 is the most dependable way to convert signals with confidence when monitoring in any post or broadcast application.
- Converts an 3G/HD/SD-SDI input signal to HDMI formats in real time while avoiding transformation loss for both audio and video signals
- Supports additional analog stereo audio and coaxial digital audio
- HDMI (Deep Color)
- LED indication of power and signal status
- Supports an SDI distance of up to 90M (3G-SDI), 150M (HDSDI) or 300M (SD-SDI) of RG6
- Supported SDI formats:
• SD-SDI (SMPTE 259M, up to 270Mbps)
• HD-SDI (SMPTE 292M, 296M, up to 1.485Gbps)
• 3G-SDI (SMPTE 424M, 425M level A,B, up to 2.97Gbps) - Video Support:
[email protected], 625i@50
[email protected]/24/25/29.94/30/50/59.94/60
1080i@50/59.94/60
[email protected]/24/25/29.97/30/50/59.94/60
2048 x 1080 - Buffered loop-through output provides extended monitoring
- Supports 8 audio channels @48kHz rate
- Features automatic detection of 3G/HD/SD-SDI signals
- Reclocking SDI signals for cascading and thus longer transmission
- Locking power connector for secure communications

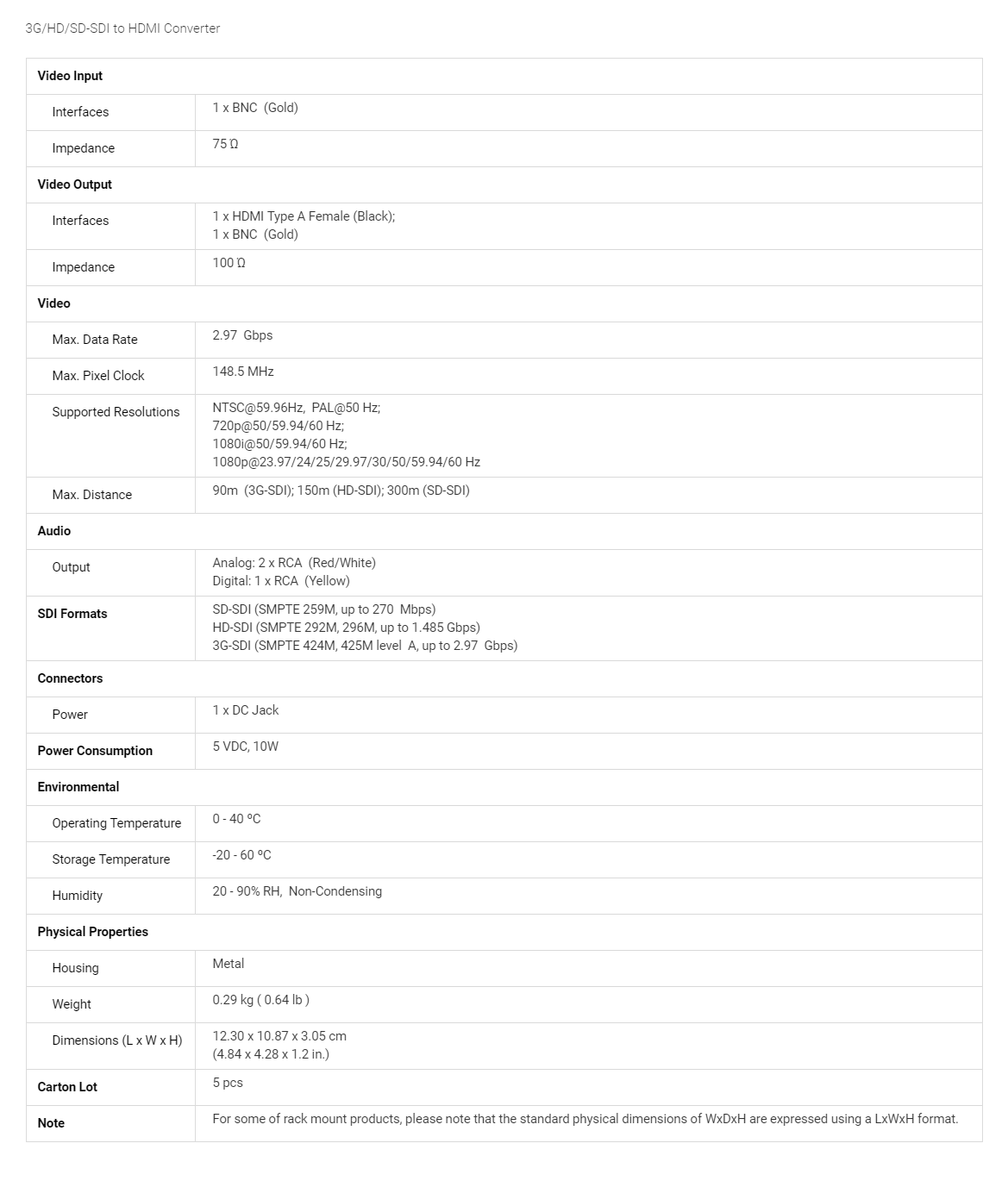

| Features | |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Ports & interfaces | |
| Host interface Interface that enables a host controller to communicate with a driver. | BNC |
| Output interface The ports (sockets) where the device is connected via connectors and cables to external devices. | HDMI, BNC |
| Power | |
| Input voltage The voltage (V) which is required to power the product. | 5 V |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 60 °C |
| Operating relative humidity (H-H) | 20 - 90% |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 108.7 mm |
| Depth The distance from the front to the back of something. | 123 mm |
| Height The measurement of the product from head to foot or from base to top. | 30.5 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 290 g |
| SKU | 262654 |
| MPN | VC480-AT-U |
| Brand | ATEN |
| Product Condition | Brand New/Unused |
| Adapter Type | HDMI Adapter |
| Warranty Period | 2 Years Warranty |
| Warranty Contact | https://www.aten.com/ |
