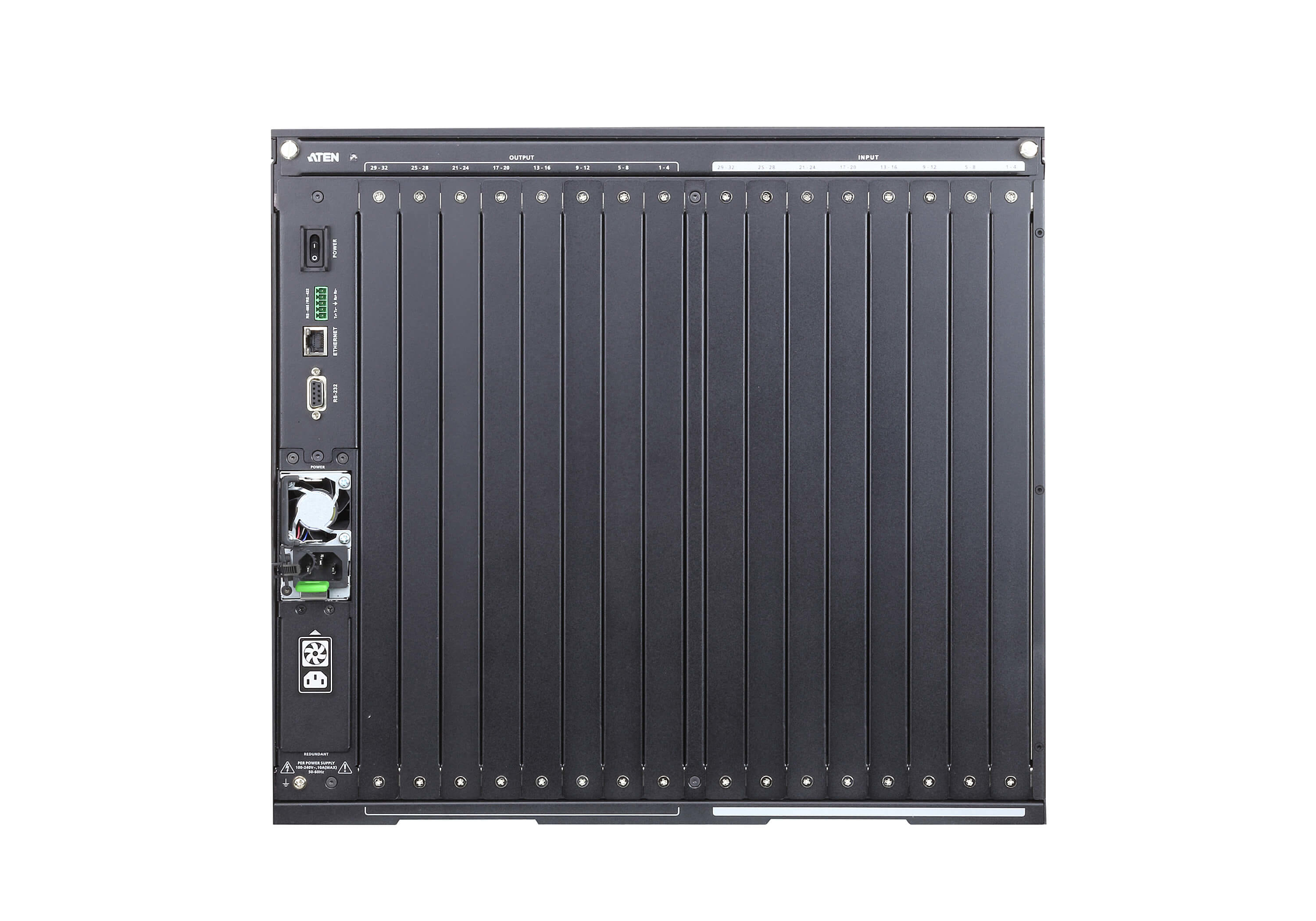

Aten 32x32 Modular Matrix Gen.2
Item No:
700529
MPN:
VM3250-AT-U
$21,752.82
Payment options
Shipping Information
- Unavailable for shipping
- This product is not currently available for purchase
Store Availability
- Unavailable at Bankstown Store
- Unavailable at Castle Hill Store
- Unavailable at Northmead Store
ATEN VM3250-AT-U, Modular AV matrix switchers, 22.5 Gbit/s, 4096 x 2160 pixels, 15.2 Gbit/s, Black, Metal
The VM3250 Modular Matrix Switch Gen. 2 offers advanced access and real-time control of multiple local and remote A/V input devices and displays from a single chassis. The VM3250 allows users to independently switch and route video and/or audio content directly to various monitors, displays, projectors, and/or speakers from the front panel pushbuttons. A built-in Scaler encodes the video format in order to provide seamless, real-time switching. The front panel LCD shows a quick view of active port connections. The switch also includes an option to select an EDID Mode that yields the best resolution across different monitors.
1x VM3250 32 x 32 Modular Matrix Switch
1x Power Module
1x Terminal Block Connector
1x Power Cord
1x User Instructions
1x VM3250 32 x 32 Modular Matrix Switch
1x Power Module
1x Terminal Block Connector
1x Power Cord
1x User Instructions
| Features | |
| Product type The sub-category of the product. | Modular AV matrix switchers |
| Data transfer rate Rate at which data can be transferred. Usually expressed in units per second. May vary with network configurations. | 22.5 Gbit/s |
| Maximum resolution The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. | 4096 x 2160 pixels |
| Bandwidth | 15.2 Gbit/s |
| Extended display identification data (EDID) |
 |
| Design | |
| Housing colour The colour of the housing, which is the rigid casing that encloses and protects a piece of moving or delicate equipment. | Black |
| Housing material What the casing of the product is made of. | Metal |
| Rack mounting The type of mounting that can position devices in a shelving system (rack). |
|
| Rack capacity The spase that device fill in rack. | 9U |
| Display | |
| Built-in display A display which is part of the product, so you do not need to attach another display. |
|
| Ports & interfaces | |
| RJ-45 input ports | 1 |
| RS-232 ports The number of sockets (ports) for RS-232. An RS-232 serial port was once a standard feature of a personal computer, used for connections to modems, printers, mice, data storage, uninterruptible power supplies, and other peripheral devices. Now it has been largely replaced by USB and other ports. | 1 |
| RS-422 ports | 1 |
| Power | |
| Power consumption (max) The maximum amount of power used by the device. | 239 W |
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Input current | 1 A |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 471.9 mm |
| Depth The distance from the front to the back of something. | 482 mm |
| Height The measurement of the product from head to foot or from base to top. | 399 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 19.2 kg |
| Package width The distance from one side of the packaging to the other. | 518 mm |
| Package depth The distance from the front to the back of the packaging. | 579 mm |
| Package height The distance from the top to the bottom of the packaging. | 526 mm |
| Package weight Weight of the packaged product. | 22.2 kg |
| Packaging content | |
| Cables included | AC |
| Quick start guide Instructions, either online, as a computer program or in paper form, to allow you to set up and start using the product quickly. |
|
| SKU | 700529 |
| MPN | VM3250-AT-U |
| Brand | ATEN |
| Product Condition | Brand New/Unused |
| Product Use | General |
| Warranty Period | 2 Years Warranty |
| Warranty Contact | https://www.aten.com/ |
