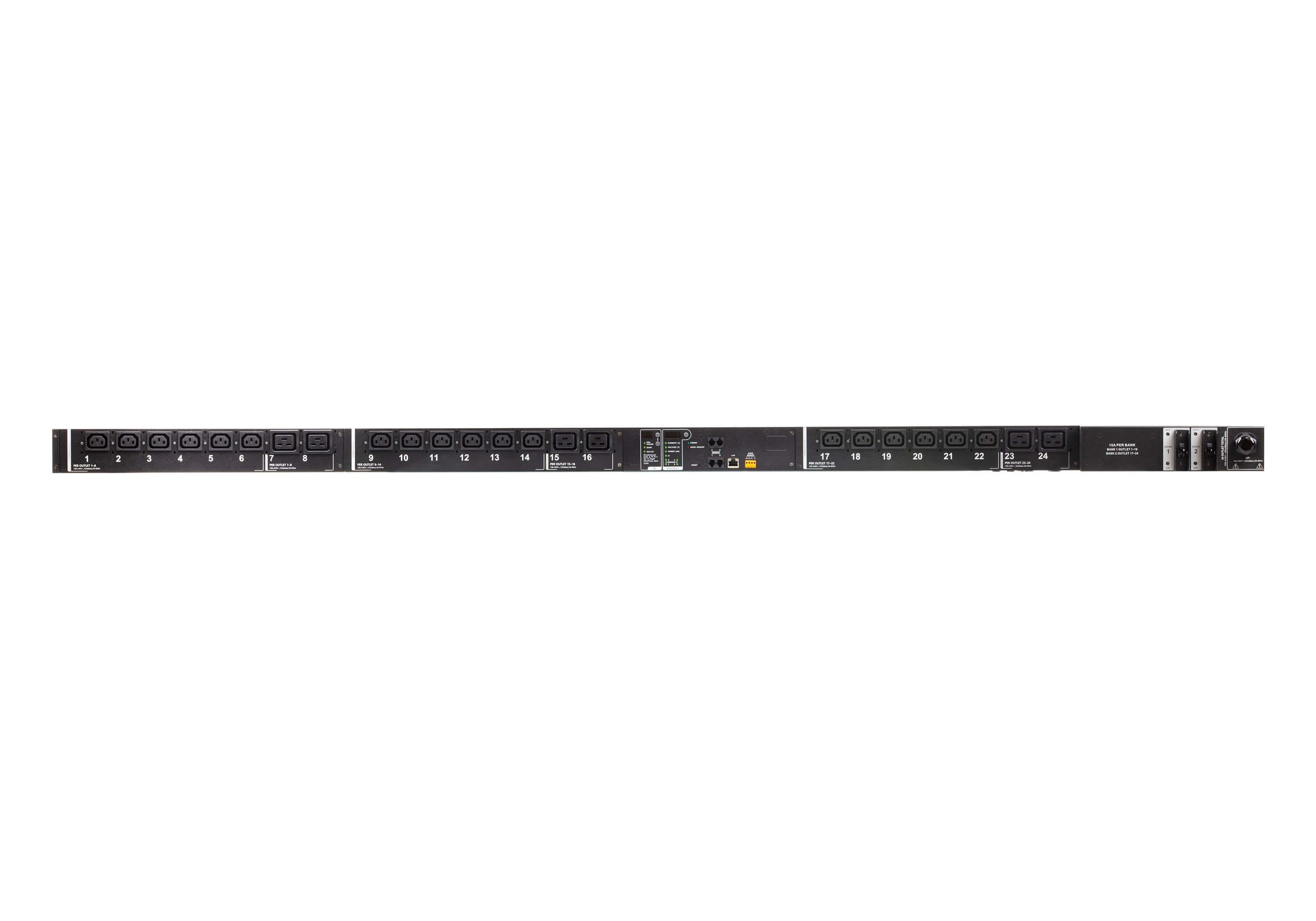

Aten 32A 24-Outlet Outlet-Meter And Switch eco Power Distribution Unit
Item No:
700277
MPN:
PE8324G3-AX
$9,999.00
Payment options
Shipping Information
- Unavailable for shipping
- This product is not currently available for purchase
Store Availability
- Unavailable at Bankstown Store
- Unavailable at Castle Hill Store
- Unavailable at Northmead Store
ATEN 30A/32A 24-Outlet Outlet-Metered & Switched eco PDU, Metered, Switched, Black, 24 AC outlet(s), C13 coupler, C19 coupler, IEC 60309, 1.6 m
ATEN's NRGence line-up is a new generation of green energy power distribution units (eco PDUs) that optimize the efficiency of data center power usage. The PE8324 eco PDUs are intelligent PDUs that contain 24 AC outlets and are available in various IEC / NEMA socket configurations. These models feature proactive overload protection to automatically power off the last outlet that causes the current overload while allowing users to set shutdown priority.
The eco PDUs provide secure, centralized and intelligent power management (power on, off, and cycle) of data center IT equipment (servers, storage systems, KVM switches, network devices, serial data devices, and more), as well as the ability to monitor the center's health environment via sensors.*These PDUs offer remote power control combined with real-time power measurement, allowing users to control and monitor the power status of devices attached to the PDUs, either at the PDU device, bank, or outlet level, depending on the model, from practically any location via a TCP / IP connection.
The power status of each outlet can be set individually, allowing users to switch each device on / off. The eco PDU also offers comprehensive power analysis reports which can separate departments and locations, providing precise measurements of current, voltage, power and watt-hour in a real-time display. Installation and operation are made fast and easy by simply plugging cables into their appropriate ports, and users get to enjoy the intuitive browser-based configuration and management. The eco PDU firmware is upgradeable over the Net, meaning users can download updates from ATEN's website to ensure that their eco PDU is equipped with the latest functionalities and improvements.
The series also supports the 3rd party V3 SNMP manager software and NRGence eco DC (Energy & DCIM Management Web GUI). The eco DC makes it easy when it comes to the management for multiple devices by allowing users to configure eco PDU setting and monitor the power status of the equipment connected to the PDU through a user friendly interface. Along with its set of features, the PE8324 series has become a convenient, reliable and cost-effective solution to help remotely manage power access for multiple computer installations and allocate power resources with efficiency.
The eco PDUs provide secure, centralized and intelligent power management (power on, off, and cycle) of data center IT equipment (servers, storage systems, KVM switches, network devices, serial data devices, and more), as well as the ability to monitor the center's health environment via sensors.*These PDUs offer remote power control combined with real-time power measurement, allowing users to control and monitor the power status of devices attached to the PDUs, either at the PDU device, bank, or outlet level, depending on the model, from practically any location via a TCP / IP connection.
The power status of each outlet can be set individually, allowing users to switch each device on / off. The eco PDU also offers comprehensive power analysis reports which can separate departments and locations, providing precise measurements of current, voltage, power and watt-hour in a real-time display. Installation and operation are made fast and easy by simply plugging cables into their appropriate ports, and users get to enjoy the intuitive browser-based configuration and management. The eco PDU firmware is upgradeable over the Net, meaning users can download updates from ATEN's website to ensure that their eco PDU is equipped with the latest functionalities and improvements.
The series also supports the 3rd party V3 SNMP manager software and NRGence eco DC (Energy & DCIM Management Web GUI). The eco DC makes it easy when it comes to the management for multiple devices by allowing users to configure eco PDU setting and monitor the power status of the equipment connected to the PDU through a user friendly interface. Along with its set of features, the PE8324 series has become a convenient, reliable and cost-effective solution to help remotely manage power access for multiple computer installations and allocate power resources with efficiency.
| Design | |
| PDU types A power distribution unit (PDU) is a device fitted with multiple outputs designed to distribute electric power, especially to racks of computers and networking equipment located within the data center. PDUs vary from simple and inexpensive rack-mounted "power strips" to larger floor-mounted PDUs with multiple functions including power filtering to improve power quality, intelligent load balancing, and remote monitoring and control by LAN or SNMP. | Metered, Switched |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| On/off switch The button which is pressed to switch the device on or off. |
 |
| Ports & interfaces | |
| AC outlets quantity The number of sockets in the device where AC electrical power can be connected. | 24 AC outlet(s) |
| Power plug A power plug is a 2 or 3 pinned device that is placed into an electrical socket in order to make an electrical connection. | IEC 60309 |
| AC outlet types The type of outlet for AC electricity. | C13 coupler, C19 coupler |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 1 |
| Features | |
| Cable length How long the cable is. | 1.6 m |
| Security algorithms Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product. | 128-bit SSL, 802.1x RADIUS |
| Management features | |
| Monitoring | Current, Humidity, Power, Temperature, Voltage |
| Outlet control | Turn off, Turn on |
| Supported network protocols Network protocols tested as compatible with this product e.g. FTP,HTML, POP. | TCP / IP, UDP, HTTP, HTTPS, SSL, DHCP, ARP, NTP, DNS, Telnet, Auto Sense, Ping, SNMP V1,V2, V3 |
| Power | |
| Nominal input voltage The voltage which the manufacturer recommends that the device needs to operate normally. | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Maximum current The greatest possible amount of current, which is a quantity representing the rate of flow of electric charge. | 32 A |
| Block 1 output current | 15 A |
| Block 2 output current | 15 A |
| Output voltage | 100 - 240 V |
| Load capacity | 7360 VA |
| Maximum total current draw per phase | 32 A |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 66 mm |
| Depth The distance from the front to the back of something. | 177.5 mm |
| Height The measurement of the product from head to foot or from base to top. | 44 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 6.33 kg |
| Packaging data | |
| Package weight Weight of the packaged product. | 9.38 kg |
| Package width The distance from one side of the packaging to the other. | 229 mm |
| Package depth The distance from the front to the back of the packaging. | 1865 mm |
| Package height The distance from the top to the bottom of the packaging. | 179 mm |
| Package volume | 76455.49 cm³ |
| Packaging content | |
| Manual |
|
| Rack mount kit |
|
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Technical details | |
| Sustainability certificates | CE |
| Logistics data | |
| Country of origin Country where the device is made. Aka Country of manufacture (COM). | Taiwan |
| Master (outer) case net weight | 6.72 kg |
| Master (outer) case width | 229 mm |
| Master (outer) case length | 1865 mm |
| Master (outer) case height | 179 mm |
| Master (outer) case gross weight | 9.37 kg |
| Master (outer) case volume | 76455.49 cm³ |
| SKU | 700277 |
| MPN | PE8324G3-AX |
| Brand | ATEN |
| Product Condition | Brand New/Unused |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.aten.com/ |
