Aten 32A 24-Outlet Outlet-Metered And Switched eco PDU
Item No:
767189
MPN:
PE8324G2-AX
$9,999.00
Payment options
Shipping Information
- Unavailable for shipping
- This product is not currently available for purchase
Store Availability
- Unavailable at Bankstown Store
- Unavailable at Castle Hill Store
- Unavailable at Northmead Store

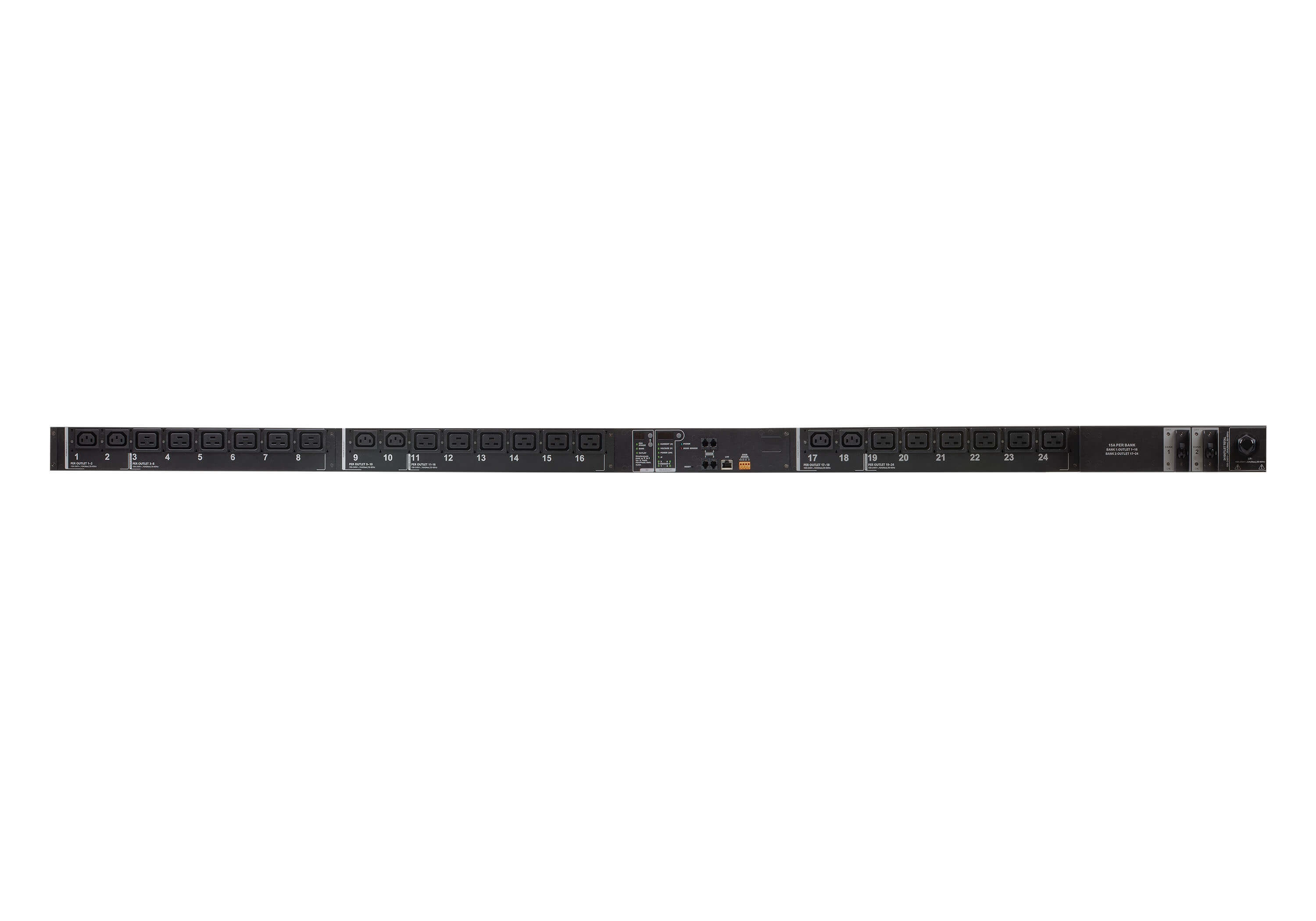

ATEN 30A/32A 24-Outlet Outlet-Metered & Switched eco PDU, Metered, 1U, Rackmount, Horizontal/Vertical, Black, 24 AC outlet(s)
ATEN s NRGence line-up is a new generation of green energy power distribution units (eco PDUs) that optimize the efficiency of data center power usage. The PE8324 eco PDUs are intelligent PDUs that contain 24 AC outlets and are available in various IEC / NEMA socket configurations. These models feature proactive overload protection to automatically power off the last outlet that causes the current overload while allowing users to set shutdown priority.
| Design | |
| PDU types A power distribution unit (PDU) is a device fitted with multiple outputs designed to distribute electric power, especially to racks of computers and networking equipment located within the data center. PDUs vary from simple and inexpensive rack-mounted "power strips" to larger floor-mounted PDUs with multiple functions including power filtering to improve power quality, intelligent load balancing, and remote monitoring and control by LAN or SNMP. | Metered |
| Form factor The shape or design of the product. | Rackmount |
| Rack capacity The spase that device fill in rack. | 1U |
| Mounting What size the mounting head of the product is, to couple it with a camera. | Horizontal/Vertical |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Ports & interfaces | |
| AC outlets quantity The number of sockets in the device where AC electrical power can be connected. | 24 AC outlet(s) |
| Power plug A power plug is a 2 or 3 pinned device that is placed into an electrical socket in order to make an electrical connection. | IEC 60309 |
| AC outlet types The type of outlet for AC electricity. | C13 coupler, C19 coupler |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 1 |
| I/O ports An interface on a device to which you can connect another device. | Sensor Port |
| Features | |
| LED indicators |
 |
| Cable length How long the cable is. | 1.6 m |
| Certification | CE |
| Management features | |
| Monitoring | Current, Humidity, Power, Temperature, Voltage |
| Outlet control | Recycle, Turn off, Turn on |
| Supported network protocols Network protocols tested as compatible with this product e.g. FTP,HTML, POP. | TCP / IP, UDP, HTTP, HTTPS, SSL, DHCP, ARP, NTP, DNS, Telnet, Auto Sense, Ping, SNMP V1,V2 and V3 |
| Power | |
| Nominal input voltage The voltage which the manufacturer recommends that the device needs to operate normally. | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Maximum current The greatest possible amount of current, which is a quantity representing the rate of flow of electric charge. | 32 A |
| Block 1 output current | 16 A |
| Block 2 output current | 16 A |
| Nominal output voltage The voltage which the manufacturer states that the device can produce. | 100 - 240 V |
| Load capacity | 7360 VA |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 66 mm |
| Depth The distance from the front to the back of something. | 1775 mm |
| Height The measurement of the product from head to foot or from base to top. | 44 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 6.33 kg |
| Packaging data | |
| Package weight Weight of the packaged product. | 9.37 kg |
| Package width The distance from one side of the packaging to the other. | 229 mm |
| Package depth The distance from the front to the back of the packaging. | 1865 mm |
| Package height The distance from the top to the bottom of the packaging. | 179 mm |
| Package volume | 76455.49 cm³ |
| Packaging content | |
| Manual |
|
| Resource CD |
|
| Rack mount kit |
|
| Packaging content | 1 x Power Distribution Unit 1 x mounting kit 1 x CD-ROM 1 x user instructions |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Storage relative humidity (H-H) | 0 - 80% |
| Logistics data | |
| Country of origin Country where the device is made. Aka Country of manufacture (COM). | Taiwan |
| Master (outer) case net weight | 6.72 kg |
| Master (outer) case width | 229 mm |
| Master (outer) case length | 1865 mm |
| Master (outer) case height | 179 mm |
| Master (outer) case gross weight | 9.37 kg |
| Master (outer) case volume | 76455.49 cm³ |
| Products per master (outer) case | 1 pc(s) |
| SKU | 767189 |
| MPN | PE8324G2-AX |
| Brand | ATEN |
| Product Condition | Brand New/Unused |
| Product Use | General |
| Warranty Period | 2 Years Warranty |
| Warranty Contact | https://www.aten.com/ |
