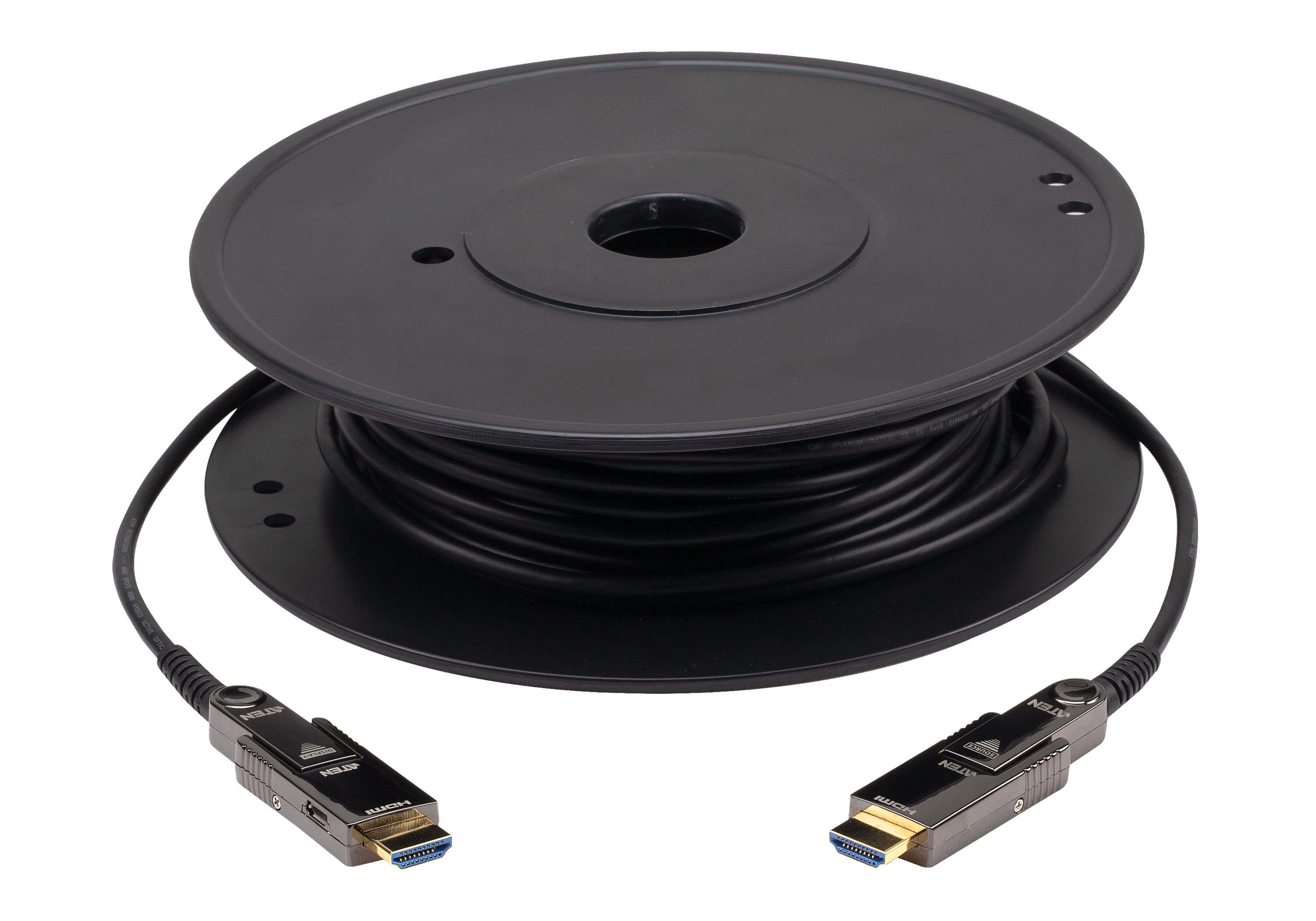

ATEN 30M True 4K HDMI Active Optical Cable
Item No:
835063
MPN:
VE7833A-AT
$9,999.00
Payment options
Shipping Information
- Unavailable for shipping
- This product is not currently available for purchase
Store Availability
- Unavailable at Bankstown Store
- Unavailable at Castle Hill Store
- Unavailable at Northmead Store
ATEN VE7833A, 39 m, HDMI Type-A/HDMI Type-D, HDMI Type-A/HDMI Type-D, 3D, 18 Gbit/s, Black
ATEN VE7833A optical cables utilize AOC technology that enables conversion between input signals and output signals for optimum high bandwidth data transmissions. The EMI-resistant optical cables are available in 30 m with full support of True 4K resolutions. They are fully compliant with HDCP 2.2 standards and meet HDMI specifications including 3D, deep color, and data rates up to 18 Gbps. Supporting Dolby True HD and DTS-HD Master Audio, these optical cables guarantee lossless audio signal transmissions. This cable series comes with an HDMI Ethernet Channel (HEC) to combine audio, video, and data streams into a cable, enabling Internet connection sharing and IP-based applications over HDMI. Plus, it supports Audio Return Channel (ARC), allowing audio signal to travel to and from the TV and audio system, thereby reducing the number of cables between the television and external Home Theatre System or soundbar.
Engineered to meet the latest trend of integrator-friendly design, the VE7833A optical cables feature pluggable gender and gold-plated connectors. Therefore, the cables are ideal solutions for extending the reach of digital signages in a wide range of settings, such as traffic stations, shopping centers, and hospital facilities.
Engineered to meet the latest trend of integrator-friendly design, the VE7833A optical cables feature pluggable gender and gold-plated connectors. Therefore, the cables are ideal solutions for extending the reach of digital signages in a wide range of settings, such as traffic stations, shopping centers, and hospital facilities.
| Features | |
| Cable length How long the cable is. | 39 m |
| Connector 1 This is the first connector in the device. | HDMI Type-A/HDMI Type-D |
| Connector 2 This is the second connector in the device. | HDMI Type-A/HDMI Type-D |
| Connector 1 gender The gender of the first connector of the product. Each half of a pair of mating connectors is assigned the designation male or female, the part bearing one or which fits into another being called male. | Male |
| Connector 2 gender The gender of the second connector of the product. Each half of a pair of mating connectors is assigned the designation male or female, the indented one or the one fitting around the other being called female. | Male |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| 3D The device can be used with 3D technology. |
 |
| Supported graphics resolutions The graphic resolutions that can be displayed by the device. The graphic resolution describes the width and height dimensions of a display, such as a computer monitor, measured in pixels. | 3840 x 2160, 4096 x 2160 |
| Dolby technologies | DTS-HD Master Audio, Dolby TrueHD |
| Audio Return Channel (ARC) |
|
| HDMI Ethernet channel |
|
| HDCP High-bandwidth Digital Content Protection (HDCP) is a form of digital copy protection to prevent copying of digital audio and video content as it travels across connections. |
|
| HDCP version | 2.2 |
| Data transfer rate Rate at which data can be transferred. Usually expressed in units per second. May vary with network configurations. | 18 Gbit/s |
| High Dynamic Range (HDR) supported |
|
| Bandwidth Bandwidth is the difference between the upper and lower frequencies in a continuous set of frequencies. It is typically measured in Hertz (Hz). A key characteristic of bandwidth is that any band of a given width can carry the same amount of information, regardless of where that band is located in the frequency spectrum. For example, a 3 kHz band can carry a telephone conversation whether that band is at baseband (as in a POTS telephone line) or modulated to some higher frequency. | 600 MHz |
| AWG wire size | 30/24 |
| Connector contacts plating What the connector contacts are covered with (layer on top). | Copper |
| Connector material | Gold |
| Cable material The material e.g. copper, steel from which the cable is made. | Fiber optic |
| Cable jacket material | Plenum (OFNP) |
| Bending radius (min) | 2 cm |
| Plug and Play Indicates whether this product supports is "plug and play". Plug and play is hardware or software that, after being installed ("plugged in"), can immediately be used ("played with"), as opposed to hardware or software which requires configuration. |
|
| Colour sampling | 4:4:4, 4:2:0, 4:2:2 |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 50 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 70 °C |
| Operating relative humidity (H-H) | 0 - 85% |
| Certificates | |
| Certification | CE / FCC / RoHS2 / UL CMP-OF |
| Weight & dimensions | |
| Cable diameter The distance from one side of the cable to the other, with a straight line going through the middle of the cable. | 4.5 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 800 g |
| Packaging data | |
| Package width The distance from one side of the packaging to the other. | 225 mm |
| Package depth The distance from the front to the back of the packaging. | 235 mm |
| Package height The distance from the top to the bottom of the packaging. | 74 mm |
| Package weight Weight of the packaged product. | 1.2 kg |
| Quantity per pack | 1 pc(s) |
| Logistics data | |
| Country of origin Country where the device is made. Aka Country of manufacture (COM). | China |
| Master (outer) case net weight | 12 kg |
| Harmonized System (HS) code | 85176200 |
| Master (outer) case width | 385 mm |
| Master (outer) case length | 470 mm |
| Master (outer) case height | 265 mm |
| Master (outer) case gross weight | 13 kg |
| SKU | 835063 |
| MPN | VE7833A-AT |
| Brand | ATEN |
| Product Condition | Brand New/Unused |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.aten.com/ |
