Aten 30A 24 Outlet 1U M.ed&Sw.ed L/P eco Power Distribution Unit
Item No:
700250
MPN:
PE6324LB-AX
$9,999.00
Payment options
Shipping Information
- Unavailable for shipping
- This product is not currently available for purchase
Store Availability
- Unavailable at Bankstown Store
- Unavailable at Castle Hill Store
- Unavailable at Northmead Store

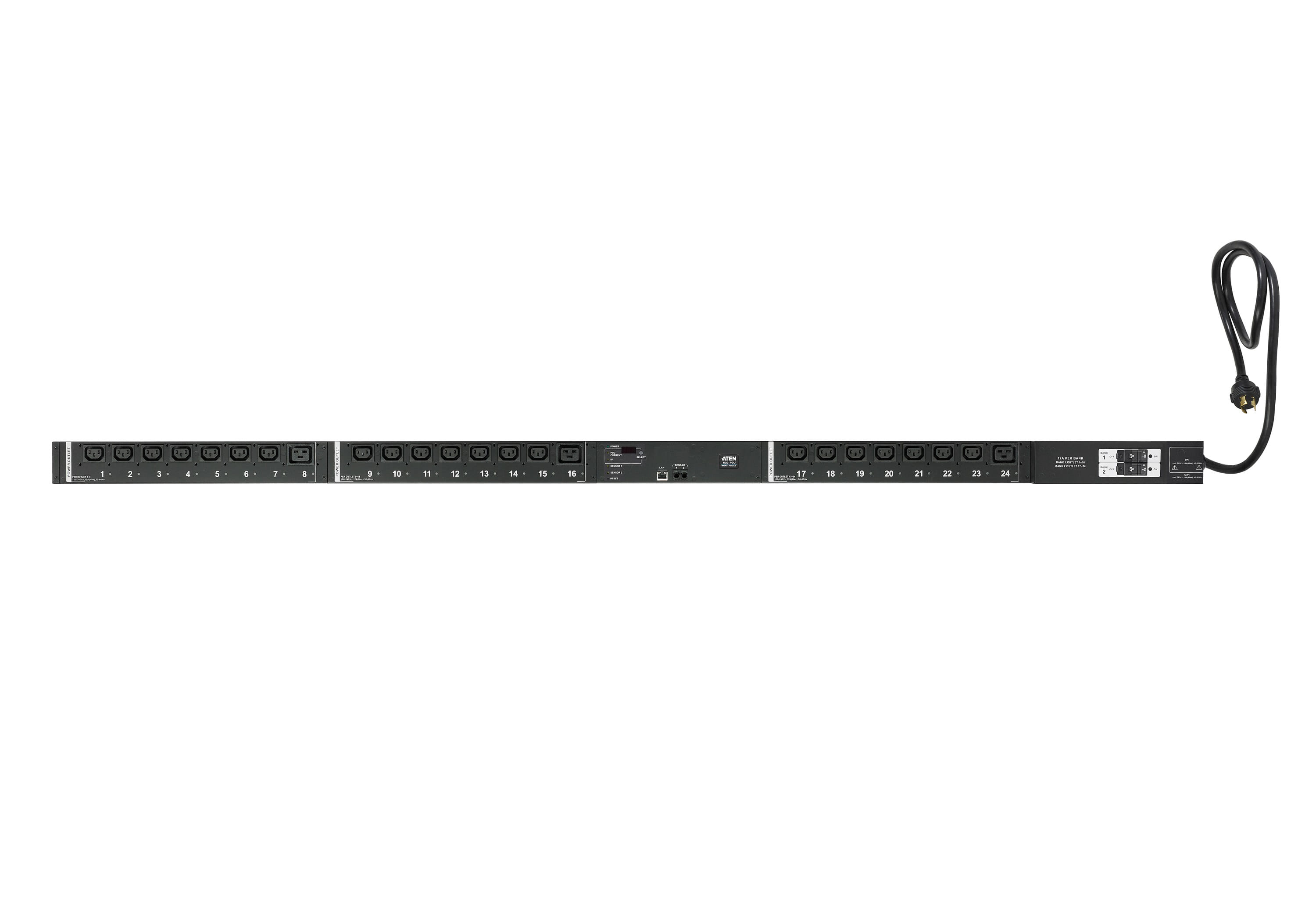

ATEN 30A/32A 24 Outlet Metered & Switched Low Profile eco PDU, Metered, Monitored, Black, 24 AC outlet(s), C13 coupler, C19 coupler, NEMA L6 30P, 1.6 m
The NRGence PE6324L eco PDUs are low profile intelligent PDUs that contain 24 AC outlets and are available in various IEC or NEMA socket configurations. The low profile series has a smaller input region on the PDU to provide more installation space for data centers.
The PE6324L eco PDUs offers remote power control with real time power measurement allowing you to monitor the power status of devices attached to the PDUs, either at the PDU device or Bank level, from practically any location via a TCP/IP connection. The power status of each outlet can be set individually, allowing users to switch each device On/Off.
NRGence eco PDU supports any 3rd party v1, v2 & v3 SNMP Manager Software and ATEN ecoDC (Energy Management Web GUI). eco DC provides you with an easy method for managing multiple devices, offering an intuitive and user friendly Graphical User Interface that allows you to configure a PDU device and monitor power status of the equipment connected to it.
The PE6324L eco PDUs offers remote power control with real time power measurement allowing you to monitor the power status of devices attached to the PDUs, either at the PDU device or Bank level, from practically any location via a TCP/IP connection. The power status of each outlet can be set individually, allowing users to switch each device On/Off.
NRGence eco PDU supports any 3rd party v1, v2 & v3 SNMP Manager Software and ATEN ecoDC (Energy Management Web GUI). eco DC provides you with an easy method for managing multiple devices, offering an intuitive and user friendly Graphical User Interface that allows you to configure a PDU device and monitor power status of the equipment connected to it.
| Design | |
| PDU types A power distribution unit (PDU) is a device fitted with multiple outputs designed to distribute electric power, especially to racks of computers and networking equipment located within the data center. PDUs vary from simple and inexpensive rack-mounted "power strips" to larger floor-mounted PDUs with multiple functions including power filtering to improve power quality, intelligent load balancing, and remote monitoring and control by LAN or SNMP. | Metered, Monitored, Switched |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Ports & interfaces | |
| AC outlets quantity The number of sockets in the device where AC electrical power can be connected. | 24 AC outlet(s) |
| Power plug A power plug is a 2 or 3 pinned device that is placed into an electrical socket in order to make an electrical connection. | NEMA L6-30P |
| AC outlet types The type of outlet for AC electricity. | C13 coupler, C19 coupler |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 1 |
| Features | |
| Cable length How long the cable is. | 1.6 m |
| Security algorithms Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product. | 128-bit SSL |
| Password protection The computer, smartphone etc. can only be used when the correct password is entered, therefore making it more secure. |
 |
| Management features | |
| Monitoring | Current, Power, Voltage |
| Supported network protocols Network protocols tested as compatible with this product e.g. FTP,HTML, POP. | TCP/IP, UDP, HTTP, HTTPS, SSL, DHCP, SMTP, NTP, DNS, Auto Sense, Ping, Telnet, and SNMP V1,V2&V3 |
| Power | |
| Nominal input voltage The voltage which the manufacturer recommends that the device needs to operate normally. | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Maximum current The greatest possible amount of current, which is a quantity representing the rate of flow of electric charge. | 30 A |
| Block 1 output current | 15 A |
| Block 2 output current | 15 A |
| Nominal output voltage The voltage which the manufacturer states that the device can produce. | 100 - 240 V |
| Load capacity | 6240 VA |
| Power protection features Features that protect the device against power problems e.g. overload. | Overload |
| Circuit breaker |
|
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 66 mm |
| Depth The distance from the front to the back of something. | 1775 mm |
| Height The measurement of the product from head to foot or from base to top. | 44 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 5.76 kg |
| Packaging content | |
| Manual |
|
| Rack mount kit |
|
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 50 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Technical details | |
| Sustainability compliance |
|
| Sustainability certificates | Federal Communications Commission (FCC) |
| SKU | 700250 |
| MPN | PE6324LB-AX |
| Brand | ATEN |
| Product Condition | Brand New/Unused |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.aten.com/ |
