Aten 305m HDBaseT SF/UTP CAT6 Cable
Item No:
699278
MPN:
2L-2910
$9,999.00
Payment options
Shipping Information
- Unavailable for shipping
- This product is not currently available for purchase
Store Availability
- Unavailable at Bankstown Store
- Unavailable at Castle Hill Store
- Unavailable at Northmead Store

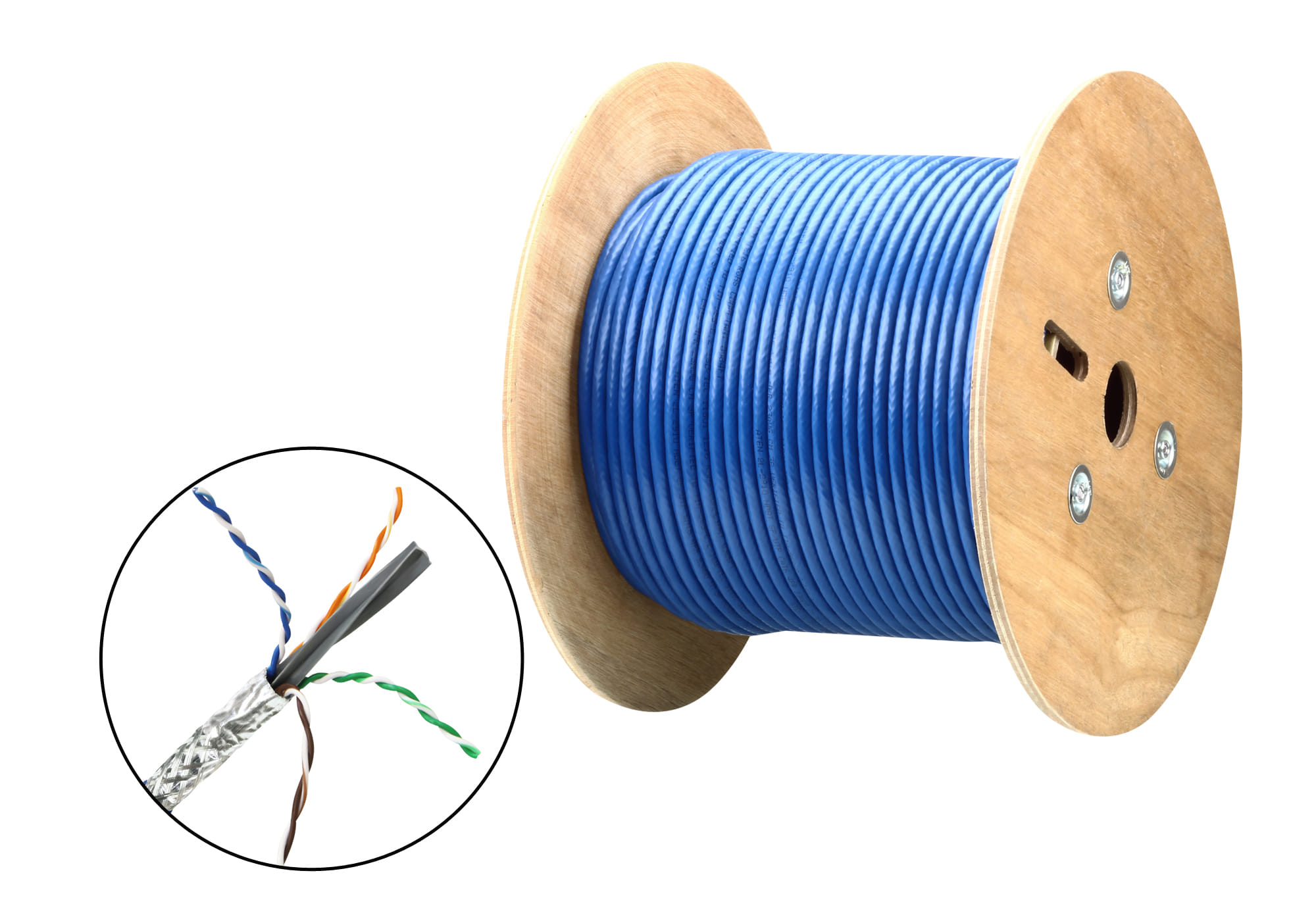

ATEN HDBaseT SF/UTP CAT 6 Cable; 305M, Frequency up to 400 MHz, 305 m, Cat6, SF/UTP (S-FTP)
The 2L-2910 is a twisted pair cable engineered for optimum signal transmission at resolutions up to 4K including digital and analogue data, audio, and video applications. The cable supports sweep frequency up to 400 MHz and has been verified to meet performance requirements set by the HDBaseT Alliance.
1 x 2L-2910 305M HDBaseT SF/UTP CAT 6 Cable
1 x 2L-2910 305M HDBaseT SF/UTP CAT 6 Cable
| Features | |
| Product colour The colour e.g. red, blue, green, black, white. | Blue |
| Cable length How long the cable is. | 305 m |
| Cable standard The category of the cable, which is determined by performance characteristics and test requirements. | Cat6 |
| Cable shielding The protective layer for the cable, typically made of plastic. | SF/UTP (S-FTP) |
| Connector 1 This is the first connector in the device. |
 |
| Connector 2 This is the second connector in the device. |
|
| Connector 1 gender The gender of the first connector of the product. Each half of a pair of mating connectors is assigned the designation male or female, the part bearing one or which fits into another being called male. |
|
| Connector 2 gender The gender of the second connector of the product. Each half of a pair of mating connectors is assigned the designation male or female, the indented one or the one fitting around the other being called female. |
|
| Connector contacts plating What the connector contacts are covered with (layer on top). | Copper |
| Connector shielding |
 |
| Connector shield material | Aluminium |
| Jacket material | Polyvinyl chloride (PVC) |
| Cable shape | Round |
| Conductor type | Stranded |
| Conductor material | Copper |
| Cable type Type of cable e.g. electicity cable, optical cable. | Crossover cable |
| Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. | IEEE 802.3af, IEEE 802.3at |
| AWG wire size | 23 |
| Frequency | 400 MHz |
| Harmonized System (HS) code | 84733080 |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | -20 - 60 °C |
| Weight & dimensions | |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 19.6 kg |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Package weight Weight of the packaged product. | 20.4 kg |
| Package type The type of product package e.g. box. | Wooden drum |
| Logistics data | |
| Master (outer) case net weight | 19.6 kg |
| Master (outer) case width | 408 mm |
| Master (outer) case length | 408 mm |
| Master (outer) case gross weight | 20.4 kg |
| Master (outer) case height | 288 mm |
| Products per master (outer) case | 1 pc(s) |
| SKU | 699278 |
| MPN | 2L-2910 |
| Brand | ATEN |
| Product Condition | Brand New/Unused |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.aten.com/ |
