The VS381 3-Port HDMI Switch allows you to quickly and easily connect 3 HDMI input sources to your HDMI display device. It allows convenient switching between digital devices such as DVD players, satellite receivers and digital camcorders. You can select the desired input source via a remote control unit or pushbuttons located on the front of the switch.

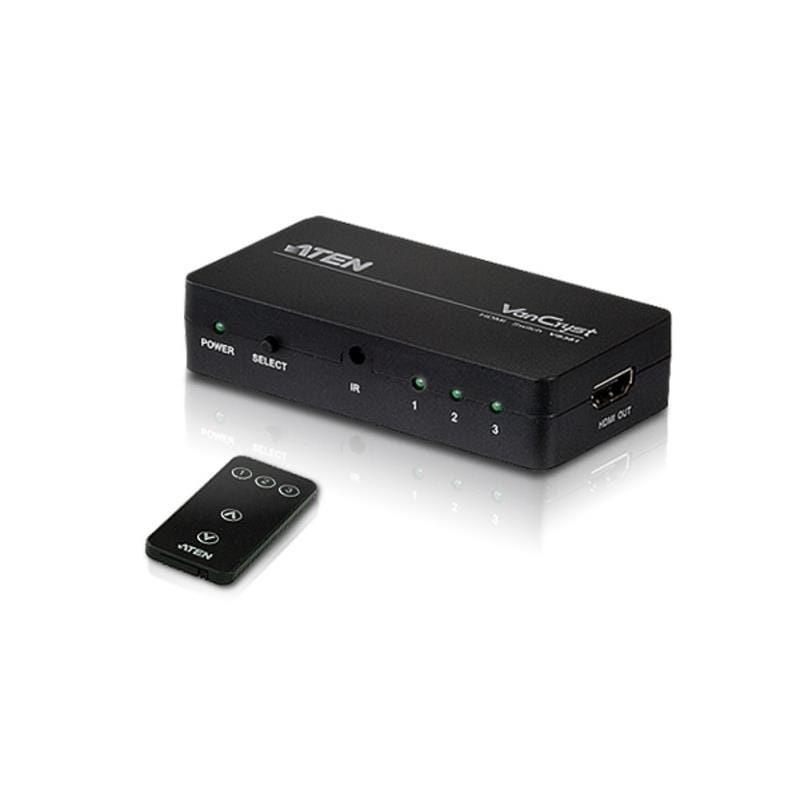

ATEN 3-Port HDMI Switch
The VS381 3-Port HDMI Switch allows you to quickly and easily connect 3 HDMI input sources to your HDMI display device. It allows convenient switching between digital devices such as DVD players, satellite receivers and digital camcorders. You can select the desired input source via a remote control unit or pushbuttons located on the front of the switch.
Specifications:
| Connectors | Device | HDMI In | 3 x HDMI Type A Female (Black) |
| Display | HDMI Out | 1 x HDMI Type A Female (Black) | |
| IR | 1 x IR Receiver | ||
| Power | 1 x DC Jack | ||
| LEDs | Selected | 3 (Green) | |
| Power | 1 (Green) | ||
| Video | HDTV resolutions of 480p, 720p, 1080i, 1080p (1920x1080); PC resolutions of VGA, SVGA, XGA,SXGA, and WUXGA (1920x1200) | ||
| Power consumption | DC5V, 3W | ||
| Environment | Operating Temp. | 0 - 50°C | |
| Storage Temp. | -20 - 60°C | ||
| Humidity | 0 - 80% RH, Non-condensing | ||
| Physical Properties | Housing | Plastic | |
| Weight | 0.07kg | ||
| Dimensions (LxWxH) | 9.60 x 5.12 x 2.24cm | ||
Package Contents
- 1x VS381 3-Port HDMI Switch
- 1x IR Remote Control
| Ports & interfaces | |
| Video port type The type of socket in the device for connecting a video e.g. SCART. | HDMI |
| HDMI ports quantity The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards. | 4 |
| HDMI in Port (socket) for HDMI input. | 3 |
| Number of HDMI outputs Port (socket) for HDMI output. | 1 |
| DC-in jack The socket/plug where the DC electricity supply connects to the device. |
 |
| Features | |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Plug and Play Indicates whether this product supports is "plug and play". Plug and play is hardware or software that, after being installed ("plugged in"), can immediately be used ("played with"), as opposed to hardware or software which requires configuration. |
|
| HDCP High-bandwidth Digital Content Protection (HDCP) is a form of digital copy protection to prevent copying of digital audio and video content as it travels across connections. |
|
| Material The material from which a thing is or can be made e.g. wood, plastic. | Plastic |
| Supported graphics resolutions The graphic resolutions that can be displayed by the device. The graphic resolution describes the width and height dimensions of a display, such as a computer monitor, measured in pixels. | 1024 x 768 (XGA),1280 x 1024 (SXGA),1920 x 1080 (HD 1080),1920 x 1200 (WUXGA),640 x 480 (VGA),800 x 600 (SVGA) |
| Supported video modes The video modes that can be displayed by the device. | 1080i,1080p,480p,720p |
| Full HD Full High Definition (HD) means that a display supports a resolution of 1920 x 1080 pixel, and has a digital TV connection. |
|
| LED indicators |
|
| Maximum resolution The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. | 1920 x 1200 pixels |
| Power | |
| Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. | 3 W |
| Power requirements | 5V DC |
| Certificates | |
| RoHS compliance The Restriction of Hazardous Substances (RoHS) Directive aims to restrict certain dangerous substances commonly used in electrical and electronic equipment. Any RoHS compliant product is tested for the presence of Lead (Pb), Cadmium (Cd), Mercury (Hg), Hexavalent chromium (Hex-Cr), Polybrominated biphenyls (PBB), and Polybrominated diphenyl ethers (PBDE). PBB and PBDE are flame retardants used in several plastics. For Cadmium and Hexavalent chromium, there must be less than 0.01% of the substance by weight at raw homogeneous materials level. For Lead, PBB, and PBDE, there must be no more than 0.1% of the material, when calculated by weight at raw homogeneous materials. Any RoHS compliant component must have 100 ppm or less of mercury and the mercury must not have been intentionally added to the component. In the EU, some military and medical equipment are exempt from RoHS compliance. |
|
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 51.2 mm |
| Depth The distance from the front to the back of something. | 96 mm |
| Height The measurement of the product from head to foot or from base to top. | 22.4 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 70 g |
| Dimensions (WxDxH) Dimensions of the product (Width x Depth x Height). | 51.2 x 96 x 22.4 mm |
| Packaging content | |
| Number of products included The number of products that are included in the package. | 1 pc(s) |
| Handheld remote control Component of an electronics device, most commonly a television set, DVD player and home theater systems originally used for operating the device wirelessly from a short line-of-sight distance. |
|
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 50 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Technical details | |
| Connector type The type of connector e.g. USB. | Type A Female |
| SKU | 234549 |
| MPN | VS381-AT |
| Brand | ATEN |
| Product Condition | Brand New/Unused |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.aten.com/ |
