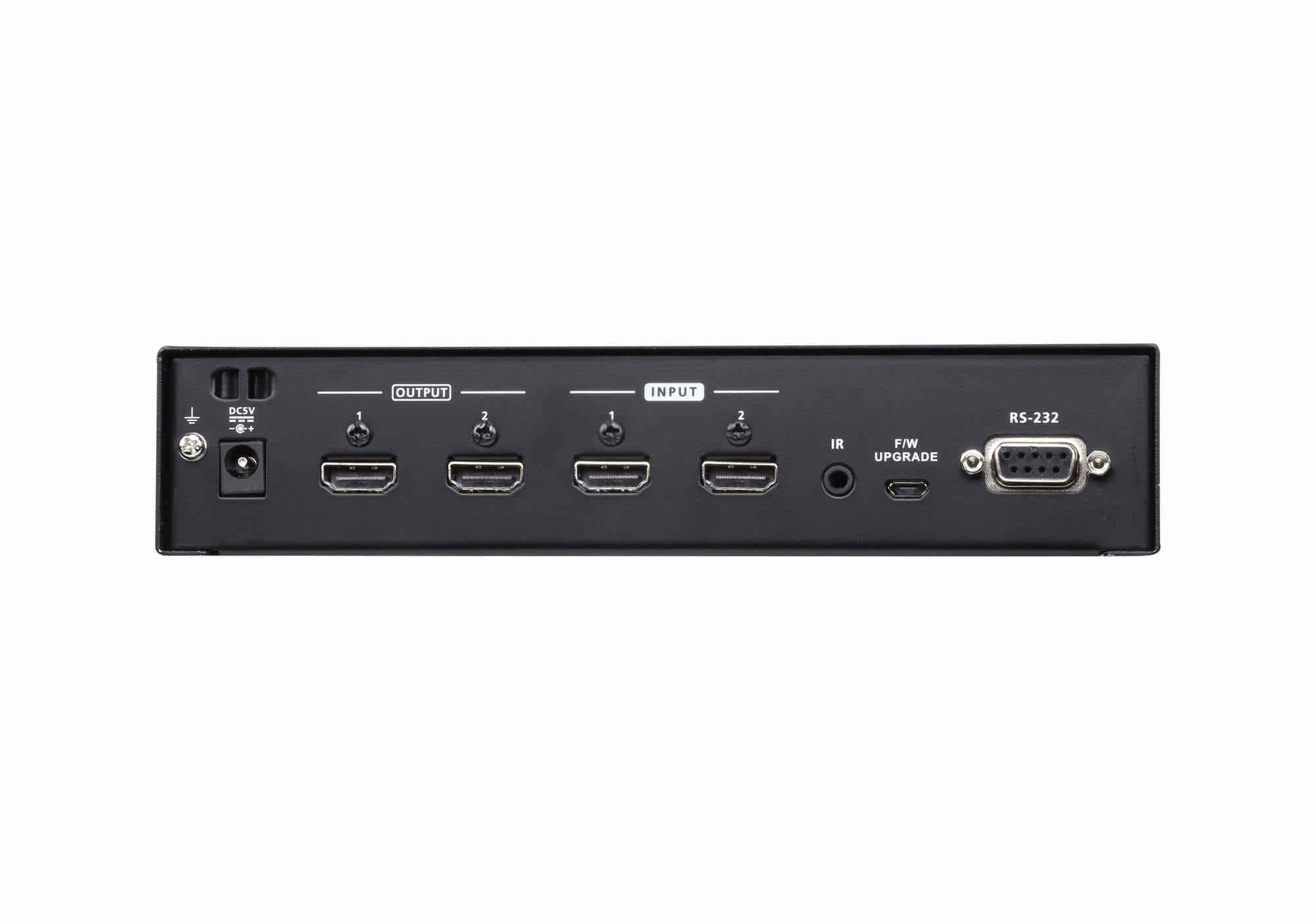

Aten 2x2 4K HDMI Matrix, control via front-panel pushbuttons, IR remote and RS232 control, EDID management
Connects 2 HDMI sources to any 2 HDMI displays
HDMI (3D, Deep Color, 4k); HDCP 1.4 Compatible
Max. Data Rate 10.2 Gbps (3.4 Gbps Per Lane)
Multiple Control Methods- system management via front panel push buttons, IR remote and RS- 232 control
Package Contents
1x VM0202H 2x2 4K HDMI Matrix Switch
1x Rack Mount Kit
1x Power Adapter
1x IR Control
1x IR Receiver
1x User Instructions
HDMI (3D, Deep Color, 4k); HDCP 1.4 Compatible
Max. Data Rate 10.2 Gbps (3.4 Gbps Per Lane)
Multiple Control Methods- system management via front panel push buttons, IR remote and RS- 232 control
Package Contents
1x VM0202H 2x2 4K HDMI Matrix Switch
1x Rack Mount Kit
1x Power Adapter
1x IR Control
1x IR Receiver
1x User Instructions
| Ports & interfaces | |
| Number of computers controlled The amount of computers controlled by this device. | 2 |
| Keyboard port type The type of socket in the device for connecting a keyboard e.g. USB. |
 |
| Mouse port type |
|
| Video port type The type of socket in the device for connecting a video e.g. SCART. | HDMI |
| HDMI ports quantity The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards. | 4 |
| HDCP High-bandwidth Digital Content Protection (HDCP) is a form of digital copy protection to prevent copying of digital audio and video content as it travels across connections. |
 |
| DC-in jack The socket/plug where the DC electricity supply connects to the device. |
|
| Performance | |
| HD type Type of supported High Definition (e.g. Full HD, 4K Ultra HD). | 4K Ultra HD |
| Maximum resolution The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. | 4096 x 2160 pixels |
| Maximum operating distance The maximum distance from which you can operate the device. | 15 m |
| Design | |
| Rack mounting The type of mounting that can position devices in a shelving system (rack). |
|
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Housing material What the casing of the product is made of. | Metal |
| Display | |
| Built-in display A display which is part of the product, so you do not need to attach another display. |
|
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 76 mm |
| Depth The distance from the front to the back of something. | 200 mm |
| Height The measurement of the product from head to foot or from base to top. | 42 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 580 g |
| Technical details | |
| Sustainability certificates | RoHS |
| SKU | 453428 |
| MPN | VM0202H-AT-U |
| Brand | ATEN |
| Product Condition | Brand New/Unused |
| Adapter Type | HDMI Adapter |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 2 Years Warranty |
