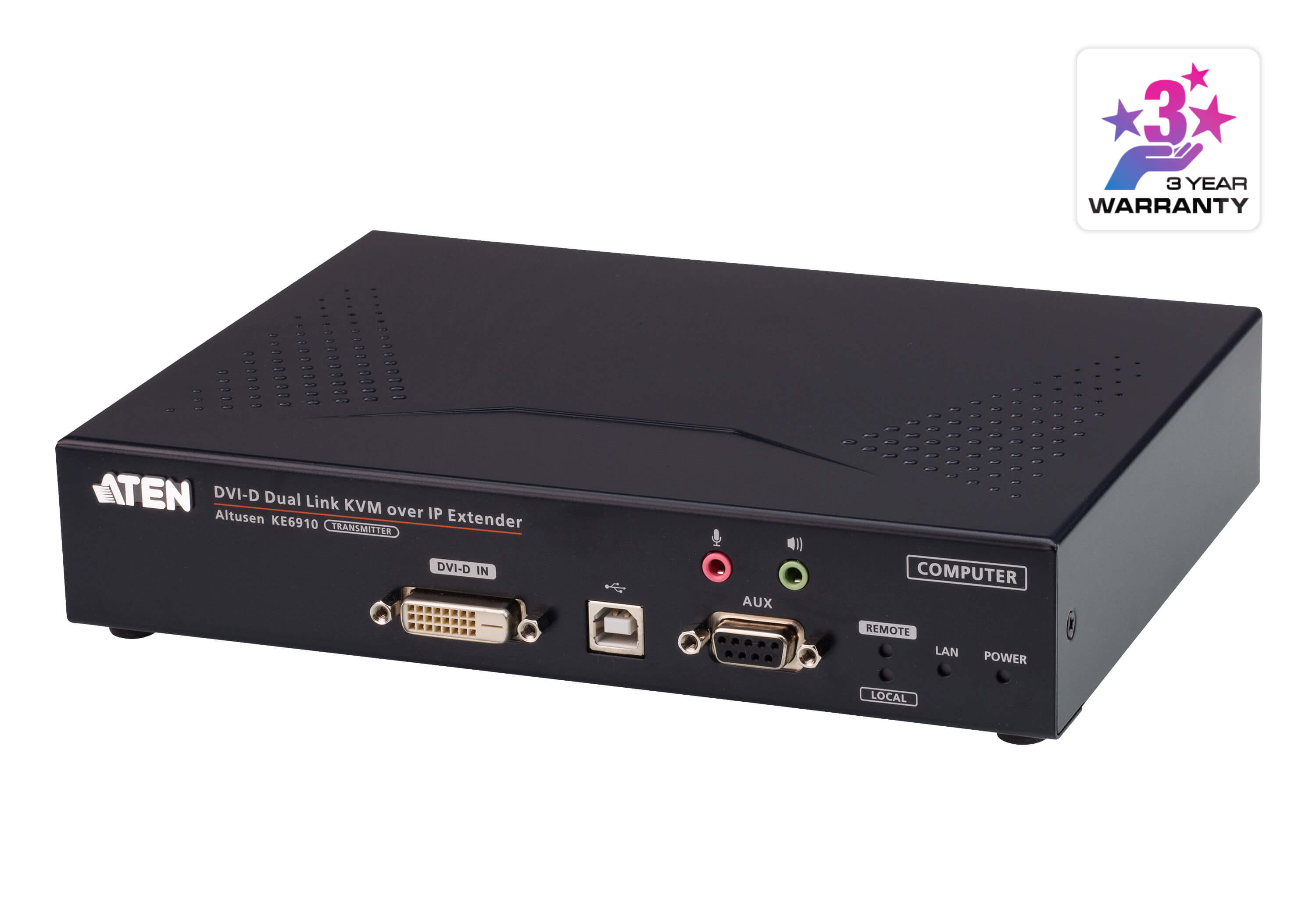

Aten DVI Dual Link KVM over IP Transmitter with Dual DC Power, supports up to 2560 x 1600 @ 60 Hz, USB and 3.5mm Audio input and Output
SFP port for fiber-optic connection support, secondary power adapter sold separately
Supports video resolutions up to 2560 x 2048 @50Hz, including resolutions of 2560 x 1600 @60Hz and 2048 x 2048 @60Hz
Adaptive Fast Switching " automatically fast switches between different Tx video resolutions on a Rx display within 0.3 second
Push' and Pull' - share content instantly by just one click
Supports power redundancy with dual DC Jacks
Supports video resolutions up to 2560 x 2048 @50Hz, including resolutions of 2560 x 1600 @60Hz and 2048 x 2048 @60Hz
Adaptive Fast Switching " automatically fast switches between different Tx video resolutions on a Rx display within 0.3 second
Push' and Pull' - share content instantly by just one click
Supports power redundancy with dual DC Jacks
| Features | |
| Type Characteristics of the device. | Transmitter |
| Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless. | Wired |
| Maximum transfer distance The greatest distance over which the data/signal can be transferred. | 10000 m |
| Cable types supported | Cat5e |
| Rack mounting The type of mounting that can position devices in a shelving system (rack). |
 |
| Maximum digital resolution | 2560 x 2048 pixels |
| KVM port selection | Push-buttons |
| On Screen Display (OSD) |
|
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Material The material from which a thing is or can be made e.g. wood, plastic. | Metal |
| USB 2.0 ports quantity Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black. | 2 |
| LED indicators |
|
| Transmitter | |
| Transmitter video port type | DVI-D |
| Transmitter local video port type | DVI-D |
| Transmitter local keyboard/mouse port type | USB |
| RJ-45 ports quantity (transmitter) | 1 |
| Power | |
| Power consumption (transmitter) (max) | 10.02 W |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 50 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Weight & dimensions | |
| Transmitter width | 16.3 cm |
| Transmitter depth | 21.5 cm |
| Transmitter height | 4.18 cm |
| Transmitter weight | 1.13 kg |
| Packaging content | |
| AC adapter included |
|
| Cables included | AC, KVM |
| Manual |
|
| Ports & interfaces | |
| USB port type | USB Type-A |
| RS-232 ports The number of sockets (ports) for RS-232. An RS-232 serial port was once a standard feature of a personal computer, used for connections to modems, printers, mice, data storage, uninterruptible power supplies, and other peripheral devices. Now it has been largely replaced by USB and other ports. | 1 |
| RJ-45 ports quantity | 1 |
| PC Audio in The socket (port) for the PC audio input. |
|
| PC Audio out |
|
| SKU | 646268 |
| MPN | KE6910T-AX-U |
| Brand | ATEN |
| Product Condition | Brand New/Unused |
| Product Use | General |
