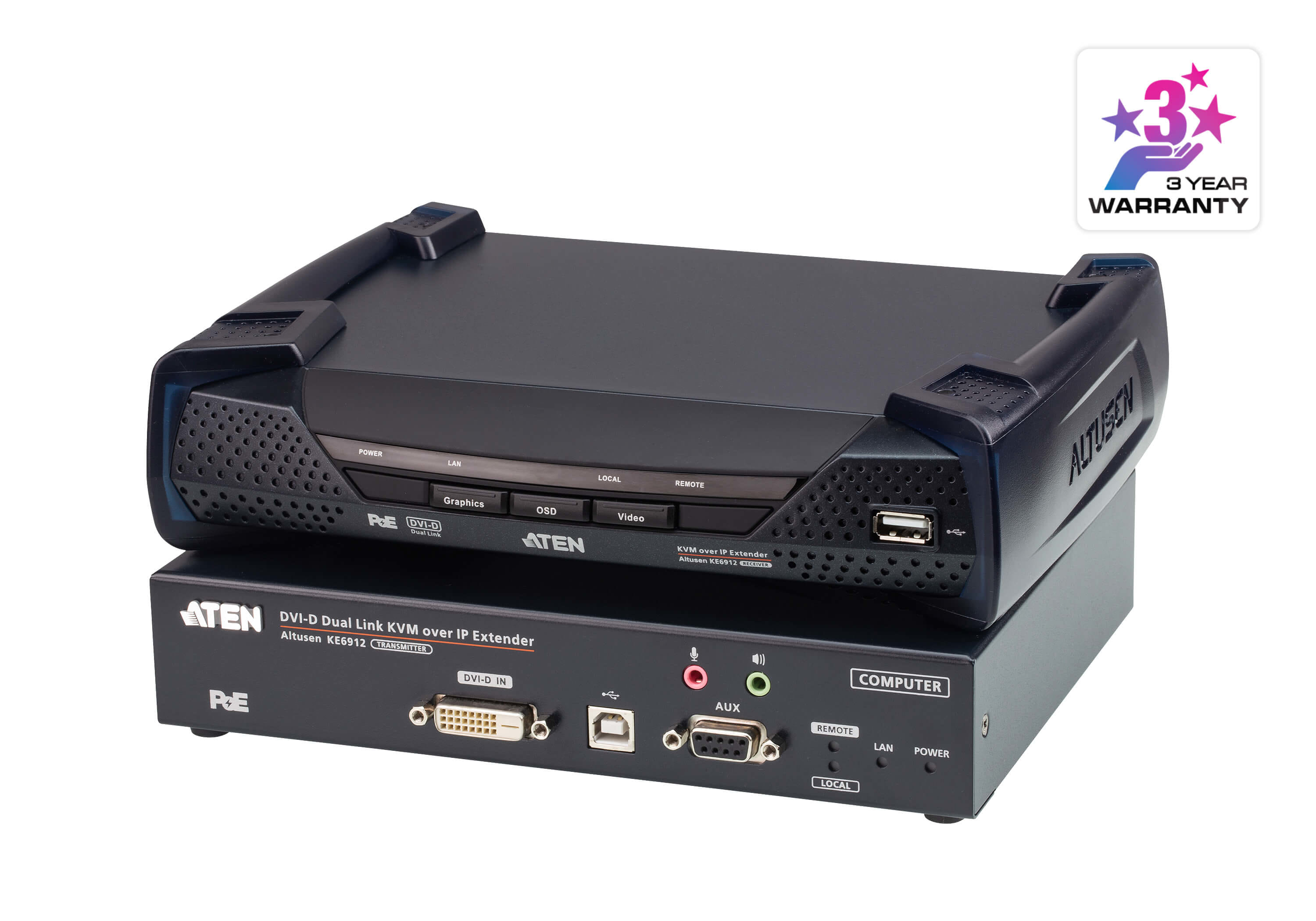

Aten 2K DVI-D KVM over IP Extender
Item No:
700085
MPN:
KE6912-AX
$9,999.00
Payment options
Shipping Information
- Unavailable for shipping
- This product is not currently available for purchase
Store Availability
- Unavailable at Bankstown Store
- Unavailable at Castle Hill Store
- Unavailable at Northmead Store
ATEN 2K DVI-D dual-link KVM over IP Extender, Transmitter & receiver, Wired, Cat5e, 2560 x 2048 pixels, Black, Metal
The KE6912 2K DVI-D Dual Link KVM over IP Extender consists of a high performance IP-based transmitter (KE6912T) that connects to the computer and receiver (KE6912R) that provides console access from a separate location. The KE6912 allows access to a computer system from a remote USB console (USB keyboard, USB mouse, DVI monitor) over an intranet, enabling users to locate computers in a secure and temperature controlled environment, which is isolated from users' workstation.
1 x KE6912T 2K DVI-D Dual Link KVM over IP Transmitter
1 x KE6912R 2K DVI-D Dual Link KVM over IP Receiver
1 x LIN5-36W1-W11G KVM Cable (DVI-D dual-link, USB, Audio; 1.8m/6ft)
1 x Foot Pad Set (4 pcs.)
1 x Mounting Kit
1 x User Instructions
1 x KE6912T 2K DVI-D Dual Link KVM over IP Transmitter
1 x KE6912R 2K DVI-D Dual Link KVM over IP Receiver
1 x LIN5-36W1-W11G KVM Cable (DVI-D dual-link, USB, Audio; 1.8m/6ft)
1 x Foot Pad Set (4 pcs.)
1 x Mounting Kit
1 x User Instructions
| Features | |
| Type Characteristics of the device. | Transmitter & receiver |
| Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless. | Wired |
| Cable types supported | Cat5e |
| Rack mounting The type of mounting that can position devices in a shelving system (rack). |
 |
| Maximum digital resolution | 2560 x 2048 pixels |
| On Screen Display (OSD) |
|
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Material The material from which a thing is or can be made e.g. wood, plastic. | Metal |
| LED indicators |
|
| Certification | RoHS |
| Transmitter | |
| Transmitter video port type | DVI-D |
| Transmitter local keyboard/mouse port type | USB |
| RJ-45 ports quantity (transmitter) | 1 |
| Receiver | |
| Receiver local video port type | DVI-D |
| Receiver local keyboard/mouse port type | USB |
| RJ-45 ports quantity (receiver) | 1 |
| Power | |
| AC adapter output voltage | 5 V |
| Power consumption (transmitter) (max) | 12.53 W |
| Power consumption (receiver) (max) | 11.27 W |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 50 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Weight & dimensions | |
| Transmitter width | 21.5 cm |
| Transmitter depth | 16.3 cm |
| Transmitter height | 4.18 cm |
| Transmitter weight | 1.17 kg |
| Receiver width | 22.8 cm |
| Receiver depth | 17.2 cm |
| Receiver height | 5.48 cm |
| Receiver weight | 1.28 kg |
| Packaging data | |
| Package width The distance from one side of the packaging to the other. | 247 mm |
| Package depth The distance from the front to the back of the packaging. | 556 mm |
| Package height The distance from the top to the bottom of the packaging. | 153 mm |
| Package weight Weight of the packaged product. | 3.4 kg |
| Technical details | |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 2.81 kg |
| Harmonized System (HS) code | 84733080 |
| Packaging content | |
| AC adapter included |
|
| Cables included | KVM |
| Manual |
|
| Ports & interfaces | |
| RS-232 ports The number of sockets (ports) for RS-232. An RS-232 serial port was once a standard feature of a personal computer, used for connections to modems, printers, mice, data storage, uninterruptible power supplies, and other peripheral devices. Now it has been largely replaced by USB and other ports. | 2 |
| PC Audio in The socket (port) for the PC audio input. |
|
| PC Audio out |
|
| Logistics data | |
| Master (outer) case net weight | 2.81 kg |
| Master (outer) case width | 247 mm |
| Master (outer) case length | 556 mm |
| Master (outer) case height | 153 mm |
| Master (outer) case gross weight | 3.86 kg |
| Products per master (outer) case | 1 pc(s) |
| SKU | 700085 |
| MPN | KE6912-AX |
| Brand | ATEN |
| Product Condition | Brand New/Unused |
| Product Use | General |
