Overview

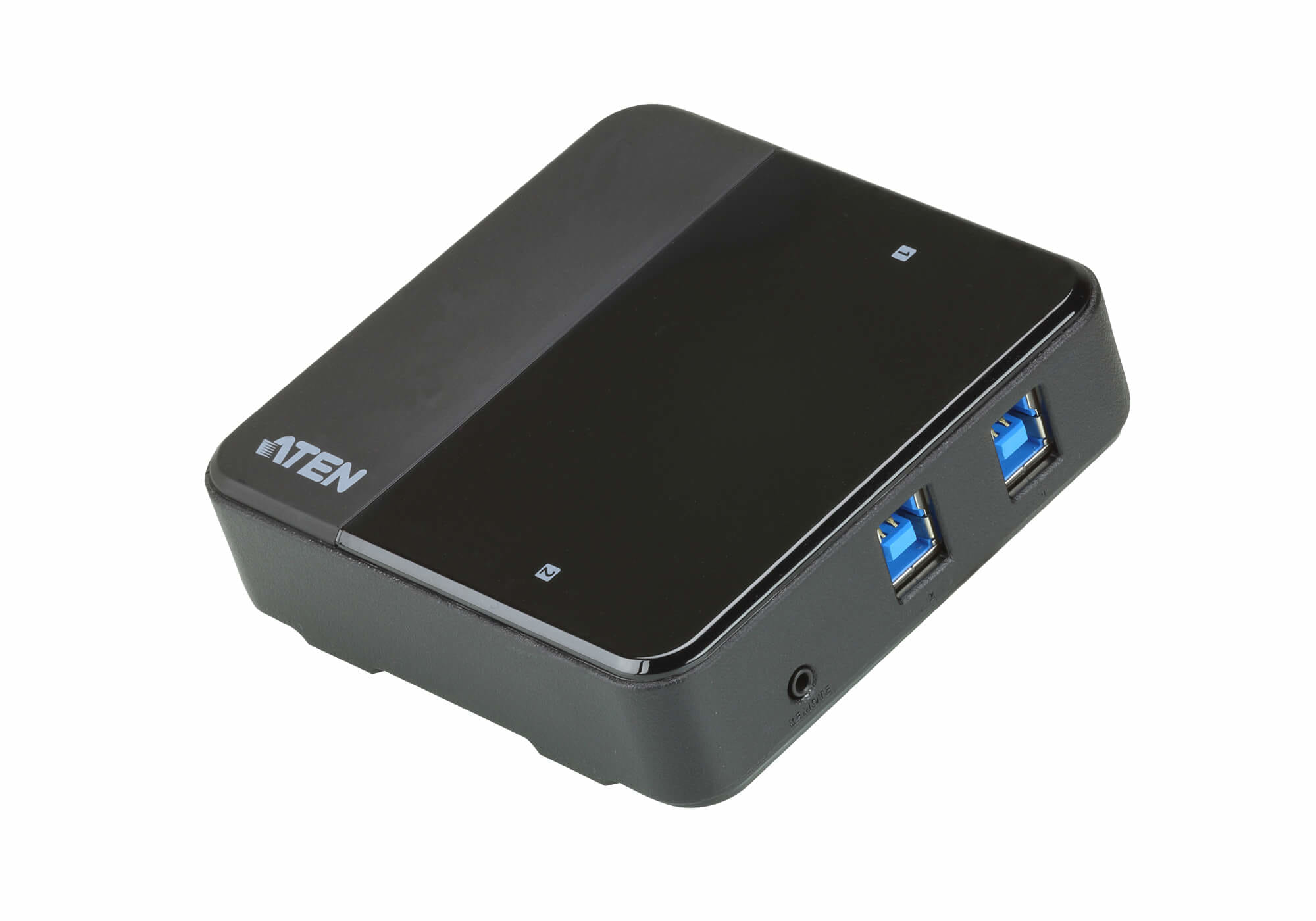

ATEN US3324 is a 2-port USB 3.1 Gen1 peripheral sharing device that allows users to share four USB devices between 2 different general computers by using USB 3.1 Gen 1 Type-B to Type-A cables.
The US3324 allows for a neat and tidy installation –The connecting cables are bundled to save the extra cost of purchasing USB cables. The additional USB 3.1 Gen 1 Type-B to Type-C cable included in the US3324
package, which can connect to the USB-C computers and allows for hybrid and flexible usage, is the most cost-effective solution for USB-C equipped laptops and tablet computers.
The US3324 is USB 3.1 Gen1 compliant, which can support data transfer rate up to 5Gbps and backwards compatible with USB 2.0 and USB1.1. It is perfect for high-bandwidth devices, such as USB docking stations or HD cameras.
In addition, the US3324 also features an external remote port selector that can simplify desktop layout, and select which computer needs to use the USB devices. With its compact and allin - one design, you can
create a space saving, convenient and productive work environment.
Package Contents
- 1x 2 x 4 USB 3.1 Gen Peripheral Sharing Switch
- 2x USB 3.1 Gen 1 Type-B to Type-A Cables 1.2M
- 1x USB 3.1 Gen 1 Type-B to Type-C Cable 1.8M
- 1x Remote Port Selector
- 1x User Instructions
Features
- Enables 2 computers to share 4 USB 3.1 Gen1 devices
- Simple port selection via remote port selector for convenient switch placement
- USB 3.1 Gen1 compliant, supporting data transfer rates of up to 5Gbps
- LEDs indicates which computer is active
- Over-current protection
- Micro USB power jack for additional power supply
- Bus-powered – no external power supply needed
- Plug and Play – no drivers or external power adapter needed
- Multiplatform support – Windows, Linux and Mac
Diagrqam
Specifications
| Computer Connections | 2 |
| Port Selection | Remote port selector |
| Connectors | |
| Computer | 2 x USB Type B Femal (Blue) |
| Device | 4 x USB Type A Female (Blue) |
| Power (Optional) | 1 x USB micro B Female (Black) |
| Cable Length | |
| USB Cable | USB 3.1 Gen 1 B to A Cable 1.2m x 2 USB 3.1 Gen 1 B to C Cable 1.8m x 1 |
| Remote Port Selector | 1.8 m |
| LEDs | |
| Selected | 2 (White) |
| Environmental | |
| Operating Temperature | 0–40°C |
| Storage Temperature | -20–60°C |
| Humidity | 0–80% RH, Non-condensing |
| Physical Properties | |
| Housing | Plastic |
| Weight | 0.45 kg ( 0.99 lb ) |
| Dimensions (L x W x H) | 9.37 x 9.30 x 2.68 cm (3.69 x 3.66 x 1.06 in.) |
| Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity | 2 |
| Remote control in | 1 |
| Performance | |
| Maximum data transfer rate | 5000 Gbit/s |
| LED indicators |
 |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Housing material What the casing of the product is made of. | Plastic |
| RoHS compliance The Restriction of Hazardous Substances (RoHS) Directive aims to restrict certain dangerous substances commonly used in electrical and electronic equipment. Any RoHS compliant product is tested for the presence of Lead (Pb), Cadmium (Cd), Mercury (Hg), Hexavalent chromium (Hex-Cr), Polybrominated biphenyls (PBB), and Polybrominated diphenyl ethers (PBDE). PBB and PBDE are flame retardants used in several plastics. For Cadmium and Hexavalent chromium, there must be less than 0.01% of the substance by weight at raw homogeneous materials level. For Lead, PBB, and PBDE, there must be no more than 0.1% of the material, when calculated by weight at raw homogeneous materials. Any RoHS compliant component must have 100 ppm or less of mercury and the mercury must not have been intentionally added to the component. In the EU, some military and medical equipment are exempt from RoHS compliance. |
|
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 93 mm |
| Depth The distance from the front to the back of something. | 93.7 mm |
| Height The measurement of the product from head to foot or from base to top. | 26.8 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 450 g |
| Packaging content | |
| Cables included | USB,USB Type-A - USB Type-B |
| Quick start guide Instructions, either online, as a computer program or in paper form, to allow you to set up and start using the product quickly. |
|
| SKU | 318605 |
| MPN | US3324-AT |
| Brand | ATEN |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Warranty Period | 2 Years Warranty |
| Warranty Contact | https://www.aten.com/ |
