The ATEN USB-to-Serial RS-232 Hub provides an external plug-and-play RS-232 serial connection for computers, notebooks, laptops, and handheld computing devices that support the USB specification. It provides a quick, simple, and cost-effective solution and is ideal for various communication and automation applications.

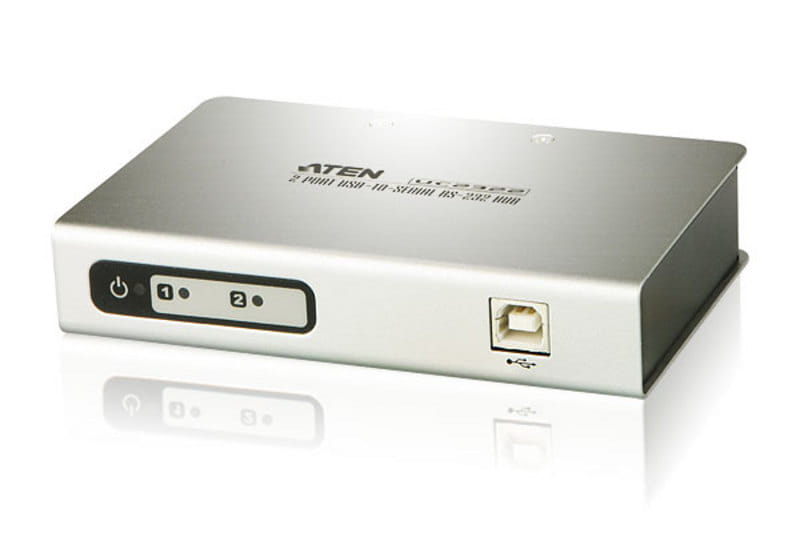

ATEN 2-Port USB to RS-232 Hub
The ATEN USB-to-Serial RS-232 Hub provides an external plug-and-play RS-232 serial connection for computers, notebooks, laptops, and handheld computing devices that support the USB specification. It provides a quick, simple, and cost-effective solution and is ideal for various communication and automation applications.
ATEN provides 4 models in this series: 2/4-Port USB-to-Serial RS-232 Hub; 2/4-Port USB-to-Serial RS-422/485 Hub
Specifications:
| Function | UC2322 | |
| Device Connections | 2 | |
| Connectors | USB | 1 x USB Type B Female (White) |
| Serial | 2 x DB-9 Male (Black) | |
| Power | 1 x DC Jack | |
| LDEs | Port Status | 2 (Green) |
| Power | 1 (Orange) | |
| Data Transfer Rate | 115.2 Kbps (max.) | |
| FIFO | 16 byte Hardware FIFO | |
| USB Specification | USB 1.1 Compliant; USB 2.0 Compatible | |
| RS-232 Signal | TXD, RXD, RTS, CTS, DTR, DSR, DCD, RI, GND | |
| Data Bit | 5, 6, 7, 8 | |
| Stop Bit | 1, 1.5, 2 | |
| Power Mode | Bus Powered; use of Power Adapter is optional | |
| Power consumption | 0.5W | |
| Environment | Operating Temp. | 0-50°C |
| Storage Temp. | -20-60°C | |
| Humidity | 0-80% RH, Non-condensing | |
| Physical Properties |
Housing | Metal |
| Weight | 0.30 kg | |
| Dimensions ( L x W x H ) |
12.50 x 8.15 x 2.50 cm | |
Package Contents
- 1 x USB-to-Serial Hub
- 1 x USB Cable
- 1 x Installation Disk
- 1 x User Instructions
| Ports & interfaces | |
| Hub interfaces A hub is a device for connecting multiple devices together. The hub interface is where the hub connects to other devices via input/output (I/O) ports. | Serial,USB 2.0 |
| USB 2.0 ports quantity Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black. | 2 |
| Ports quantity The number of ports or external interfaces to which other equipment can be connected. | 3 |
| DC-in jack The socket/plug where the DC electricity supply connects to the device. |
 |
| Features | |
| Product colour The colour e.g. red, blue, green, black, white. | Silver |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 81.5 mm |
| Depth The distance from the front to the back of something. | 125 mm |
| Height The measurement of the product from head to foot or from base to top. | 25 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 300 g |
| SKU | 234591 |
| MPN | UC2322-AT |
| Brand | ATEN |
| Product Condition | Brand New/Unused |
| Adapter Type | USB Adapter |
| Stock Availability | Available for Shipping |
| Warranty Period | 2 Years Warranty |
| Warranty Contact | https://www.aten.com/ |
