Aten 2-Port USB DVI Dual Display PP4 KVM With Common Access Card

Item No:
699812
MPN:
CS1142D4C-AT-U
$9,999.00
Payment options

This product is currently not available!

Shipping Information
  • Unavailable for shipping
  • This product is not currently available for purchase
Store Availability
  • Unavailable at Bankstown Store
  • Unavailable at Castle Hill Store
  • Unavailable at Northmead Store

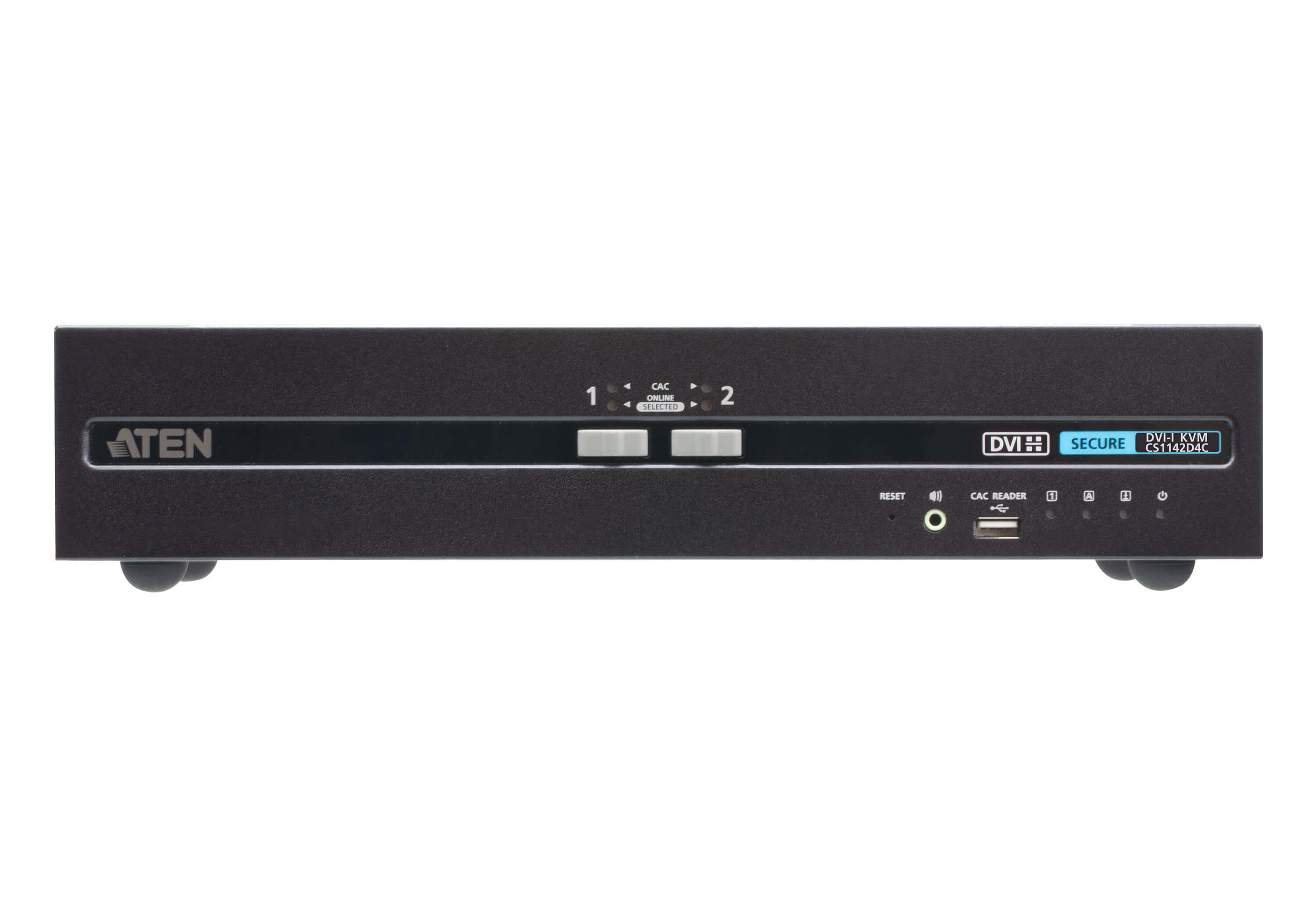

ATEN 2 Port USB DVI Dual Display Secure KVM Switch with CAC (PSD PP v4.0 Compliant), 3840 x 2160 pixels, 4K Ultra HD, Rack mounting, 6.3 W, Black
ATEN PSD PP v4.0 Secure KVM Switch CS1142D4C is specifically designed to meet the stringent security requirement of secure defense and intelligence installations. ATEN PSD PP v4.0 Secure KVM Switch CS1142D4C is compliant with PSD PP v4.0 (Protection Profile for Peripheral Sharing Device, Version 4.0) standard certified by the National Information Assurance Partnership (NIAP).

ATEN PSD PP v4.0 Secure KVM Switch CS1142D4C provides isolation between computer sources and peripherals while sharing a single keyboard, mouse, monitor, speaker set, and Common Access Card (CAC) reader between connected computers of various security classifications. Compliance with PSD PP v4.0 ensures peripheral sharing capabilities provide maximum user data security when switching port focus, preventing unauthorized data flows or leakage between connected sources. Key protections include isolation and unidirectional data flow, restricted peripheral connectivity and filtering, user data protection, configurable device filtration and management, strict audio filtration, and always on tamper proof design, keeping sensitive assets isolated and providing advanced security and a user friendly design for instantly secure deployment.

To enhance security, ATEN PSD PP v4.0 Secure KVM SwitchCS1142D4C only offers manual switching methods including front panel pushbuttons and Remote Port Selector (RPS) 1. With multi " layered security, ATEN PSD PP v4.0 Secure KVM Switch CS1142D4C ensures high level desktop security and data safekeeping for applications such as government and military agencies, healthcare providers, banking and finance institutions, and other organizations that often handle sensitive or confidential data on separate networks.
Ports & interfaces
Number of computers controlled The amount of computers controlled by this device. 2
Keyboard port type The type of socket in the device for connecting a keyboard e.g. USB. USB
Mouse port type USB
Video port type The type of socket in the device for connecting a video e.g. SCART. DVI-I
DVI-I ports quantity This is the amount of DVI-I interfaces. Digital Visual Interface (DVI) is a video display interface developed by the Digital Display Working Group (DDWG). The digital interface is used to connect a video source to a display device, such as a computer monitor. DVI-I is DVI integrated, which means it can support digital and analog. 4
USB 2.0 Type-B ports quantity 4
Console ports 3.5mm headphone, DVI-I, USB A
Console USB ports quantity 2
Console DVI-I ports quantity 2
Audio connections Cables used to connect audio inputs or audio outputs to another device e.g, audio amplifier.
Headphone outputs Number of sockets /ports where headphones are connected. 3
RJ-11 ports quantity 1
Performance
HD type Type of supported High Definition (e.g. Full HD, 4K Ultra HD). 4K Ultra HD
Maximum resolution The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. 3840 x 2160 pixels
Video bandwidth 30 Hz
Number of displays supported The number of displays that can be used with this product. 2
Design
Rack mounting The type of mounting that can position devices in a shelving system (rack).
Product colour The colour e.g. red, blue, green, black, white. Black
Housing material What the casing of the product is made of. Metal
LED indicators
Push button
Display
Built-in display A display which is part of the product, so you do not need to attach another display.
Power
Power source What is providing power for the product e.g. mains electricity. AC
AC input voltage The voltage of the AC electricity that is inputted into the product. 100 - 240 V
AC input frequency 50 - 60 Hz
Input current 1 A
Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. 6.3 W
Sustainability
Sustainability certificates RoHS
Operational conditions
Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. 0 - 50 °C
Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. -20 - 60 °C
Operating relative humidity (H-H) 0 - 80%
Weight & dimensions
Width The measurement or extent of something from side to side. 335 mm
Depth The distance from the front to the back of something. 163.9 mm
Height The measurement of the product from head to foot or from base to top. 65.5 mm
Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. 219 g
Packaging content
Cables included AC
Manual
More Information
SKU 699812
MPN CS1142D4C-AT-U
Brand ATEN
Product Condition Brand New/Unused
Product Use General
Warranty Period 1 Year Warranty
Warranty Contact https://www.aten.com/
