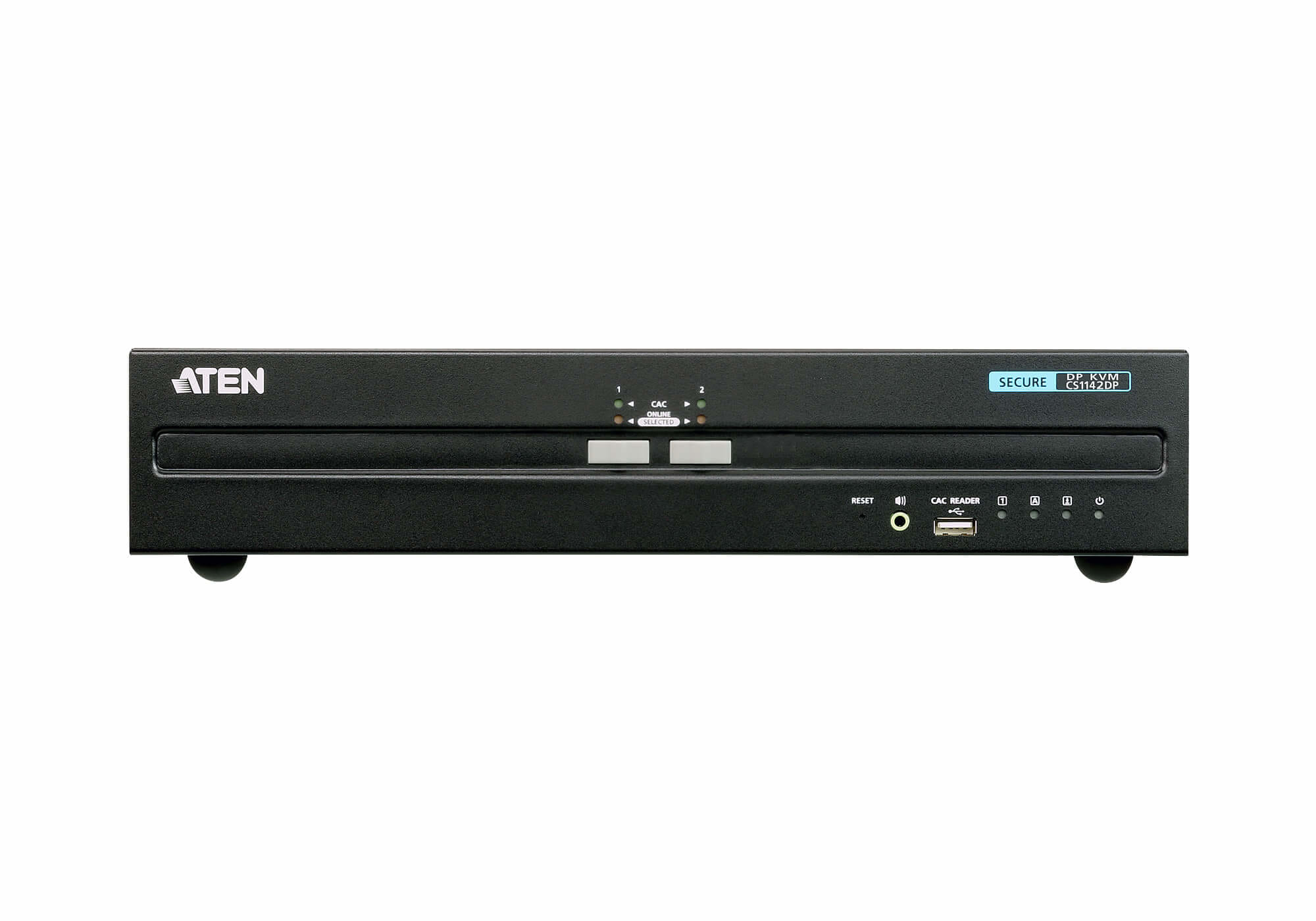

Aten 2-Port USB DisplayPort Dual Display Secure KVM Switch

Item No:
767069
MPN:
CS1142DP-AT-U
$9,999.00
Payment options

This product is currently not available!

Shipping Information
  • Unavailable for shipping
  • This product is not currently available for purchase
Store Availability
  • Unavailable at Bankstown Store
  • Unavailable at Castle Hill Store
  • Unavailable at Northmead Store
Product Summary Summary Details Details Specifications Specs Related Products Related Reviews Reviews
ATEN CS1142DP-AT-U, 3840 x 2160 pixels, 4K Ultra HD, Black
ATEN PSS PP v3.0 Secure KVM Switch (CS1142DP) is specifically designed to meet the stringent security requirement of secure defense and intelligence installations. ATEN PSS PP v3.0 Secure KVM Switch (CS1142DP) is compliant with PSS PP v3.0 (Protection Profile for Peripheral Sharing Switch, Version 3.0) standard certified by the National Information Assurance Partnership (NIAP).
1x CS1142DP 2-Port USB DisplayPort Dual Display Secure KVM Switch
1x LIN2-418K-E12G Power Cord
1x User Instructions
Ports & interfaces
Number of computers controlled The amount of computers controlled by this device. 2
Keyboard port type The type of socket in the device for connecting a keyboard e.g. USB. USB
Mouse port type USB
Video port type The type of socket in the device for connecting a video e.g. SCART. DisplayPort
DisplayPorts quantity Number of DisplayPorts. A DisplayPort is a digital display interface developed by the Video Electronics Standards Association (VESA). The interface is primarily used to connect a video source to a display device such as a computer monitor, though it can also be used to carry audio, USB, and other forms of data. 4
USB 2.0 Type-B ports quantity 4
Console ports HDMI, PS/2, USB A
Console USB ports quantity 2
USB hub
USB connector type The type of USB connector/port that this product has. USB Type-A, USB Type-B
Headphone outputs Number of sockets /ports where headphones are connected. 3
Network
Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable.
Performance
HD type Type of supported High Definition (e.g. Full HD, 4K Ultra HD). 4K Ultra HD
Maximum resolution The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. 3840 x 2160 pixels
Design
Rack mounting The type of mounting that can position devices in a shelving system (rack).
Product colour The colour e.g. red, blue, green, black, white. Black
Housing material What the casing of the product is made of. Metal
LED indicators
Push button
Display
Built-in display A display which is part of the product, so you do not need to attach another display.
Power
Power source What is providing power for the product e.g. mains electricity. AC
AC input voltage The voltage of the AC electricity that is inputted into the product. 100 - 240 V
AC input frequency 50 - 60 Hz
Input current 1 A
Sustainability
Sustainability certificates RoHS
Operational conditions
Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. 0 - 50 °C
Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. -20 - 60 °C
Operating relative humidity (H-H) 0 - 80%
Weight & dimensions
Width The measurement or extent of something from side to side. 335 mm
Depth The distance from the front to the back of something. 163.9 mm
Height The measurement of the product from head to foot or from base to top. 65.5 mm
Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. 2.31 kg
More Information
SKU 767069
MPN CS1142DP-AT-U
Brand ATEN
Product Condition Brand New/Unused
Product Use General
Warranty Period 1 Year Warranty
Warranty Contact https://www.aten.com/
