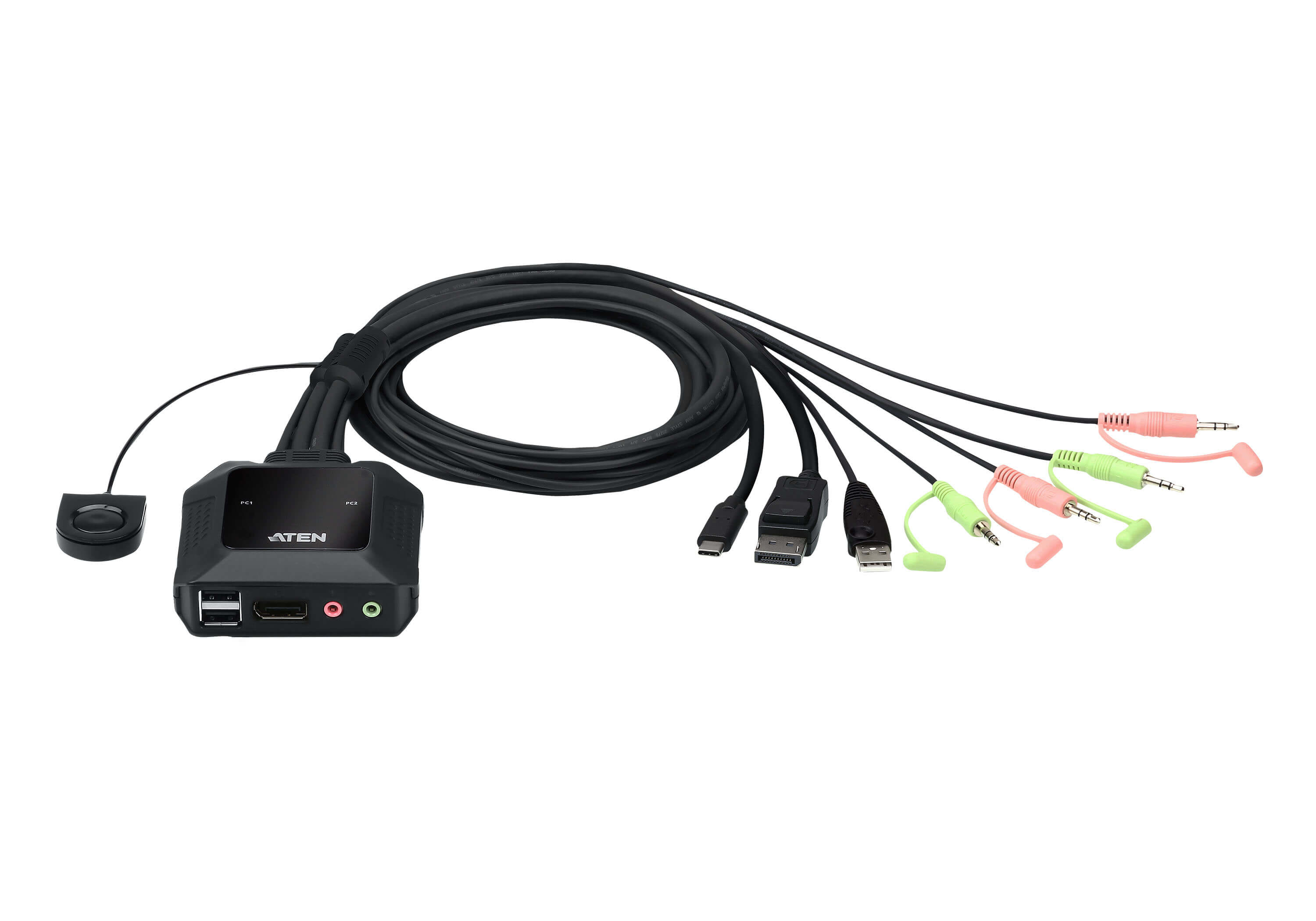

ATEN 2-Port USB-C DisplayPort Hybrid Cable KVM Switch, 4096 x 2160 pixels, 4K Ultra HD, 0.74 W, Black
As an increasingly mobile workforce hot-desks between home and hybrid offices, agility is the key to effective multitasking and remaining engaged in productivity. The compact CS52DP is one of the best choices to meet these hybrid work challenges head on by revamping your workspace with the power of a cable KVM switch and the mobility of USB-C connectivity. Streamline even the most complex workflows by simply pushing the button on the remote port selector to switch between your tasks on one DisplayPort PC and a mobile USB-C device from a DisplayPort and USB console. The DisplayPort-enabled shared screen further assures outstanding 4K audiovisual quality across two computer platforms. Get agile with the CS52DP to jump start your hybrid work productivity and stay ahead of the pack.
Exceptional AV Performance in Vivid 4K
The CS52DP empowers your desktop workflows with 4K DCI audiovisual enhancement by presenting visual content in outstanding precision.
Space-Cost Efficient Desktop Setup
The compact CS52DP enables plug-n-play USB-C connection to a mobile device such as a laptop without going through a docking station, which is a useful, budget-friendly option to expand desktop workspace in a neat and tidy way.
Smooth Cross-Platform Integration
The CS52DP enables the integration of different computer systems (Windows, Mac, Sun, Linux, Android and iOS) that are accessible over one KVM console.
Flexible USB Peripheral Sharing
The console USB ports can be used for plug-n-play connection to compatible USB 2.0 peripheral devices to fulfill data-intensive desktop work requirements.
Exceptional AV Performance in Vivid 4K
The CS52DP empowers your desktop workflows with 4K DCI audiovisual enhancement by presenting visual content in outstanding precision.
Space-Cost Efficient Desktop Setup
The compact CS52DP enables plug-n-play USB-C connection to a mobile device such as a laptop without going through a docking station, which is a useful, budget-friendly option to expand desktop workspace in a neat and tidy way.
Smooth Cross-Platform Integration
The CS52DP enables the integration of different computer systems (Windows, Mac, Sun, Linux, Android and iOS) that are accessible over one KVM console.
Flexible USB Peripheral Sharing
The console USB ports can be used for plug-n-play connection to compatible USB 2.0 peripheral devices to fulfill data-intensive desktop work requirements.
| Ports & interfaces | |
| Number of computers controlled The amount of computers controlled by this device. | 2 |
| Keyboard port type The type of socket in the device for connecting a keyboard e.g. USB. | USB |
| Mouse port type | USB |
| Video port type The type of socket in the device for connecting a video e.g. SCART. | DisplayPort |
| HDCP High-bandwidth Digital Content Protection (HDCP) is a form of digital copy protection to prevent copying of digital audio and video content as it travels across connections. |
 |
| DisplayPorts quantity Number of DisplayPorts. A DisplayPort is a digital display interface developed by the Video Electronics Standards Association (VESA). The interface is primarily used to connect a video source to a display device such as a computer monitor, though it can also be used to carry audio, USB, and other forms of data. | 1 |
| DisplayPort version | 1.2 |
| Console ports | 3.5mm headphone, 3.5mm mic, DisplayPort |
| Console USB ports quantity | 2 |
| USB connector type The type of USB connector/port that this product has. | USB Type-A, USB Type-C |
| Headphone outputs Number of sockets /ports where headphones are connected. | 2 |
| Number of microphone inputs | 2 |
| Performance | |
| HD type Type of supported High Definition (e.g. Full HD, 4K Ultra HD). | 4K Ultra HD |
| Maximum resolution The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. | 4096 x 2160 pixels |
| Hot-Plug support Device has hot-plug capability, which means that user can replace system components without shutting down the system. |
|
| Design | |
| Rack mounting The type of mounting that can position devices in a shelving system (rack). |
 |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Housing material What the casing of the product is made of. | Plastic |
| Cable length How long the cable is. | 1.2 m |
| Remote switch cable length | 1.8 m |
| LED indicators |
|
| Display | |
| Built-in display A display which is part of the product, so you do not need to attach another display. |
|
| Power | |
| Power source What is providing power for the product e.g. mains electricity. | USB |
| Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. | 0.74 W |
| System requirements | |
| Windows operating systems supported Windows vesions wich can be used with the device. |
|
| Linux operating systems supported 8 RT. Linux (9.4, 9.5), Red Hat Enterprise Linux 5.0 (supported with a pre-built package); SUSE Linux (10.3, 11.0, 11, 11.1, 11.2), Fedora (9, 9.0, 10, 10.0, 11.0, 11, 12, 12.0), Ubuntu (8.04, 8.04.1, 8.04.2, 8.10, 9.04, 9.10, 10.04), Debian (5.0, 5.0.1, 5.0.2, 5.0.3) |
|
| Mac operating systems supported Mac operating systems e.g. OS X can be used with the device. |
|
| Other operating systems supported | Android, iOS |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 50 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 84.2 mm |
| Depth The distance from the front to the back of something. | 83.4 mm |
| Height The measurement of the product from head to foot or from base to top. | 30.4 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 303 g |
| Packaging data | |
| Package width The distance from one side of the packaging to the other. | 55 mm |
| Package depth The distance from the front to the back of the packaging. | 155 mm |
| Package height The distance from the top to the bottom of the packaging. | 223 mm |
| Package volume | 1897.2287222 cm³ |
| Package weight Weight of the packaged product. | 407 g |
| Logistics data | |
| Master (outer) case net weight | 6.06 kg |
| Master (outer) case width | 328 mm |
| Master (outer) case length | 389 mm |
| Master (outer) case height | 330 mm |
| Master (outer) case gross weight | 8.49 kg |
| Master (outer) case volume | 42107.1508942 cm³ |
| Country of origin Country where the device is made. Aka Country of manufacture (COM). | Taiwan |
| SKU | 689248 |
| MPN | CS52DP-AT |
| Brand | ATEN |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.aten.com/ |
